30HW (2012)
REPAIR KIT 1

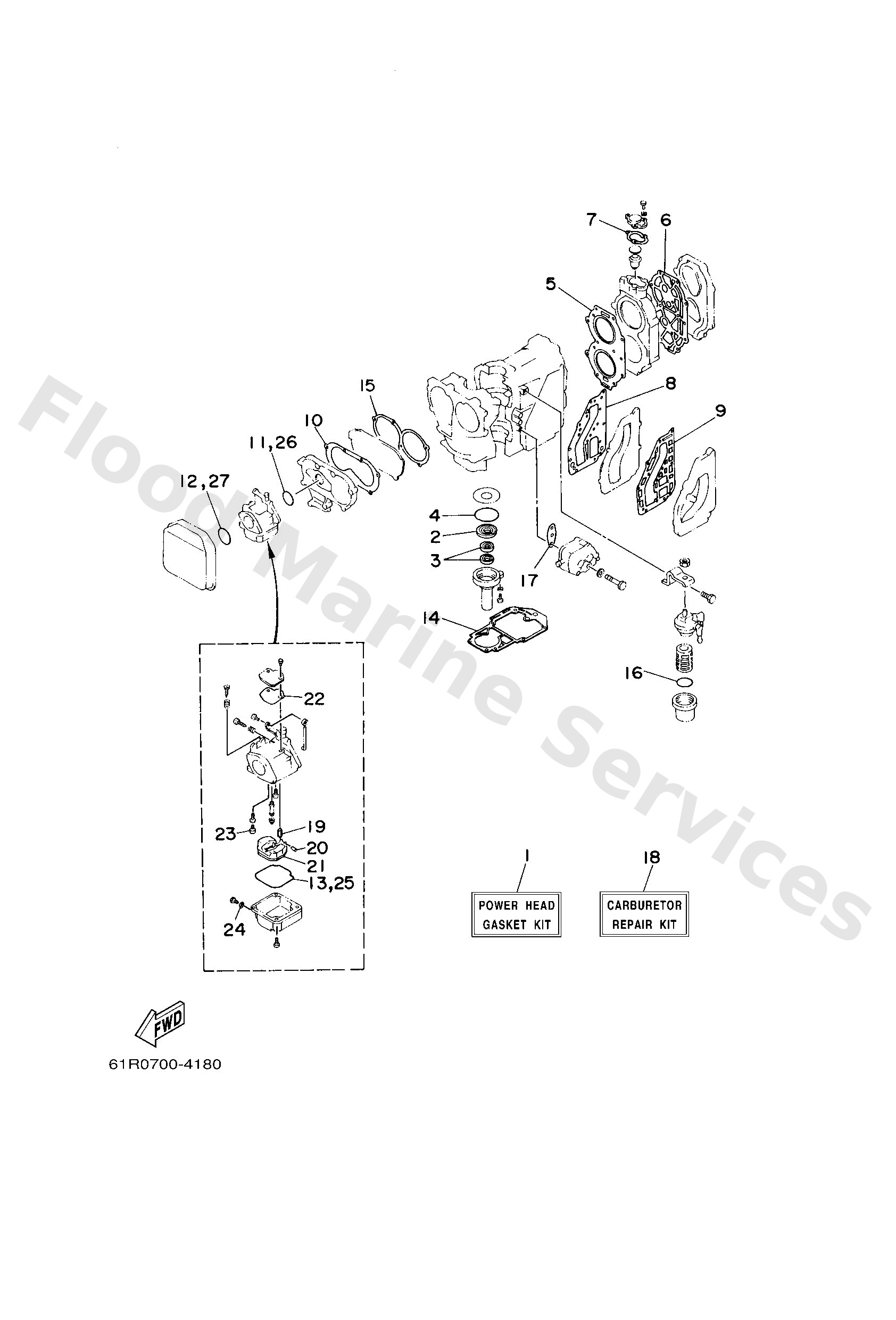

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
69PW000100
Power head gasket kit
Loading…
↗
2
9310225008
Oil seal
Loading…
↗
3
9310116001
Oil seal
Loading…
↗
4
9321058M21
O-ring (683)
Loading…
↗
5
61N11181A2
Gasket, cylinder head 1
Loading…
↗
6
61T11193A1
Gasket, head cover 1
Loading…
↗
7
65512414A1
Gasket, cover
Loading…
↗
8
6K841122A1
Gasket, exhaust inner cover
Loading…
↗
9
6K841124A1
Gasket, exhaust outer cover
Loading…
↗
10
64813645A0
Gasket, manifold 1
Loading…
↗
11
61N1419800
Gasket
Loading…
↗
12
9321040659
O-ring(36y)
Loading…
↗
13
6L21438400
Gasket, float chamber
Loading…
↗
14
68945113A1
Gasket, upper casing
Loading…
↗
15
64813621A1
Gasket, valve seat
Loading…
↗
16
9321032738
O-ring(1wg)
Loading…
↗
17
65024431A0
Gasket,fuel pump
Loading…
↗
18
61NW009300
Carburetor repair kit
Loading…
↗
19
61N1439200
Valve, needle
Loading…
↗
20
6E51438601
Pin, float
Loading…
↗
21
6L21438500
Float
Loading…
↗
22
6L21439900
Gasket
Loading…
↗
23
50M1435500
Plug
Loading…
↗
24
6L21439800
Gasket
Loading…
↗
