40VMHO (2006)
REPAIR KIT 1

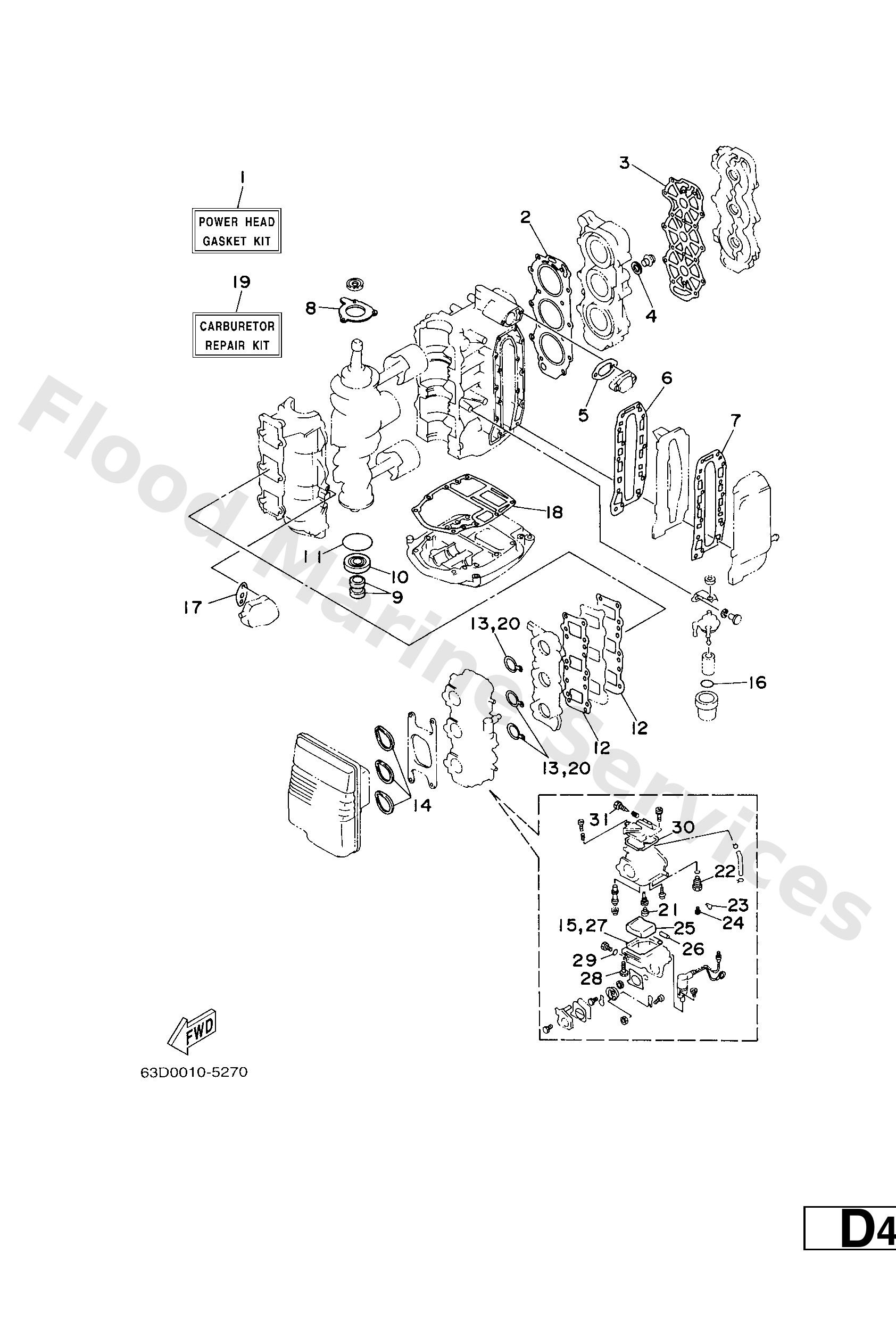

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
63DW000100
Power head gasket kit
Loading…
↗
2
63D11181A1
Gasket, cylinder head 1
Loading…
↗
3
63D11193A0
Gasket, head cover 1
Loading…
↗
4
9043014115
Gasket (663)
Loading…
↗
5
6J812414A0
Gasket, cover
Loading…
↗
6
6H441112A0
Gasket, exhaust inner cover
Loading…
↗
7
6H441114A0
Gasket, exhaust outer cover
Loading…
↗
8
6H415369A1
Gasket, oil seal housing
Loading…
↗
9
9310416M01
Oil seal(6a8)
Loading…
↗
10
9310225M28
Oil seal(6h4)
Loading…
↗
11
9321058M21
O-ring (683)
Loading…
↗
12
6H413621A1
Gasket, valve seat
Loading…
↗
13
6H41419801
Gasket
Loading…
↗
14
6H31445701
Seal
Loading…
↗
15
6H41498400
Gasket, float chamber
Loading…
↗
16
9321032738
O-ring(1wg)
Loading…
↗
17
65024431A0
Gasket,fuel pump
Loading…
↗
18
6H445113A0
Gasket, upper casing
Loading…
↗
19
6H4W009303
Carburetor repair kit
Loading…
↗
21
6761496600
Rubber cap
Loading…
↗
22
6H41459001
Needle valve assembly
Loading…
↗
23
6631415900
Clip
Loading…
↗
24
6761418600
Pin, valve
Loading…
↗
25
6H41498501
Float
Loading…
↗
26
6H41454800
Pin, float arm
Loading…
↗
28
9798004114
Screw, pan head(ga5)
Loading…
↗
29
9321004230
O-ring (371)
Loading…
↗
30
6H41414700
O-ring
Loading…
↗
31
6921492300
Screw, adjusting
Loading…
↗
