40XMH (2012)
REPAIR KIT 1

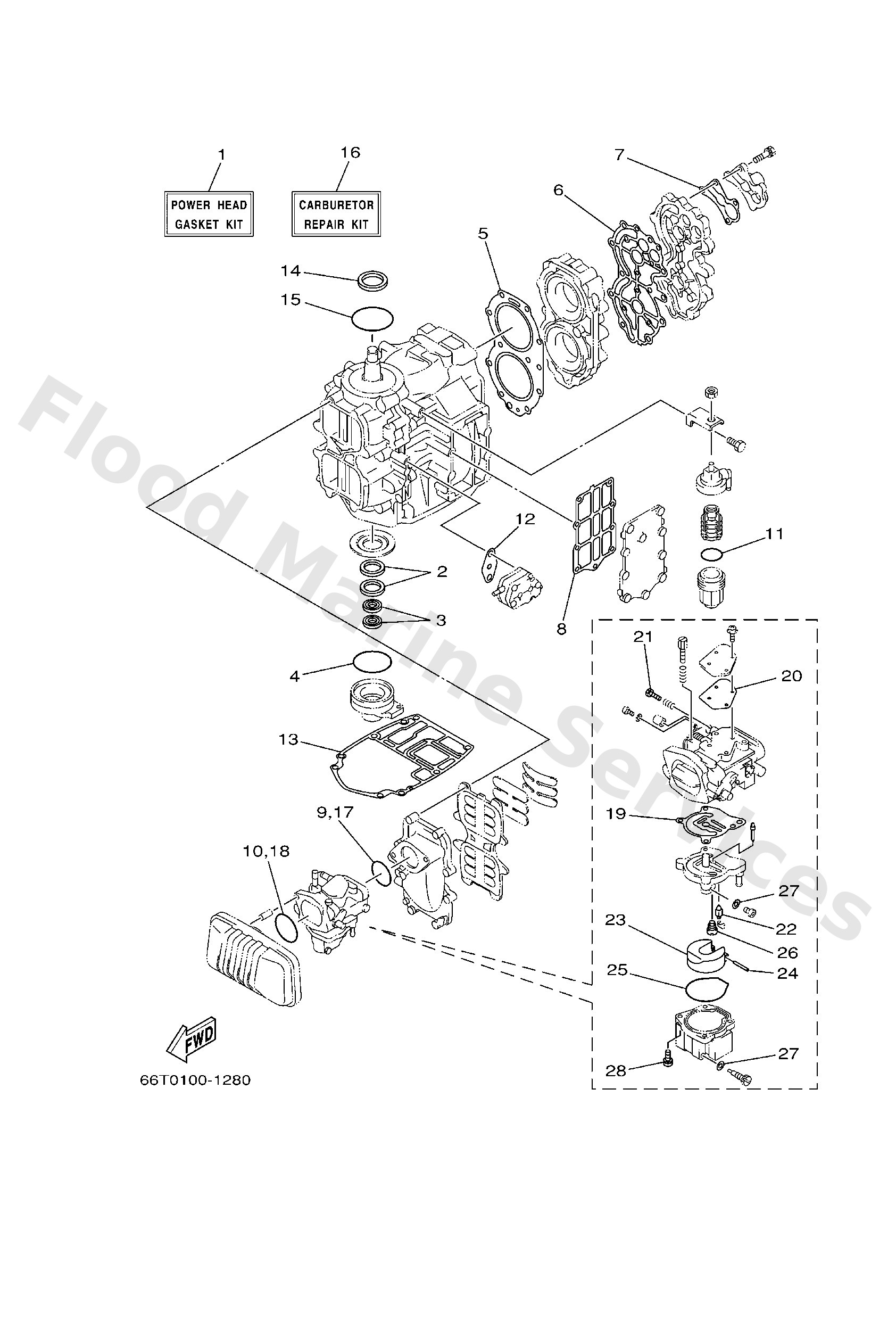

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
66TW000101
Power head gasket kit
Loading…
↗
2
9310230M56
Oil seal
Loading…
↗
3
9310116001
Oil seal
Loading…
↗
4
9321065M50
O-ring
Loading…
↗
5
66T11181A3
Gasket, cylinder head 1
Loading…
↗
6
66T11193A3
Gasket, head cover 1
Loading…
↗
7
67612414A1
Gasket, cover
Loading…
↗
8
66T41114A0
Gasket, exhaust outer cover
Loading…
↗
9
9321046M16
O-ring (688)
Loading…
↗
10
9321054M54
O-ring (6g1)
Loading…
↗
11
9321032738
O-ring(1wg)
Loading…
↗
12
65024431A0
Gasket,fuel pump
Loading…
↗
13
66T45113A0
Gasket, upper casing
Loading…
↗
14
9310235008
Oil seal
Loading…
↗
15
9321075M51
O-ring (6f5)
Loading…
↗
16
66TW009301
Carburetor repair kit
Loading…
↗
19
66T1438401
Gasket, float chamber
Loading…
↗
20
66T1453601
Gasket
Loading…
↗
21
6E51432303
Screw, air adjusting
Loading…
↗
22
6E51454600
Valve, needle
Loading…
↗
23
6E51438502
Float
Loading…
↗
24
6E51438602
Pin, float
Loading…
↗
25
66T1498400
Gasket, float chamber
Loading…
↗
26
66T1499200
Plug
Loading…
↗
27
66T1495900
Gasket
Loading…
↗
28
9798005125
Screw, panhead (a93)
Loading…
↗
