40XW (2003)
REPAIR KIT 1

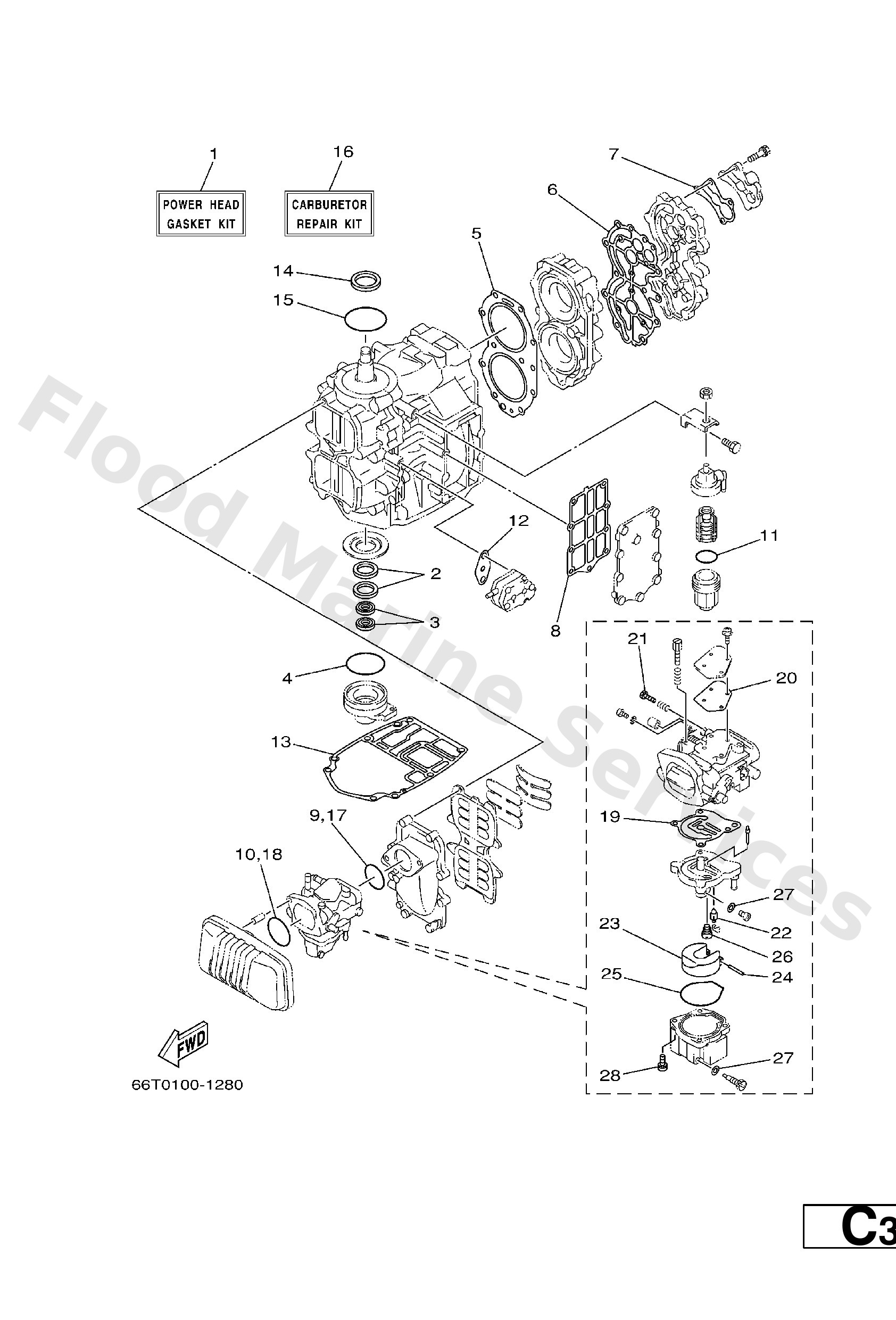

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
66T−W0001−01
Power head gasket kit
Loading…
↗
2
93102−30M56
Oil seal
Loading…
↗
3
93101−16001
Oil seal
Loading…
↗
4
93210−65M50
O-ring
Loading…
↗
5
66T−11181−A2
Gasket, cylinder head 1
Loading…
↗
6
66T−11193−A2
Gasket, head cover 1
Loading…
↗
7
676−12414−A1
Gasket, cover
Loading…
↗
8
66T−41114−A0
Gasket, exhaust outer cover
Loading…
↗
9
93210−46M16
O-ring (688)
Loading…
↗
10
93210−54M54
O-ring (6g1)
Loading…
↗
11
93210−32738
O-ring(1wg)
Loading…
↗
12
650−24431−A0
Gasket,fuel pump
Loading…
↗
13
66T−45113−A0
Gasket, upper casing
Loading…
↗
14
93102−35008
Oil seal
Loading…
↗
15
93210−75M51
O-ring (6f5)
Loading…
↗
16
66T−W0093−01
Carburetor repair kit
Loading…
↗
19
66T−14384−01
Gasket, float chamber
Loading…
↗
20
66T−14536−00
Gasket
Loading…
↗
21
6E5−14323−03
Screw, air adjusting
Loading…
↗
22
6E5−14546−00
Valve, needle
Loading…
↗
23
6E5−14385−02
Float
Loading…
↗
24
6E5−14386−02
Pin, float
Loading…
↗
25
66T−14984−00
Gasket, float chamber
Loading…
↗
26
66T−14992−00
Plug
Loading…
↗
27
66T−14959−00
Gasket
Loading…
↗
28
97980−05125
Screw, panhead (a93)
