50GETO (2007)
REPAIR KIT 1

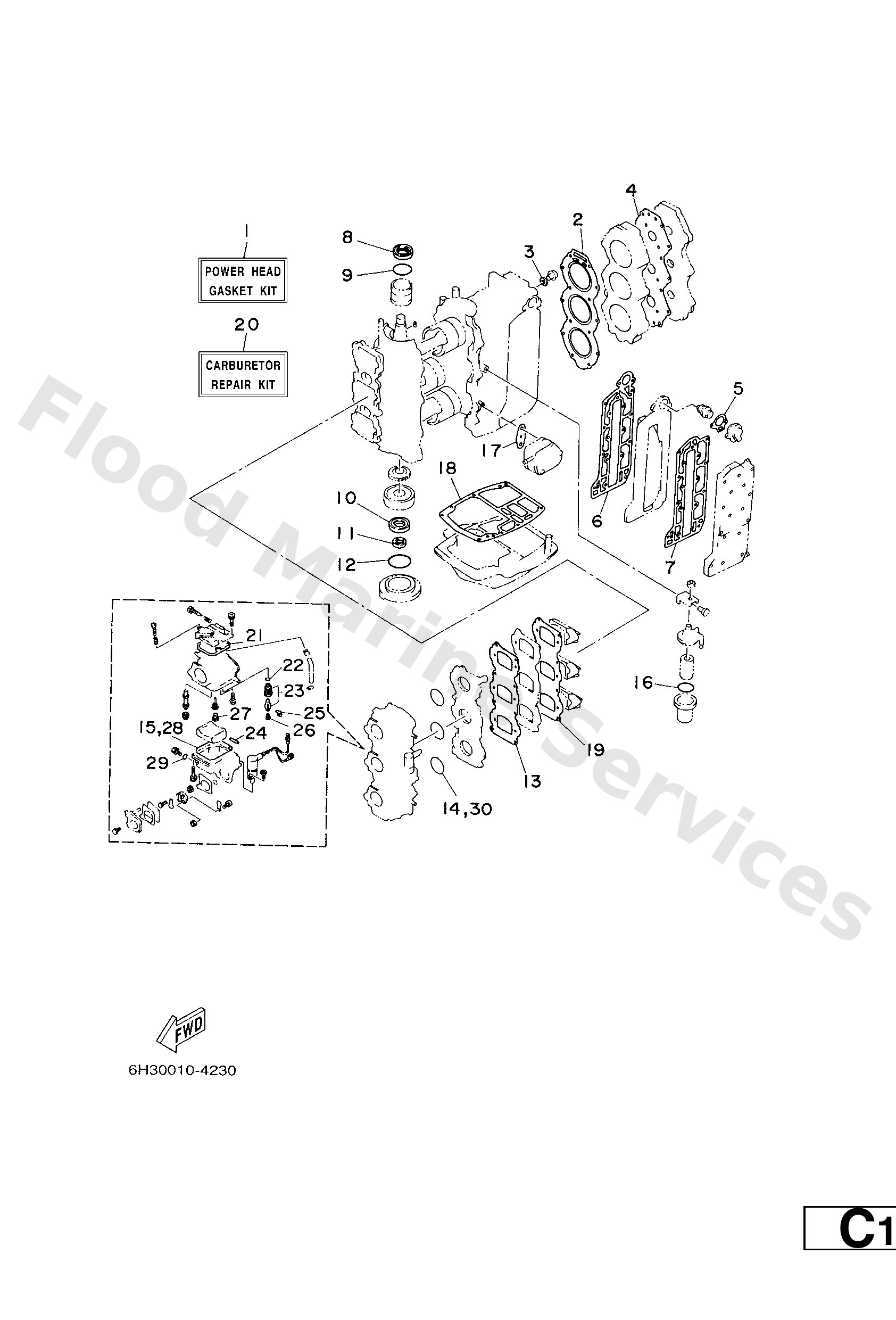

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
62FW000101
Power Head Gasket Kit
Loading…
↗
1
6H3W000102
AUTO CHOKE
Power head gasket kit
Loading…
↗
2
6H311181A1
Gasket, cylinder head 1
Loading…
↗
3
9043014115
Gasket (663)
Loading…
↗
4
6H311193A1
Gasket, head cover 1
Loading…
↗
5
6H312414A1
Gasket, cover
Loading…
↗
6
6H341112A0
Gasket, exhaust inner cover
Loading…
↗
7
6H341114A0
Gasket, exhaust outer cover
Loading…
↗
8
9310236M24
Oil seal(52w)
Loading…
↗
9
9321046M16
O-ring (688)
Loading…
↗
10
9310230M23
Oil seal (6h3)
Loading…
↗
11
9310618M01
Oil seal (6h3)
Loading…
↗
12
9321065M50
O-ring
Loading…
↗
13
6H313621A1
Gasket, valve seat
Loading…
↗
14
9321039ME4
O-ring(6h2)
Loading…
↗
14
6H41419801
Gasket
Loading…
↗
15
6H41498400
Gasket, float chamber
Loading…
↗
16
9321032738
O-ring(1wg)
Loading…
↗
17
65024431A0
Gasket,fuel pump
Loading…
↗
18
6H345113A0
Gasket, upper casing
Loading…
↗
19
6H313622A1
Gasket, valve seat
Loading…
↗
20
6H2W009310
AUTO CHOKE
Carburetor repair kit
Loading…
↗
20
62FW009300
Carburetor Repair Kit
Loading…
↗
21
6H41414700
O-ring
Loading…
↗
22
9321004228
O-ring (371)
Loading…
↗
23
6H41459001
Needle valve assembly
Loading…
↗
23
6H31459001
Needle valve assembly
Loading…
↗
24
6H41454800
Pin, float arm
Loading…
↗
25
6631415900
Clip
Loading…
↗
26
6761418600
Pin, valve
Loading…
↗
27
6761496600
Rubber cap
Loading…
↗
29
9321004230
O-ring (371)
Loading…
↗
