75AED (2007)
REPAIR KIT 1

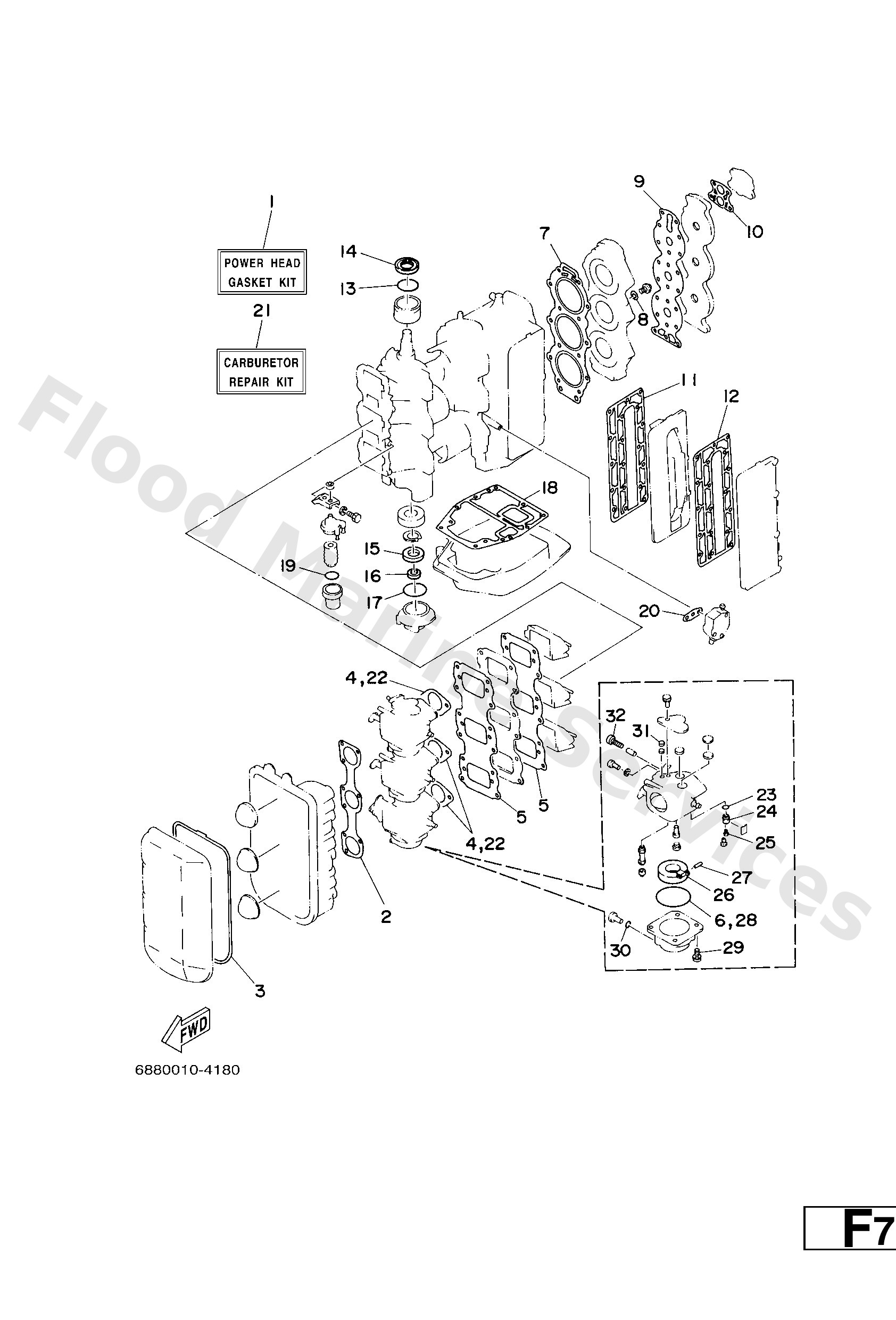

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
688W000102
Power head gasket kit
Loading…
↗
2
68814483A0
Gasket
Loading…
↗
3
6881441601
Gasket, air cleaner
Loading…
↗
4
68814198A2
Gasket
Loading…
↗
5
68813621A1
Gasket, valve seat
Loading…
↗
6
6761498400
Gasket, float chamber
Loading…
↗
7
68811181A1
Gasket, cylinder head 1
Loading…
↗
8
9043014115
Gasket (663)
Loading…
↗
9
68811193A1
Gasket, head cover 1
Loading…
↗
10
68812414A1
Gasket, cover
Loading…
↗
11
68841112A0
Gasket, exhaust inner cover
Loading…
↗
12
68841114A0
Gasket, exhaust outer cover
Loading…
↗
13
9321046M16
O-ring (688)
Loading…
↗
14
9310236M02
Oil seal(52w)
Loading…
↗
15
9310230M05
Oil seal (688)
Loading…
↗
16
9310420M02
Oil seal (688)
Loading…
↗
17
9321062269
Ring, o(663)
Loading…
↗
18
68845113A0
Gasket, upper casing
Loading…
↗
19
9321032738
O-ring(1wg)
Loading…
↗
20
65024431A0
Gasket,fuel pump
Loading…
↗
21
6H1W009301
Carburetor repair kit
Loading…
↗
23
9321004228
O-ring (371)
Loading…
↗
24
6921459001
Needle valve assembly
Loading…
↗
25
6761418600
Pin, valve
Loading…
↗
26
6761498501
Float comp
Loading…
↗
27
6881454800
Pin, arm
Loading…
↗
29
9798004114
Screw, pan head(ga5)
Loading…
↗
30
9321004230
O-ring (371)
Loading…
↗
31
6631412600
Packing
Loading…
↗
32
6921492300
Screw, adjusting
Loading…
↗
