75CETO (2003)
REPAIR KIT 1

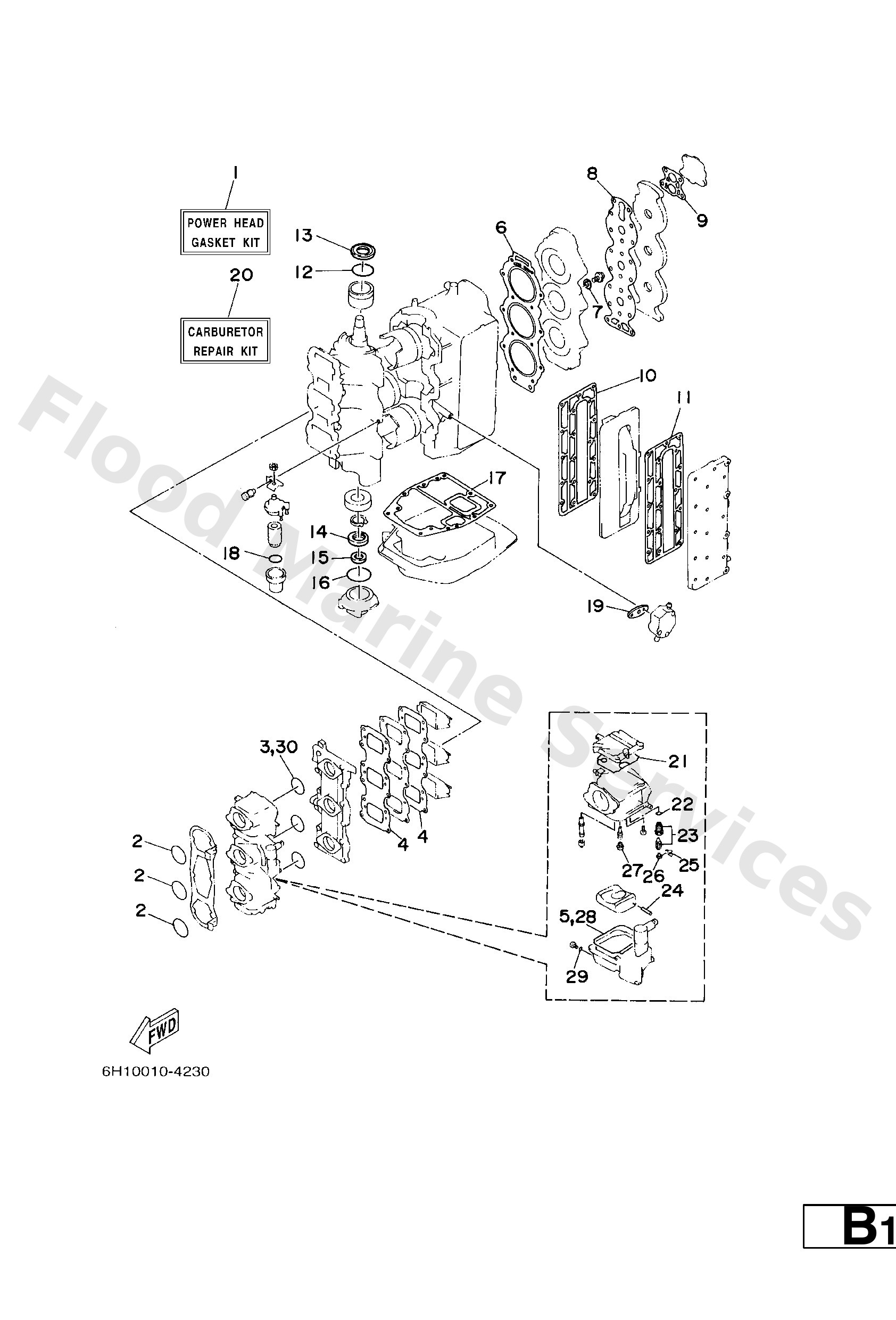

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6H1--W0001--02
Power head gasket kit
Loading…
↗
2
93210--46044
O-ring
Loading…
↗
3
93210--39ME4
O-ring(6h2)
Loading…
↗
4
688--13621--A1
Gasket, valve seat
Loading…
↗
5
6H4--14984--00
Gasket, float chamber
Loading…
↗
6
68811181A1
Gasket, cylinder head 1
Loading…
↗
7
90430--14115
Gasket (663)
Loading…
↗
8
688--11193--A1
Gasket, head cover 1
Loading…
↗
9
688--12414--A1
Gasket, cover
Loading…
↗
10
688--41112--A0
Gasket, exhaust inner cover
Loading…
↗
11
688--41114--A0
Gasket, exhaust outer cover
Loading…
↗
12
93210--46M16
O-ring (688)
Loading…
↗
13
93102--36M02
Oil seal(52w)
Loading…
↗
14
93102--30M05
Oil seal (688)
Loading…
↗
15
93104--20M02
Oil seal (688)
Loading…
↗
16
93210--62269
Ring, o(663)
Loading…
↗
17
688--45113--A0
Gasket, upper casing
Loading…
↗
18
93210--32738
O-ring(1wg)
Loading…
↗
19
650--24431--A0
Gasket,fuel pump
Loading…
↗
20
6H1--W0093--10
Carburetor repair kit
Loading…
↗
21
6H4--14147--00
O-ring
Loading…
↗
22
93210--04228
O-ring (371)
Loading…
↗
23
692--14590--01
Needle valve assembly
Loading…
↗
24
6H4--14548--00
Pin, float arm
Loading…
↗
25
663--14159--00
Clip
Loading…
↗
26
676--14186--00
Pin, valve
Loading…
↗
27
676--14966--00
Rubber cap
Loading…
↗
29
93210--04230
O-ring (371)
Loading…
↗
