85AED−TUNA (2003)
REPAIR KIT 1

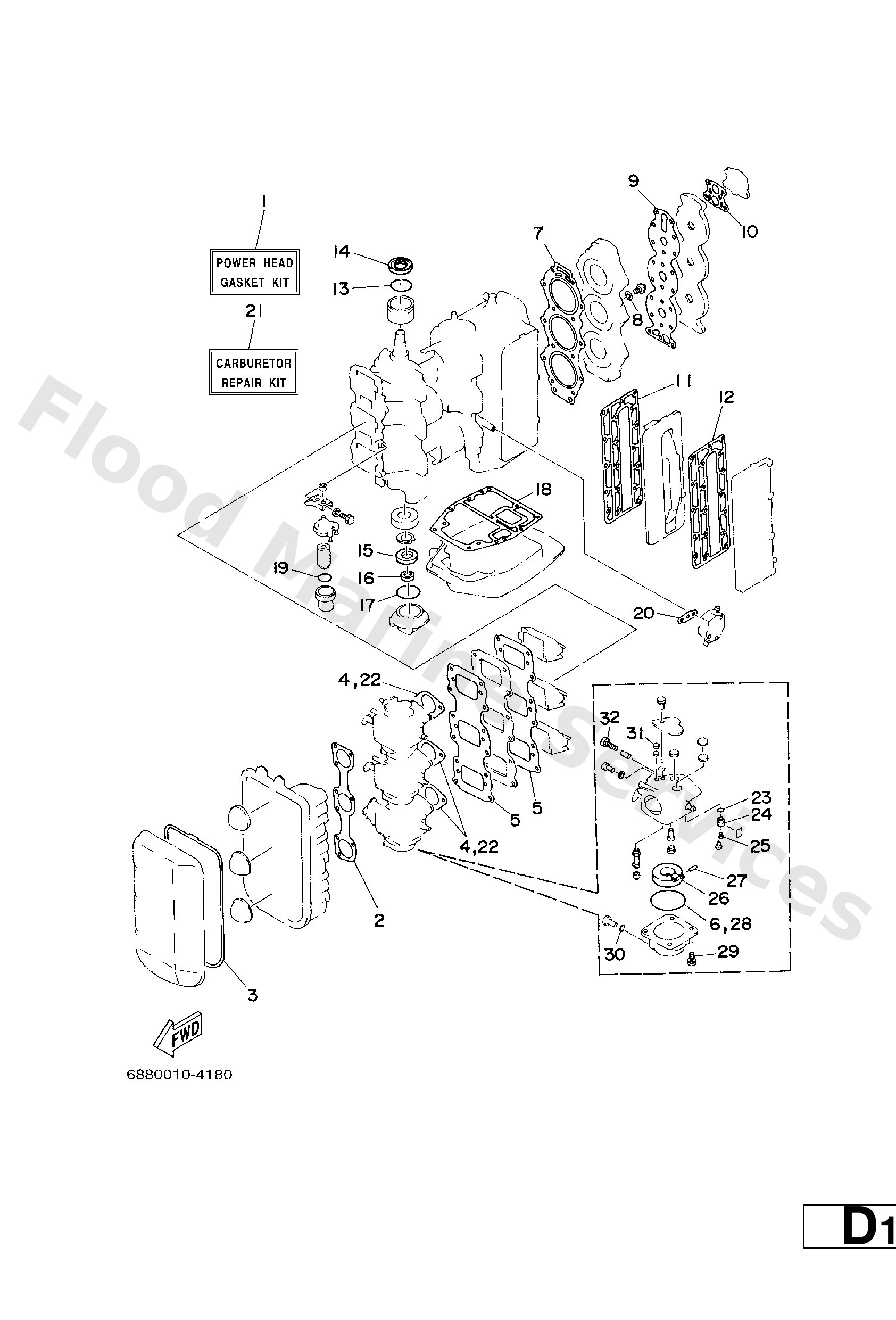

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
688W000102
Power head gasket kit
Loading…
↗
2
68814483A0
Gasket
Loading…
↗
3
6881441601
Gasket, air cleaner
Loading…
↗
4
68814198A2
Gasket
Loading…
↗
5
688--13621--A1
Gasket, valve seat
Loading…
↗
6
6761498400
Gasket, float chamber
Loading…
↗
7
68811181A1
Gasket, cylinder head 1
Loading…
↗
8
90430--14115
Gasket (663)
Loading…
↗
9
688--11193--A1
Gasket, head cover 1
Loading…
↗
10
688--12414--A1
Gasket, cover
Loading…
↗
11
688--41112--A0
Gasket, exhaust inner cover
Loading…
↗
12
688--41114--A0
Gasket, exhaust outer cover
Loading…
↗
13
93210--46M16
O-ring (688)
Loading…
↗
14
93102--36M02
Oil seal(52w)
Loading…
↗
15
93102--30M05
Oil seal (688)
Loading…
↗
16
93104--20M02
Oil seal (688)
Loading…
↗
17
93210--62269
Ring, o(663)
Loading…
↗
18
688--45113--A0
Gasket, upper casing
Loading…
↗
19
93210--32738
O-ring(1wg)
Loading…
↗
20
650--24431--A0
Gasket,fuel pump
Loading…
↗
21
6H1W009301
Carburetor repair kit
Loading…
↗
23
93210--04228
O-ring (371)
Loading…
↗
24
692--14590--01
Needle valve assembly
Loading…
↗
25
676--14186--00
Pin, valve
Loading…
↗
26
6761498501
Float comp
Loading…
↗
27
688--14548--00
Pin, arm
Loading…
↗
29
97980--04114
Screw, pan head(ga5)
Loading…
↗
30
93210--04230
O-ring (371)
Loading…
↗
31
663--14126--00
Packing
Loading…
↗
32
692--14923--00
Screw, adjusting
Loading…
↗
