E60HMHD (2010)
REPAIR KIT 1

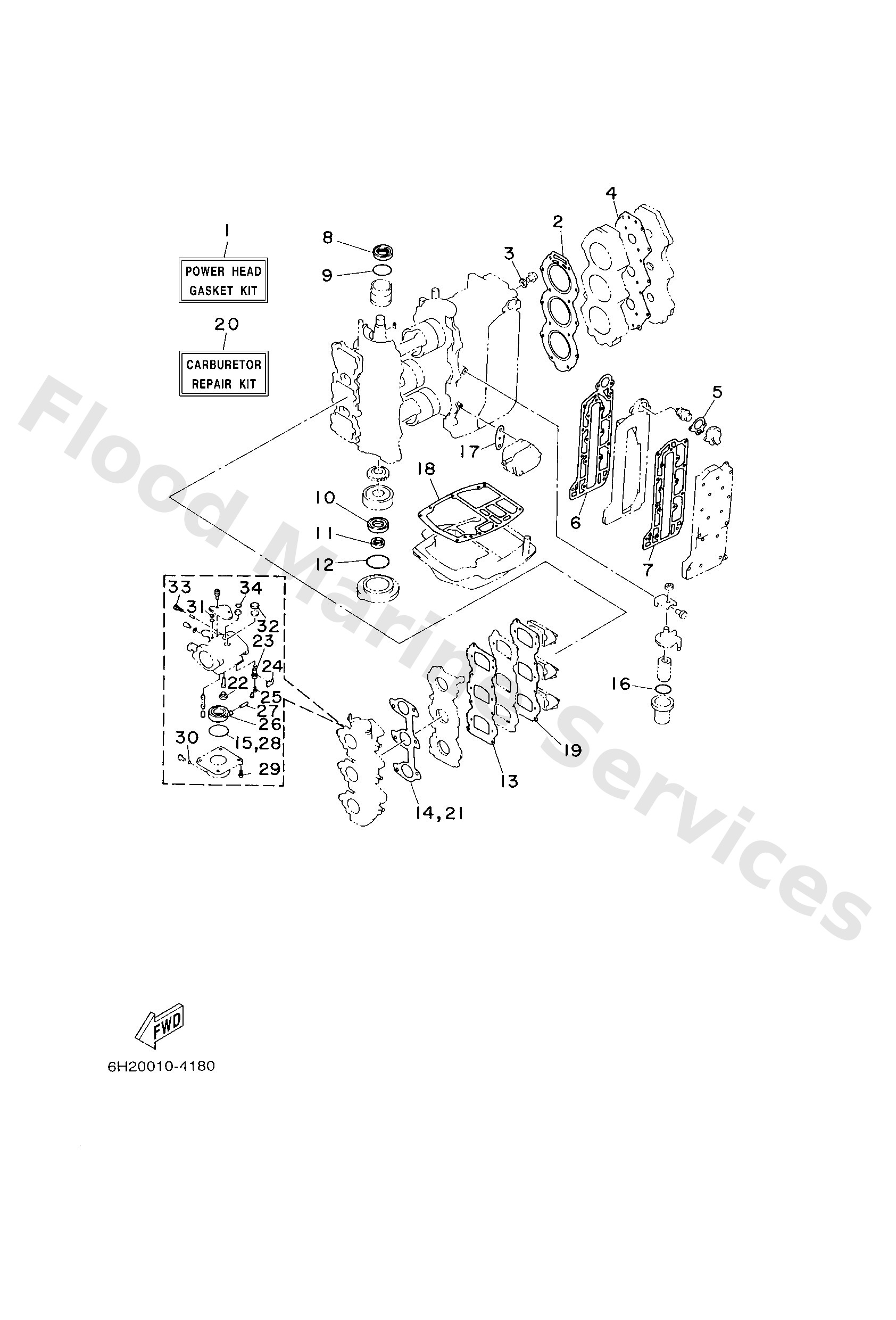

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
69DW000100
Power head gasket kit
Loading…
↗
2
6H311181A2
Gasket, cylinder head 1
Loading…
↗
3
9043014115
Gasket (663)
Loading…
↗
4
6H311193A1
Gasket, head cover 1
Loading…
↗
5
6H312414A1
Gasket, cover
Loading…
↗
6
6H341112A0
Gasket, exhaust inner cover
Loading…
↗
7
6H341114A0
Gasket, exhaust outer cover
Loading…
↗
8
9310236M24
Oil seal(52w)
Loading…
↗
9
9321046M16
O-ring (688)
Loading…
↗
10
9310230009
Oil seal
Loading…
↗
11
9310618001
Oil seal
Loading…
↗
12
9321065M50
O-ring
Loading…
↗
13
6H313621A1
Gasket, valve seat
Loading…
↗
14
6H314198A1
Gasket
Loading…
↗
15
6G11498400
Gasket, float chamber
Loading…
↗
16
61A2456400
O-ring
Loading…
↗
17
65024431A0
Gasket,fuel pump
Loading…
↗
18
6H345113A0
Gasket, upper casing
Loading…
↗
19
6H313622A1
Gasket, valve seat
Loading…
↗
20
6H3W009302
Carburetor repair kit
Loading…
↗
22
6761496600
Rubber cap
Loading…
↗
23
6H31459001
Needle valve assembly
Loading…
↗
24
6631415900
Clip
Loading…
↗
25
6761418600
Pin, valve
Loading…
↗
26
6G11498500
Float comp.
Loading…
↗
27
6881454800
Pin, arm
Loading…
↗
29
9798004114
Screw, pan head(ga5)
Loading…
↗
30
9321004230
O-ring (371)
Loading…
↗
31
6631412600
Packing
Loading…
↗
32
6881412600
Packing
Loading…
↗
33
6921492300
Screw, adjusting
Loading…
↗
34
9321015M52
O-ring (6e9)
Loading…
↗
