EK9.9HMH (2003)
REPAIR KIT 1

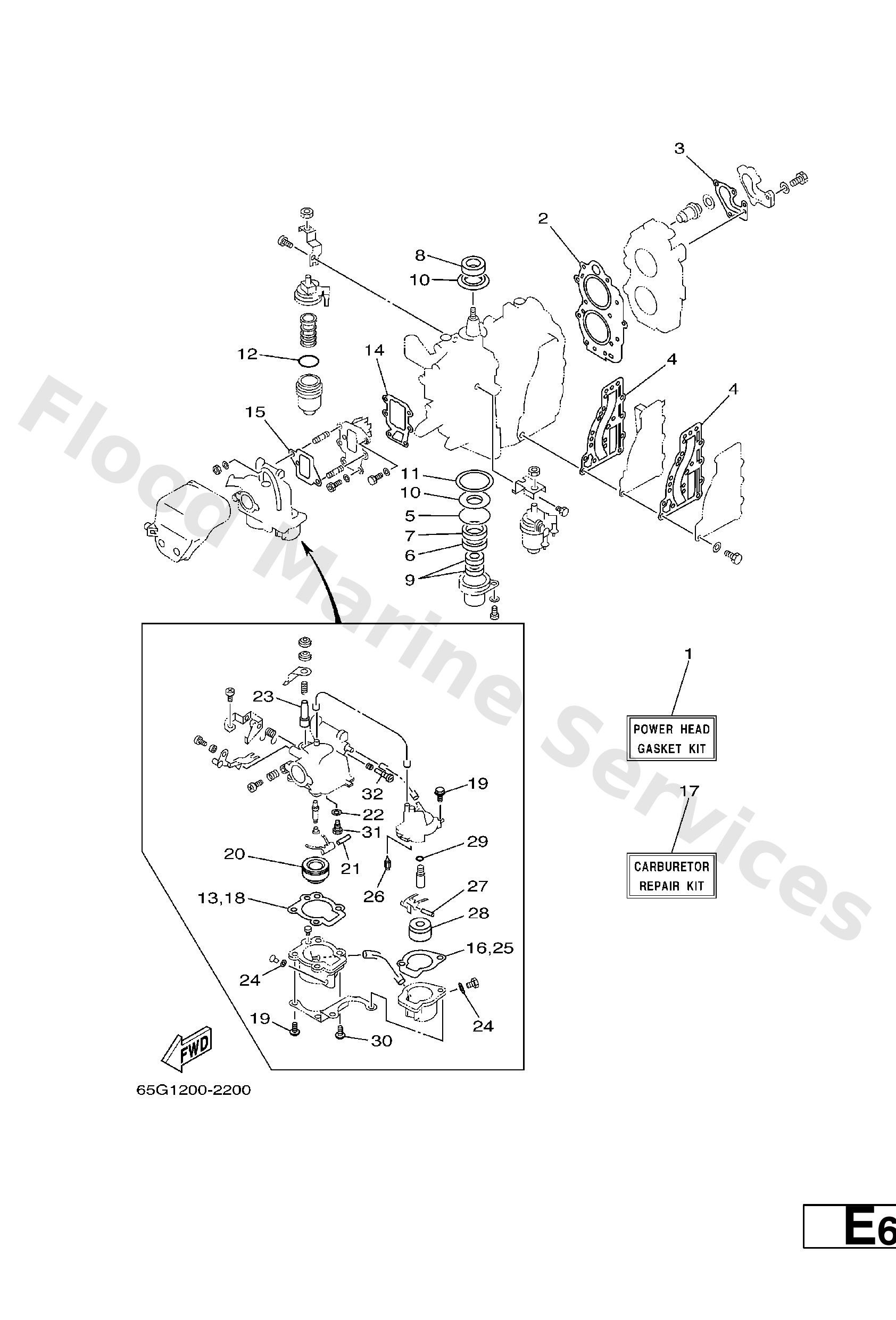

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
65G−W0001−02
20 −
Loading…
↗
2
63V−11181−A1
Gasket, cylinder head 1
Loading…
↗
3
682−12414−A1
Gasket, cover
Loading…
↗
4
63V−41112−A0
Gasket, exhaust inner cover
Loading…
↗
5
93210−46MH8
O−Ring
Loading…
↗
6
93101−25018
Oil seal
Loading…
↗
7
93102−25M48
Oil seal(63v)
Loading…
↗
8
93110−23M00
Oil seal (682)
Loading…
↗
9
93101−13018
Oil seal
Loading…
↗
10
63V−11445−00
Spacer
Loading…
↗
11
90201−46M29
Washer, plate(63v)
Loading…
↗
12
93210−32738
O-ring(1wg)
Loading…
↗
13
650−14384−00
Gasket, float chamber
Loading…
↗
14
682−13621−00
Gasket, valve seat
Loading…
↗
15
677−14198−00
Gasket
Loading…
↗
16
652−14384−00
Gasket, float chamber
Loading…
↗
17
65G−W0093−00
20 −
Loading…
↗
19
97980−04115
5−
Loading…
↗
20
647−14385−00
Float
Loading…
↗
21
626−14386−10
Pin, Float
Loading…
↗
22
626−14398−00
Gasket
Loading…
↗
23
626−14371−00
Plunger, starter
Loading…
↗
24
6L2−14398−00
Gasket
Loading…
↗
26
6F5−14392−00
Valve, needle
Loading…
↗
27
6M7−14386−00
Pin, float
Loading…
↗
28
652−14385−00
Float
Loading…
↗
29
652−14147−00
Ring, o
Loading…
↗
30
97980−04112
Screw, pan head (686)
Loading…
↗
31
677−14390−12
Valve seat assembly
Loading…
↗
32
647−14323−00
Screw, air adjusting
Loading…
↗
