F100DET (2016)
REPAIR KIT 1

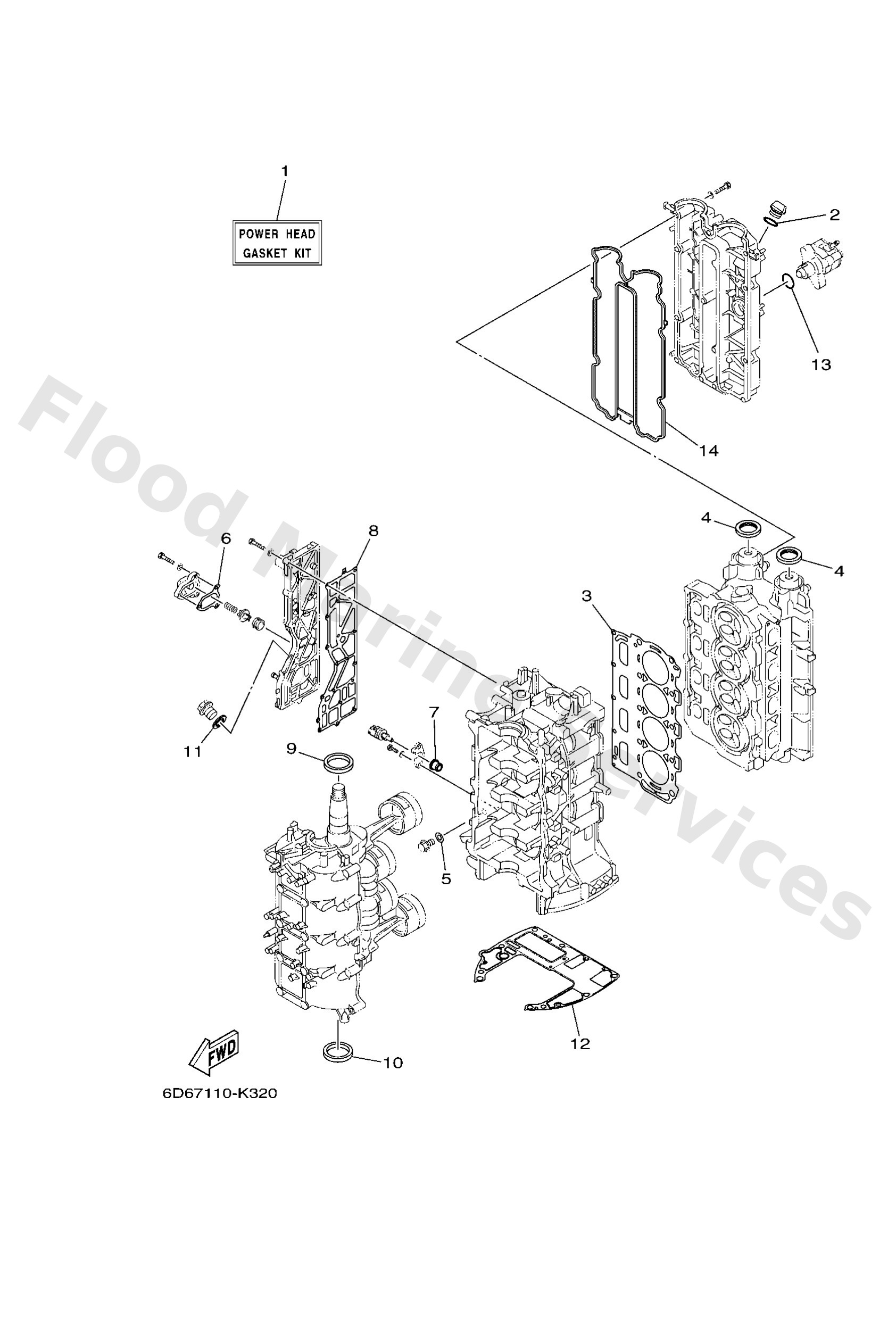

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6D8W000104
Power head gasket kit
Loading…
↗
2
9321024M79
O-ring
Loading…
↗
3
67F1118103
Gasket, cylinder head 1
Loading…
↗
4
9310238008
Oil seal
Loading…
↗
5
9043014115
Gasket (663)
Loading…
↗
6
67F12435A0
Gasket
Loading…
↗
7
68V8575300
Gasket, sender unit
Loading…
↗
8
67F41114A2
Gasket, exhaust outer cover
Loading…
↗
9
9310248017
Oil seal
Loading…
↗
10
9310148001
Oil seal
Loading…
↗
11
90201186F1
Washer, plate (22f)
Loading…
↗
12
68V1135100
Gasket, cylinder
Loading…
↗
13
9321030682
O-ring (371)
Loading…
↗
14
6D81135601
Seal, cylinder 2
Loading…
↗
