F115AET (2009)
REPAIR KIT 1

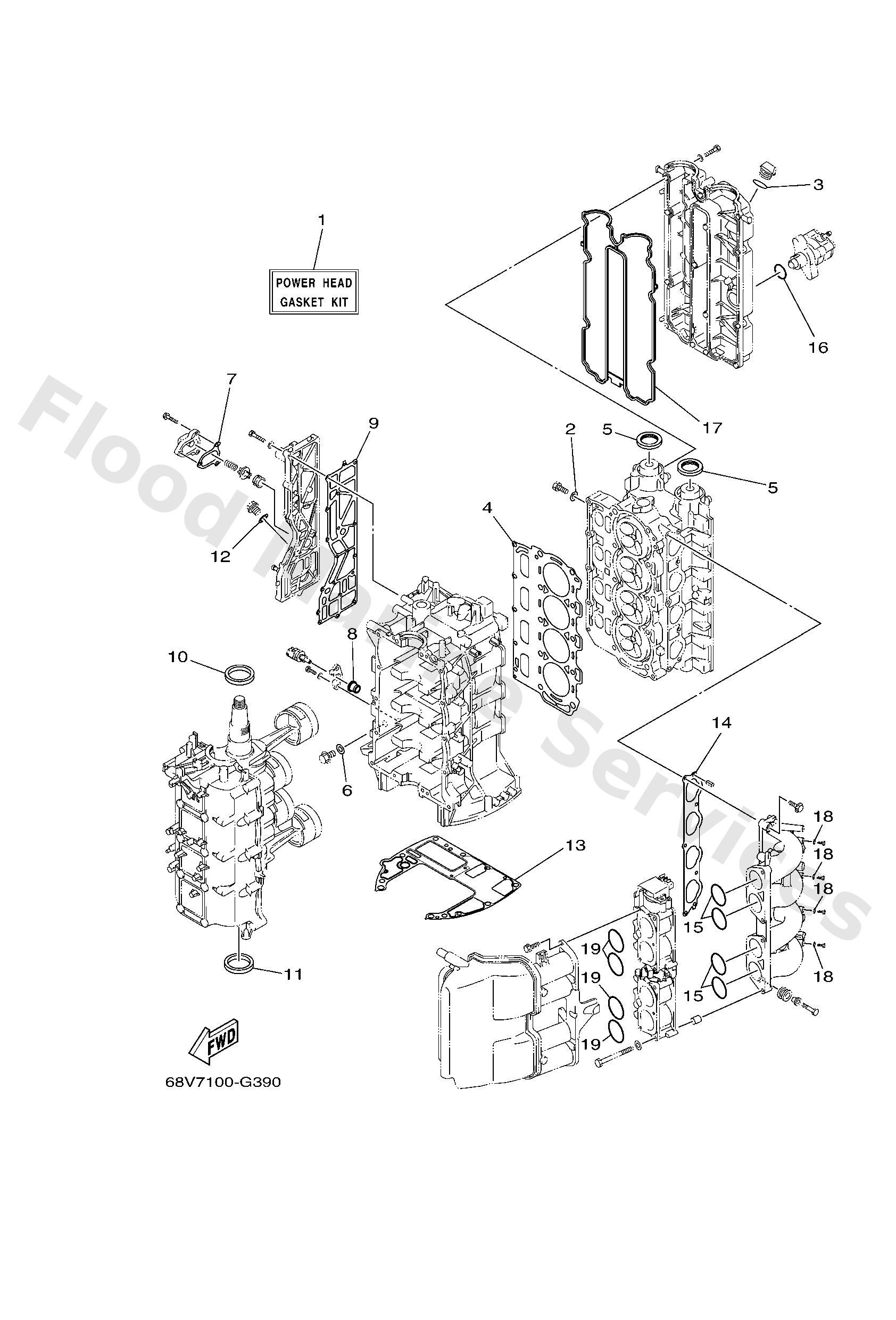

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
68VW000105
Power head gasket kit
Loading…
↗
2
9043008143
Gasket (256-11198-00)
Loading…
↗
3
9321024M79
O-ring
Loading…
↗
4
67F1118103
Gasket, cylinder head 1
Loading…
↗
5
9310238008
Oil seal
Loading…
↗
6
9043014115
Gasket (663)
Loading…
↗
7
67F12435A0
Gasket
Loading…
↗
8
68V8575300
Gasket, sender unit
Loading…
↗
9
67F41114A2
Gasket, exhaust outer cover
Loading…
↗
10
9310248009
Oil seal
Loading…
↗
11
9310148002
Oil seal
Loading…
↗
12
9043018130
Gasket (1j7)
Loading…
↗
13
68V1135100
Gasket, cylinder
Loading…
↗
14
68V1364500
Gasket, manifold 1
Loading…
↗
15
9321048MG8
O-ring
Loading…
↗
16
9321030682
O-ring (371)
Loading…
↗
17
6D81135601
Seal, cylinder 2
Loading…
↗
18
9043006014
Gasket 256113960000
Loading…
↗
19
9321048MJ9
O-ring
Loading…
↗
