F130A (2023)
REPAIR KIT 1

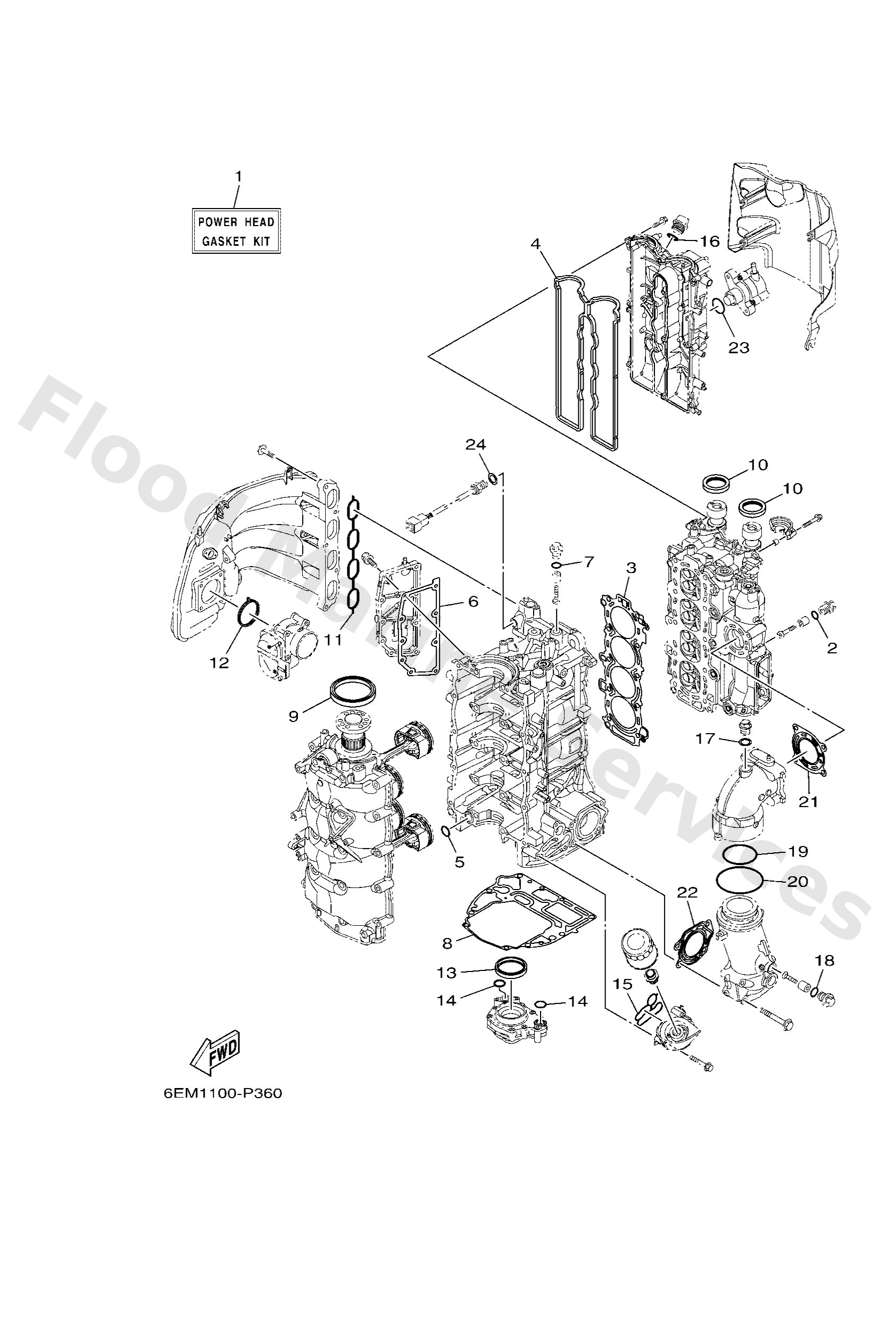

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6EKW000101
Power head gasket kit
Loading…
↗
2
9321013M63
O-ring (6g8)
Loading…
↗
3
6EK1118100
Gasket, cylinder head 1
Loading…
↗
4
6EK1119300
Gasket, head cover 1
Loading…
↗
5
9321019MJ1
O-ring
Loading…
↗
6
6EK1535301
Gasket, drain
Loading…
↗
8
6EK1135100
Gasket, cylinder
Loading…
↗
9
9310285008
Oil seal
Loading…
↗
10
9310238008
Oil seal
Loading…
↗
11
6EK1364500
Gasket, manifold 1
Loading…
↗
12
6EK1364600
Gasket, manifold 2
Loading…
↗
13
69J1135500
Seal, cylinder 1
Loading…
↗
15
6EK1347500
Gasket
Loading…
↗
16
9321024M79
O-ring
Loading…
↗
17
90201186F1
Washer, plate (22f)
Loading…
↗
19
9321064001
O-ring
Loading…
↗
20
9321084001
O-ring
Loading…
↗
21
6EK4111400
Gasket, exhaust outer cover
Loading…
↗
22
6EK4112400
Gasket, exhaust outer cover
Loading…
↗
23
9321030682
O-ring (371)
Loading…
↗
24
9043014115
Gasket (663)
Loading…
↗
