F150FET (2016)
REPAIR KIT 1

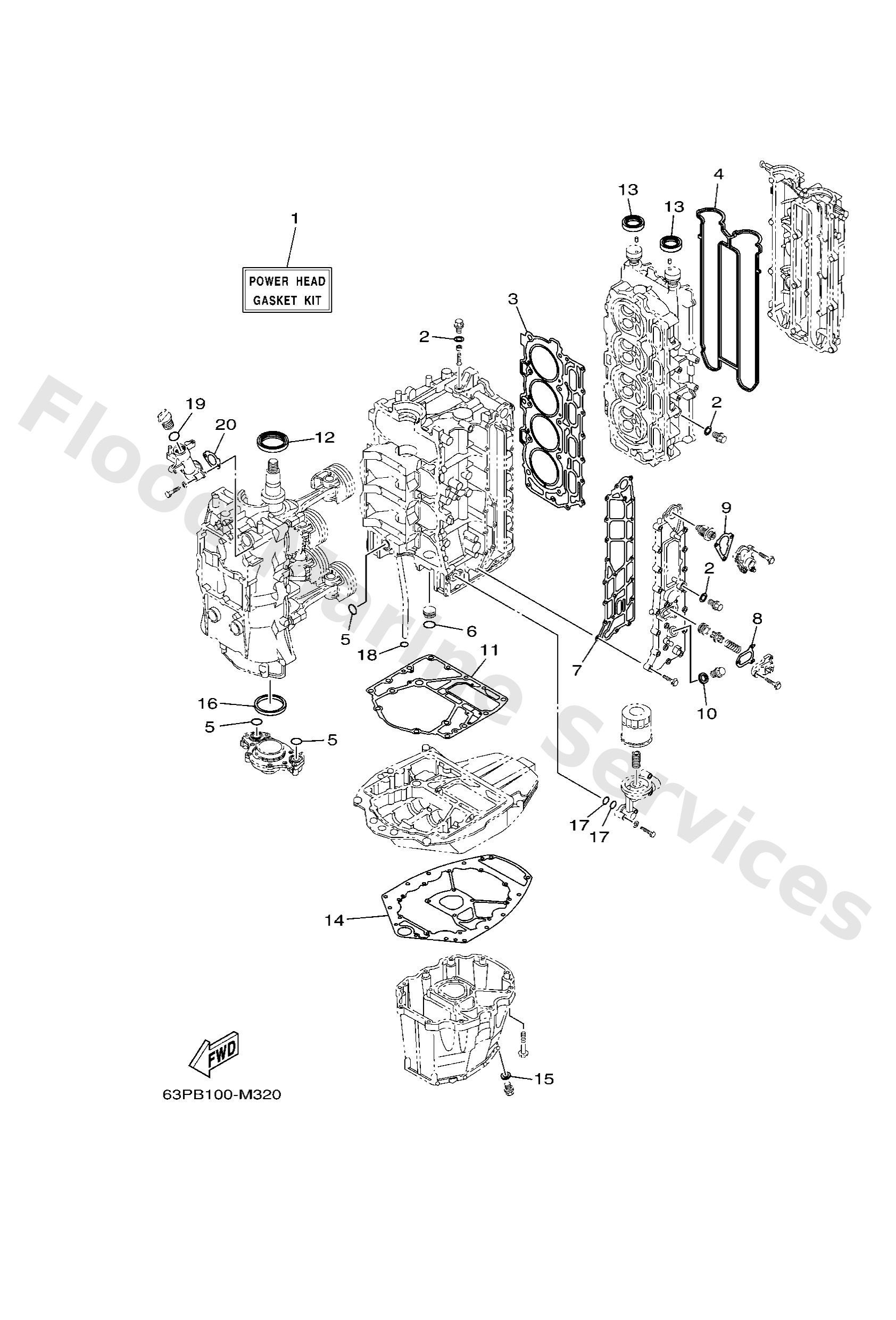

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
63PW000104
Power head gasket kit
Loading…
↗
2
9043014115
Gasket (663)
Loading…
↗
3
63P1118100
Gasket, cylinder head 1
Loading…
↗
4
63P1119300
Gasket, head cover 1
Loading…
↗
5
9321025552
O-ring (22f)
Loading…
↗
6
9321025647
O-ring (7or)
Loading…
↗
7
63P41114A2
Gasket, exhaust outer cover
Loading…
↗
8
67F12435A0
Gasket
Loading…
↗
9
63P1241400
Gasket, cover
Loading…
↗
10
90201186F1
Washer, plate (22f)
Loading…
↗
11
63P1135103
Gasket, cylinder
Loading…
↗
12
9310260004
Oil seal
Loading…
↗
13
9310238008
Oil seal
Loading…
↗
14
63P1531201
Gasket, oil pan
Loading…
↗
15
9043014M09
Gasket
Loading…
↗
16
69J1135500
Seal, cylinder 1
Loading…
↗
17
9321019MJ1
O-ring
Loading…
↗
18
9321019MJ3
O-ring
Loading…
↗
19
9321024M79
O-ring
Loading…
↗
20
63P15364A0
Gasket, oil plug
Loading…
↗
