F2.5AMH (2006)
REPAIR KIT 1

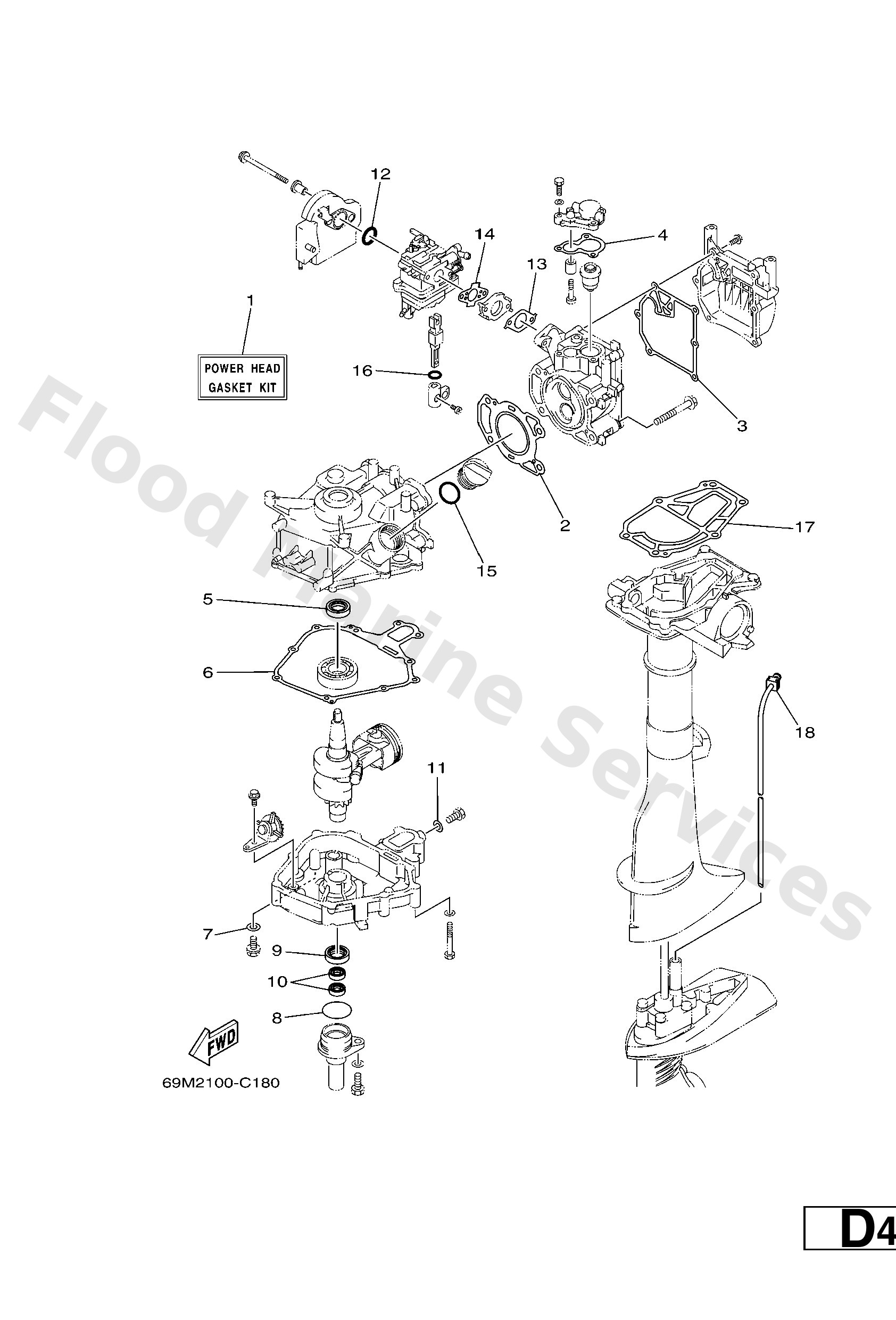

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
69MWE00100
Power head gasket kit
Loading…
↗
2
69M1118100
Gasket, cylinder head 1
Loading…
↗
3
69M11193A0
Gasket, head cover 1
Loading…
↗
4
68DE2414A0
Gasket, cover
Loading…
↗
5
9310220108
Oil seal
Loading…
↗
6
69M11351A0
Gasket, cylinder
Loading…
↗
7
9020108818
Washer
Loading…
↗
8
9321035537
O-ring
Loading…
↗
10
9310209004
Oil seal
Loading…
↗
11
9043008800
Gasket (256-11198-00)
Loading…
↗
12
9321020M65
O-ring
Loading…
↗
13
69ME3645A0
Gasket,manifold 1
Loading…
↗
14
69ME3646A0
Gasket, manifold 2
Loading…
↗
15
9321024M79
O-ring
Loading…
↗
16
9321013M43
O-ring (26h)
Loading…
↗
17
69M45113A0
Gasket, upper casing
Loading…
↗
18
68DG436500
Damper, water seal
Loading…
↗
