F2.5BMH (2017)
REPAIR KIT 1

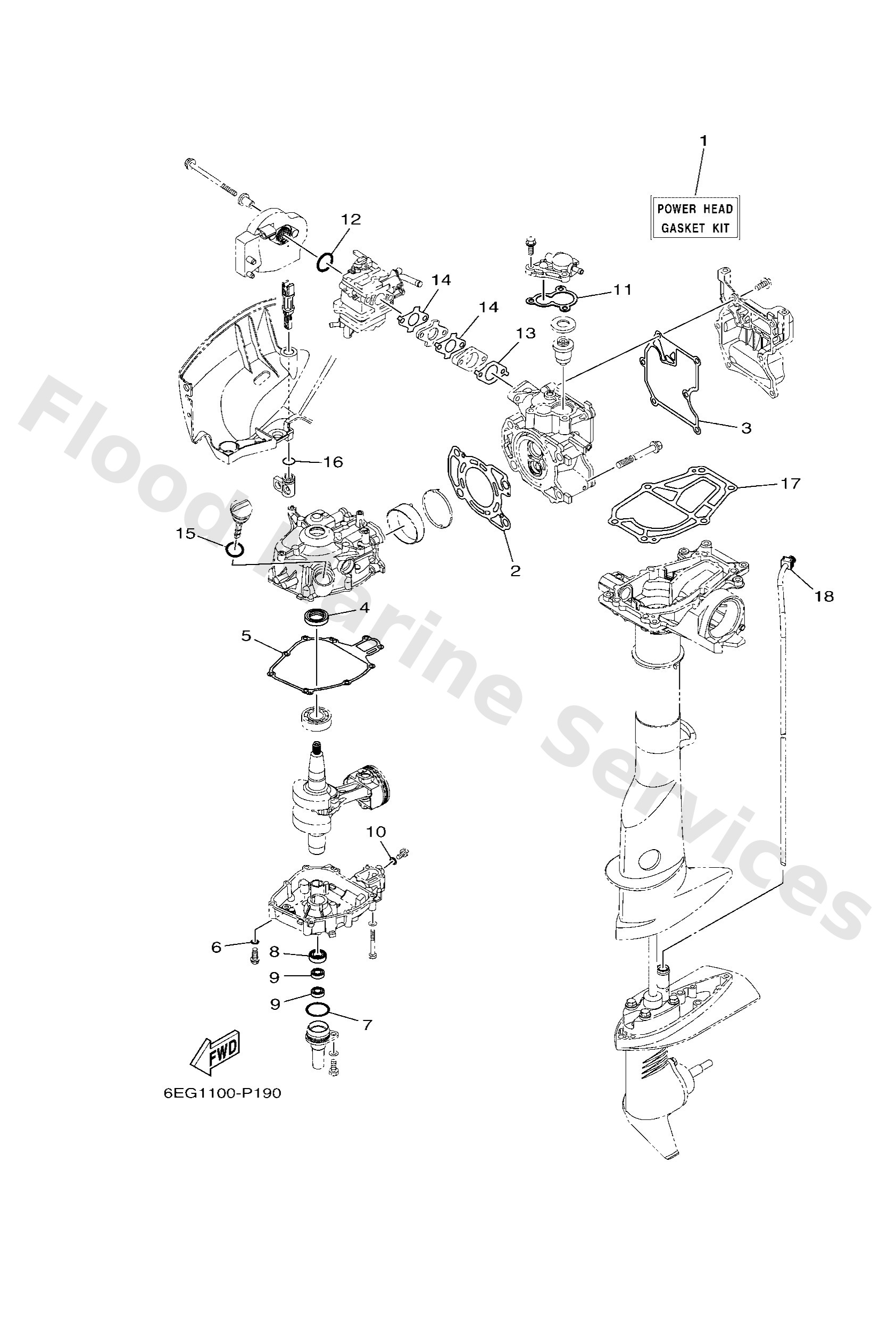

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6EGW000100
Power head gasket kit
Loading…
↗
2
6EGE118100
Gasket, cylinder h
Loading…
↗
3
6EGE119300
Gasket, head cover
Loading…
↗
4
9310220814
Oil seal
Loading…
↗
5
6EG1135100
Gasket, cylinder
Loading…
↗
6
9020108818
Washer
Loading…
↗
7
9321035803
O-ring
Loading…
↗
9
9310209800
Oil seal
Loading…
↗
10
9043008143
Gasket (256-11198-00)
Loading…
↗
11
67D12414A0
Gasket, cover
Loading…
↗
12
9321020801
O-ring
Loading…
↗
13
6EGE364500
Gasket, manifold 1
Loading…
↗
14
6EGE364600
Gasket, manifold 2
Loading…
↗
15
9321024800
O-ring
Loading…
↗
16
93210128F6
O-ring
Loading…
↗
17
6EGG511300
Gasket, upper casi
Loading…
↗
18
6EEG436500
Damper, water seal
Loading…
↗
