F225CET (2012)
REPAIR KIT 1

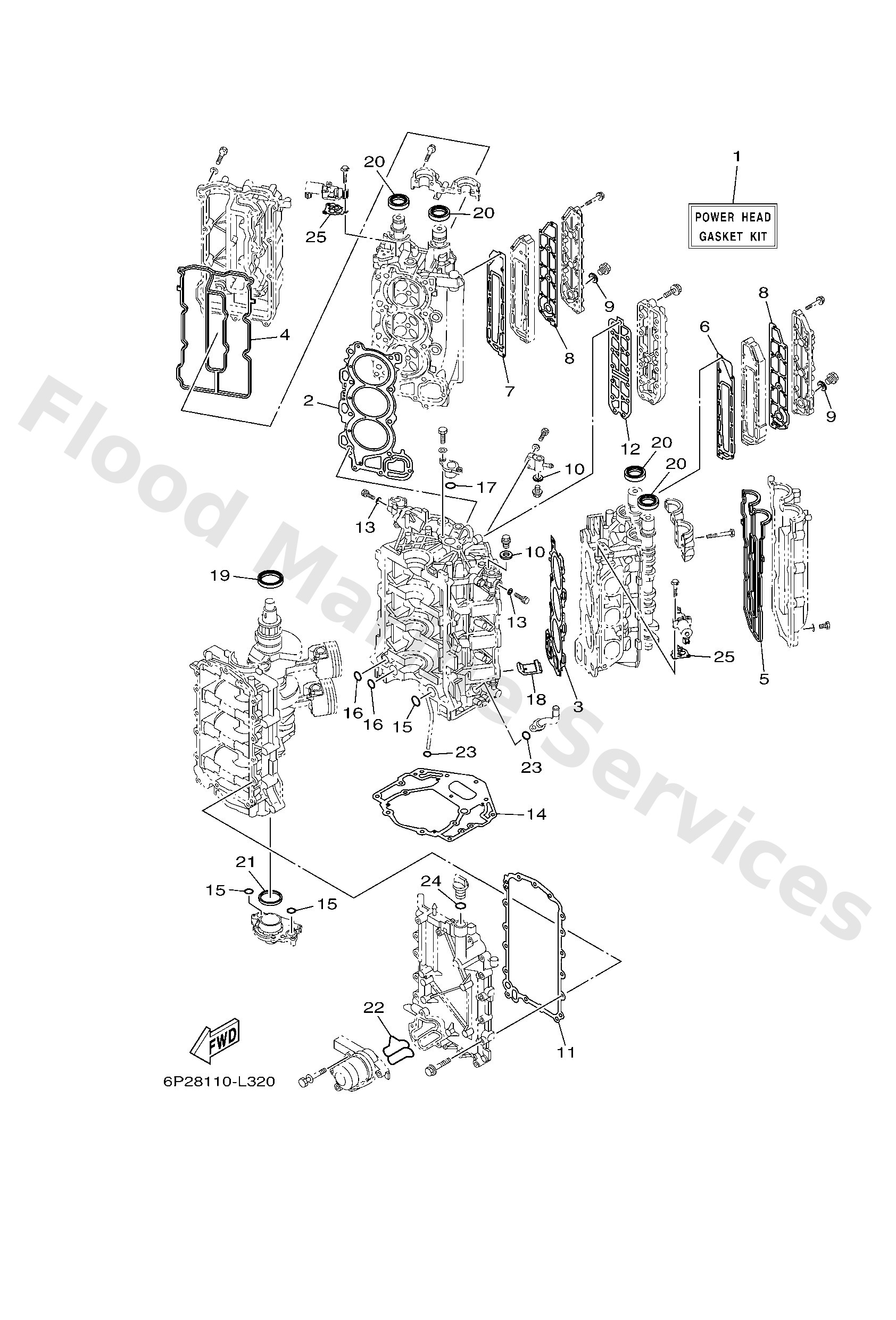

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6P2W000102
Power head gasket kit
Loading…
↗
2
6P21118100
Gasket, cylinder head 1
Loading…
↗
3
6P21118200
Gasket, cylinder head 2
Loading…
↗
4
6P21119300
Gasket, head cover 1
Loading…
↗
5
6P21119400
Gasket, head cover 2
Loading…
↗
6
6P24111200
Gasket, exhaust inner cover
Loading…
↗
7
6P24112200
Gasket, exhaust inner cover
Loading…
↗
8
6P24111400
Gasket, exhaust outer cover
Loading…
↗
9
9043018130
Gasket (1j7)
Loading…
↗
10
9043014115
Gasket (663)
Loading…
↗
11
69J1545100
Gasket, crankcase cover 1
Loading…
↗
12
6P21131B00
Gasket, cover
Loading…
↗
13
9043005002
Gasket
Loading…
↗
14
69J1135111
Gasket, cylinder
Loading…
↗
15
9321025552
O-ring (22f)
Loading…
↗
16
9321019MJ1
O-ring
Loading…
↗
17
9321025647
O-ring (7or)
Loading…
↗
18
69J1466400
Grommet, water shut
Loading…
↗
19
9310263008
Oil seal
Loading…
↗
20
9310238008
Oil seal
Loading…
↗
21
69J1135500
Seal, cylinder 1
Loading…
↗
22
6P21347700
Gasket
Loading…
↗
23
9321019MJ3
O-ring
Loading…
↗
24
9321024M79
O-ring
Loading…
↗
25
6CB1242F00
Gasket, filter
Loading…
↗
