F25AMH (2002)
REPAIR KIT 1

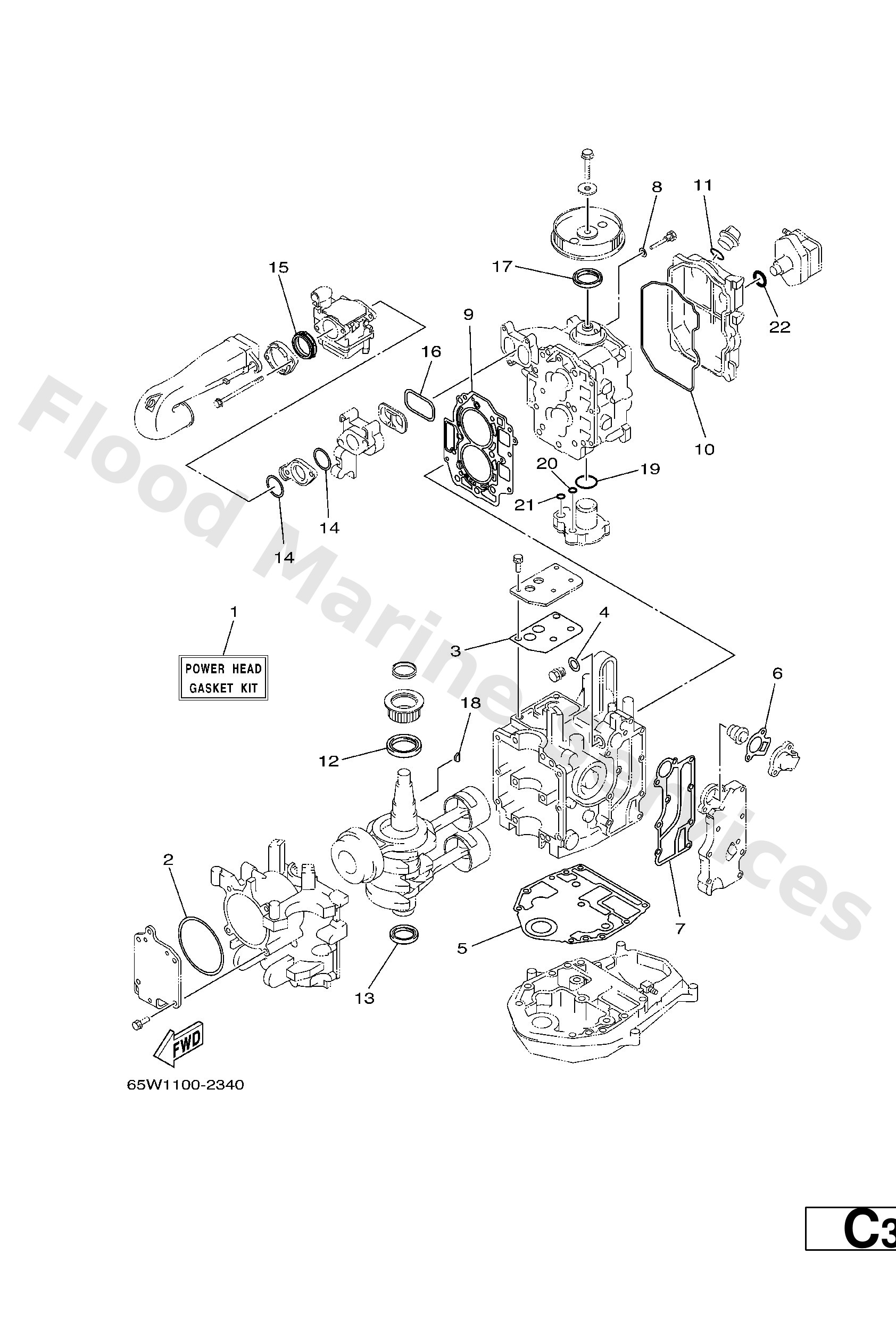

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
65WW000101
-
Loading…
↗
2
65W1566300
Seal
Loading…
↗
3
65W1116901
Gasket, breather cover
Loading…
↗
4
9043014115
Gasket (663)
Loading…
↗
5
65W1135100
Gasket, cylinder
Loading…
↗
6
62Y1241400
Gasket, cover
Loading…
↗
7
65W4111400
Gasket, exhaust outer cover
Loading…
↗
8
9043006014
Gasket 256113960000
Loading…
↗
9
65W1118111
Gasket, cylinder head 1
Loading…
↗
10
65W1135600
Seal, cylinder 2
Loading…
↗
11
9321024M79
O-ring
Loading…
↗
12
9310243M42
Oil seal(62y)
Loading…
↗
13
9310235M47
Oil seal(62y)
Loading…
↗
14
65W1419800
Gasket
Loading…
↗
15
65W1445710
Seal
Loading…
↗
16
65W1364500
Gasket, manifold 1
Loading…
↗
17
9310237M40
Oil seal(62y)
Loading…
↗
18
9028004M06
Key, woodruff(6a1)
Loading…
↗
19
9321033MH2
O-ring(62y)
Loading…
↗
20
9321012MG9
O-ring(62y)
Loading…
↗
21
9321014515
O-ring (11h)
Loading…
↗
