F25DMH (2018)
REPAIR KIT 1

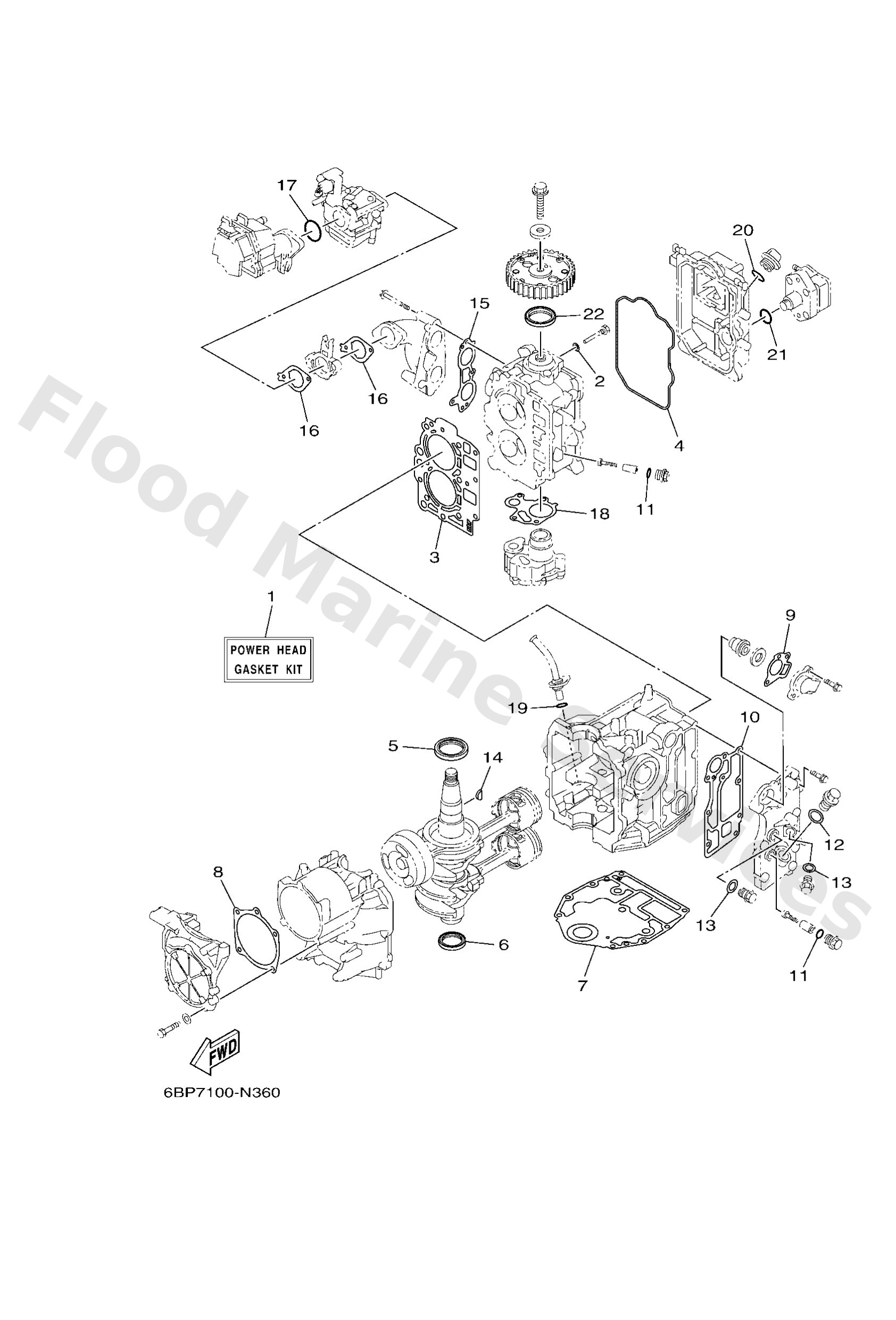

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6BLW000101
Power head gasket kit
Loading…
↗
2
9043006014
Gasket 256113960000
Loading…
↗
3
6BL1118100
Gasket, cylinder head 1
Loading…
↗
4
6BL1135600
Seal, cylinder 2
Loading…
↗
5
9310243M42
Oil seal(62y)
Loading…
↗
6
9310135002
Oil seal
Loading…
↗
7
6BG1135100
Gasket, cylinder
Loading…
↗
8
6BL1566300
Seal
Loading…
↗
9
62Y1241400
Gasket, cover
Loading…
↗
10
6BL4111400
Gasket, exhaust outer cover
Loading…
↗
11
9321013M63
O-ring (6g8)
Loading…
↗
12
90201186F1
Washer, plate (22f)
Loading…
↗
13
9043014115
Gasket (663)
Loading…
↗
14
9028003017
Key woodruff 146115450000
Loading…
↗
15
6BL1364500
Gasket, manifold 1
Loading…
↗
16
6BL1364600
Gasket, manifold 2
Loading…
↗
17
9321039ME4
O-ring(6h2)
Loading…
↗
18
6C51332900
Gasket, pump cover
Loading…
↗
19
9321019MJ3
O-ring
Loading…
↗
20
9321024M79
O-ring
Loading…
↗
22
9310237M40
Oil seal(62y)
Loading…
↗
