F25GE (2020)
REPAIR KIT 1

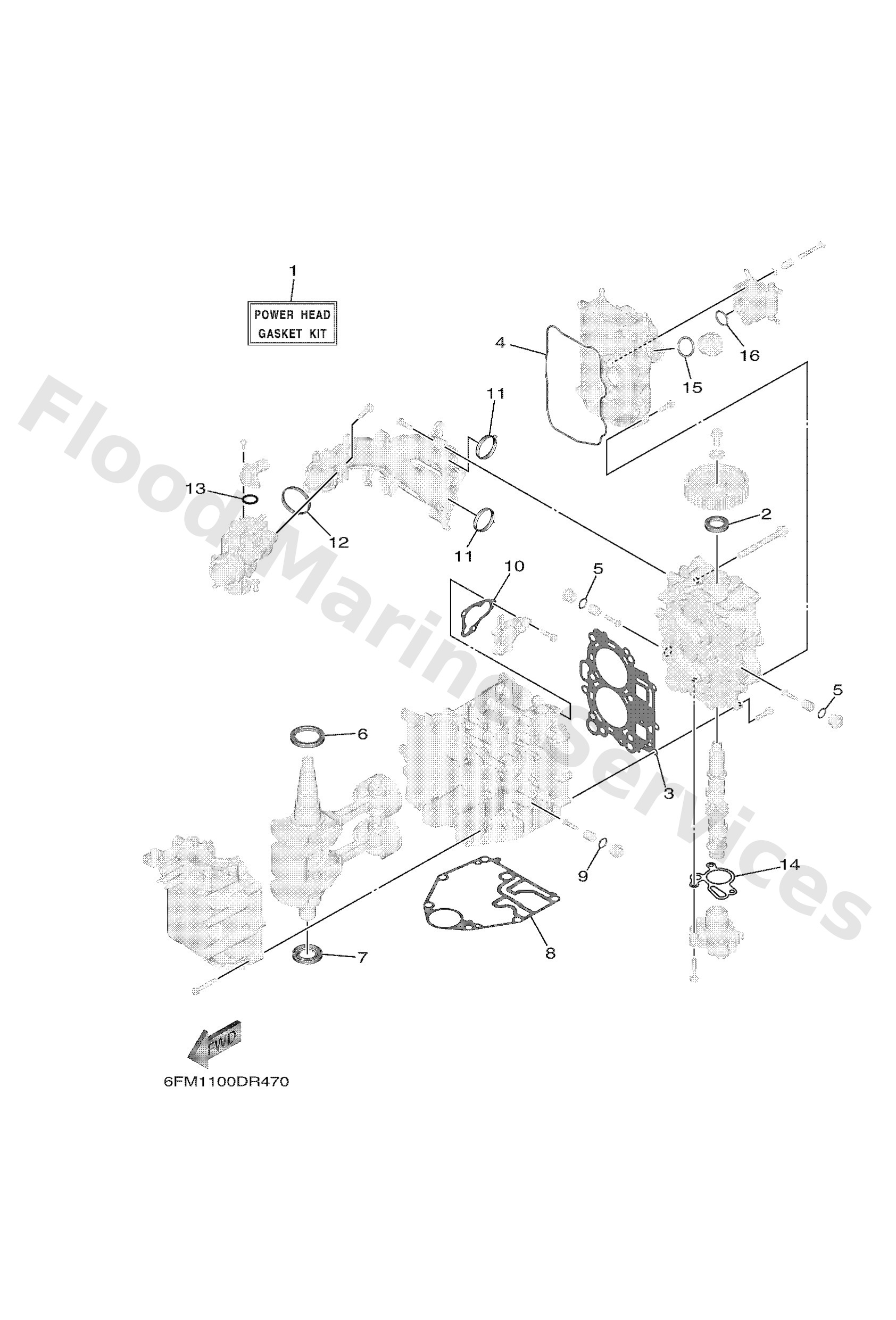

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6FMW000100
Power head gasket kit
Loading…
↗
2
9310222010
Oil seal
Loading…
↗
3
6FM1118100
Gasket, cylinder head 1
Loading…
↗
4
6FM1135600
Seal, cylinder 2
Loading…
↗
5
9321013M63
O-ring (6g8)
Loading…
↗
6
9310237004
Oil seal
Loading…
↗
7
9310225014
Oil seal
Loading…
↗
8
6FM1135100
Gasket, cylinder
Loading…
↗
10
6FM1241400
Gasket, cover
Loading…
↗
11
6FM1364500
Gasket, manifold 1
Loading…
↗
12
6FM1364600
Gasket, manifold 2
Loading…
↗
13
1ST1416A00
O-ring
Loading…
↗
14
6AH1332910
Gasket, pump cover
Loading…
↗
15
9321024M79
O-ring
Loading…
↗
16
9321020M65
O-ring
