F350AET (2013)
REPAIR KIT 1

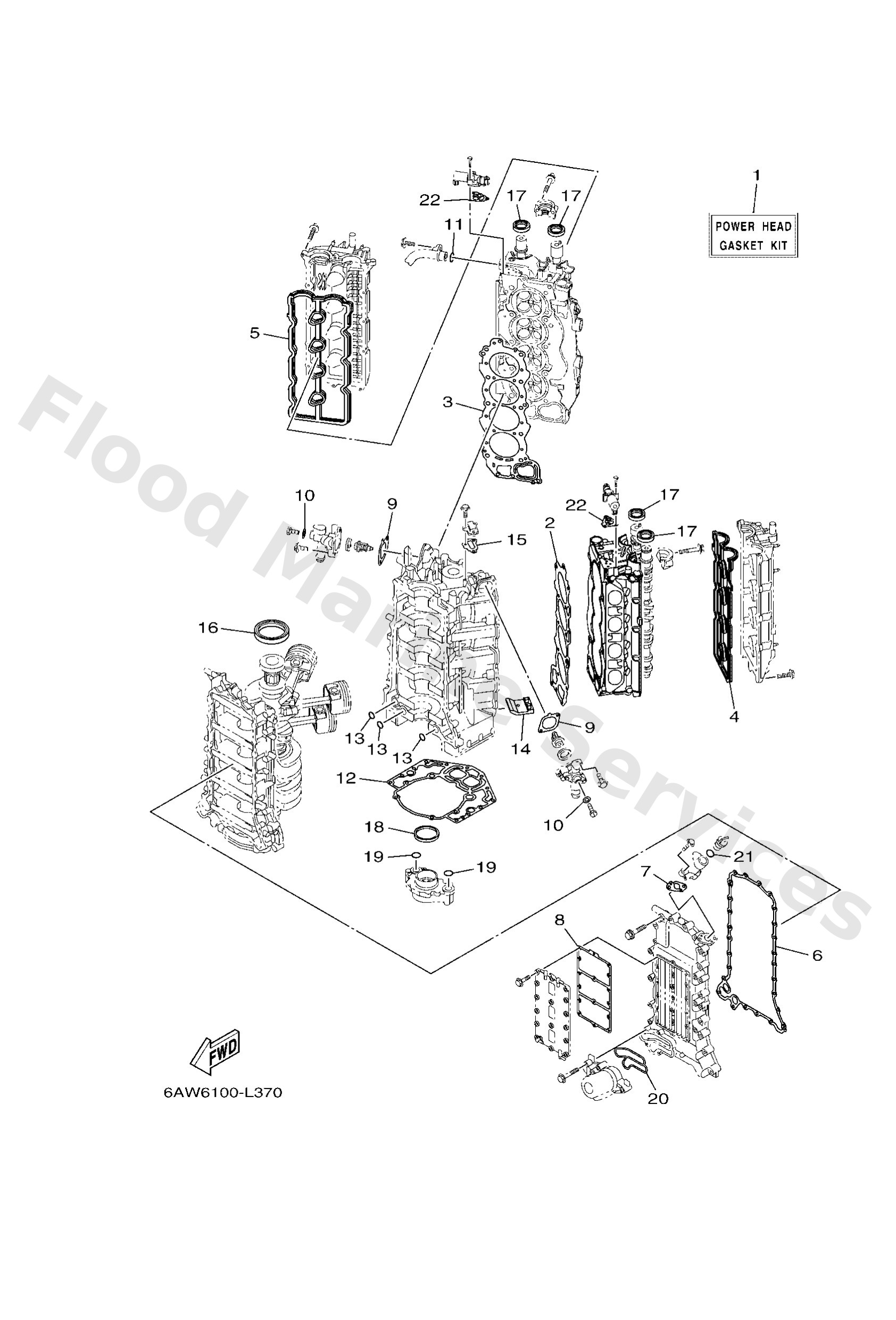

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6AWW000101
Power head gasket kit
Loading…
↗
2
6AW1118100
Gasket, cylinder head 1
Loading…
↗
3
6AW1118200
Gasket, cylinder head 2
Loading…
↗
4
6AW1119310
Gasket, head cover 1
Loading…
↗
5
6AW1119410
Gasket, head cover 2
Loading…
↗
6
6AW1545100
Gasket, crankcase cover 1
Loading…
↗
7
6AW1536400
Gasket, oil plug
Loading…
↗
8
6AW1546100
Gasket, crankcase cover 2
Loading…
↗
9
6AW1242700
Gasket, housing cover 1
Loading…
↗
10
9043005002
Gasket
Loading…
↗
11
93210207A0
O-ring
Loading…
↗
12
6AW1135100
Gasket, cylinder
Loading…
↗
13
9321026658
O-ring(36y)
Loading…
↗
14
6AW1466400
Grommet, water shut
Loading…
↗
15
6AW1138100
Gasket 1
Loading…
↗
16
9310285004
Oil seal
Loading…
↗
17
9310238008
Oil seal
Loading…
↗
18
69J1135500
Seal, cylinder 1
Loading…
↗
20
6AW1347700
Gasket
Loading…
↗
21
9321024M79
O-ring
Loading…
↗
22
6CB1242F00
Gasket, filter
Loading…
↗
