F40ERD (2005)
REPAIR KIT 1

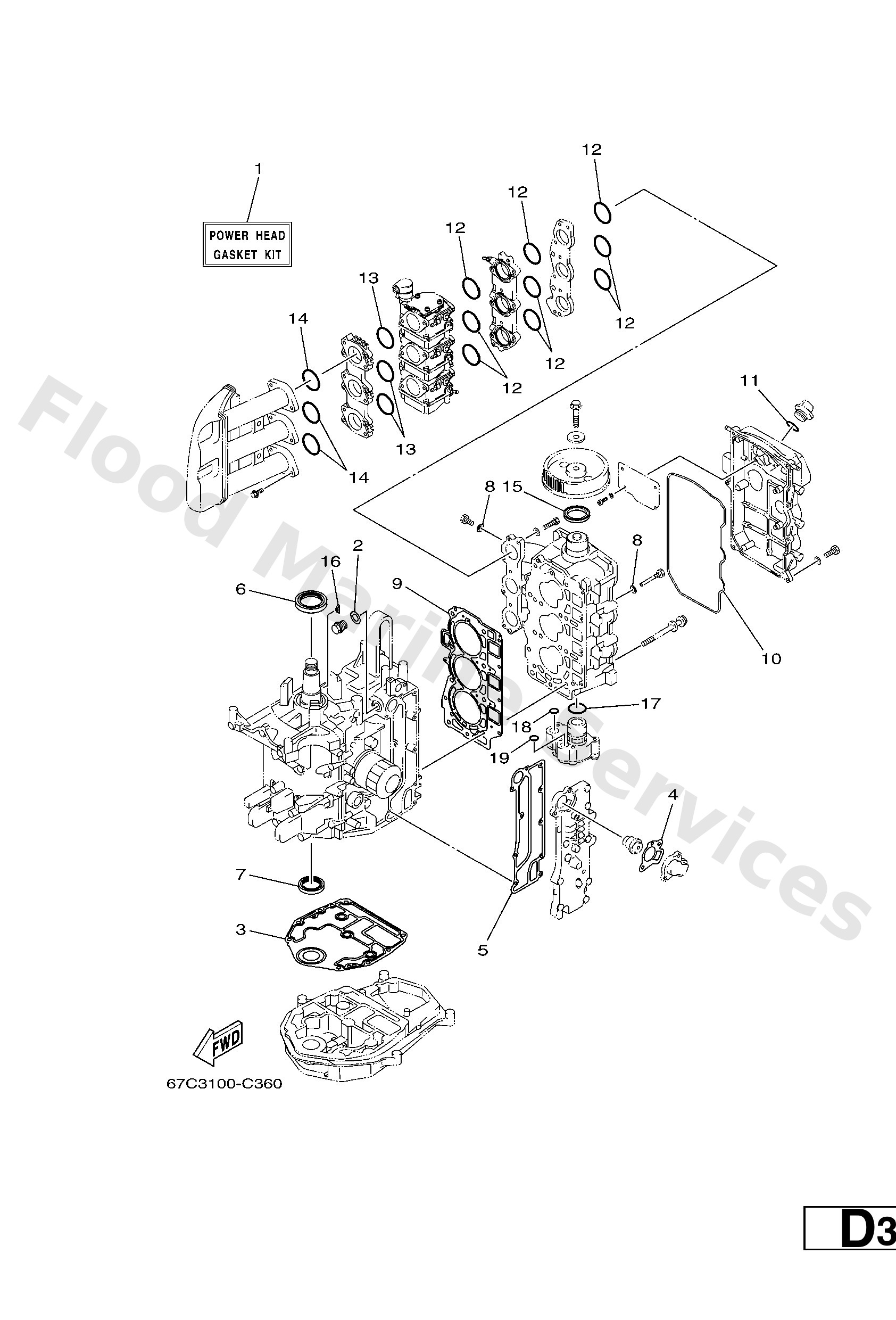

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
67CW000101
Power head gasket kit
Loading…
↗
2
9043014115
Gasket (663)
Loading…
↗
3
67C1135101
Gasket, cylinder
Loading…
↗
4
62Y1241400
Gasket, cover
Loading…
↗
5
67C4111410
Gasket, exhaust outer cover
Loading…
↗
6
9310243M42
Oil seal(62y)
Loading…
↗
7
9310235M47
Oil seal(62y)
Loading…
↗
8
9043006014
Gasket 256113960000
Loading…
↗
9
67C1118101
Gasket, cylinder head 1
Loading…
↗
10
67C1135600
Seal, cylinder 2
Loading…
↗
11
9321024M79
O-ring
Loading…
↗
12
67C1456100
O-ring
Loading…
↗
13
67C1456200
O-ring
Loading…
↗
14
9321034MJ6
O-ring
Loading…
↗
15
9310237M40
Oil seal(62y)
Loading…
↗
16
9028004M06
Key, woodruff(6a1)
Loading…
↗
17
9321033MH2
O-ring(62y)
Loading…
↗
18
9321012MG9
O-ring(62y)
Loading…
↗
19
9321014515
O-ring (11h)
Loading…
↗
