F40FEHD (2013)
REPAIR KIT 1

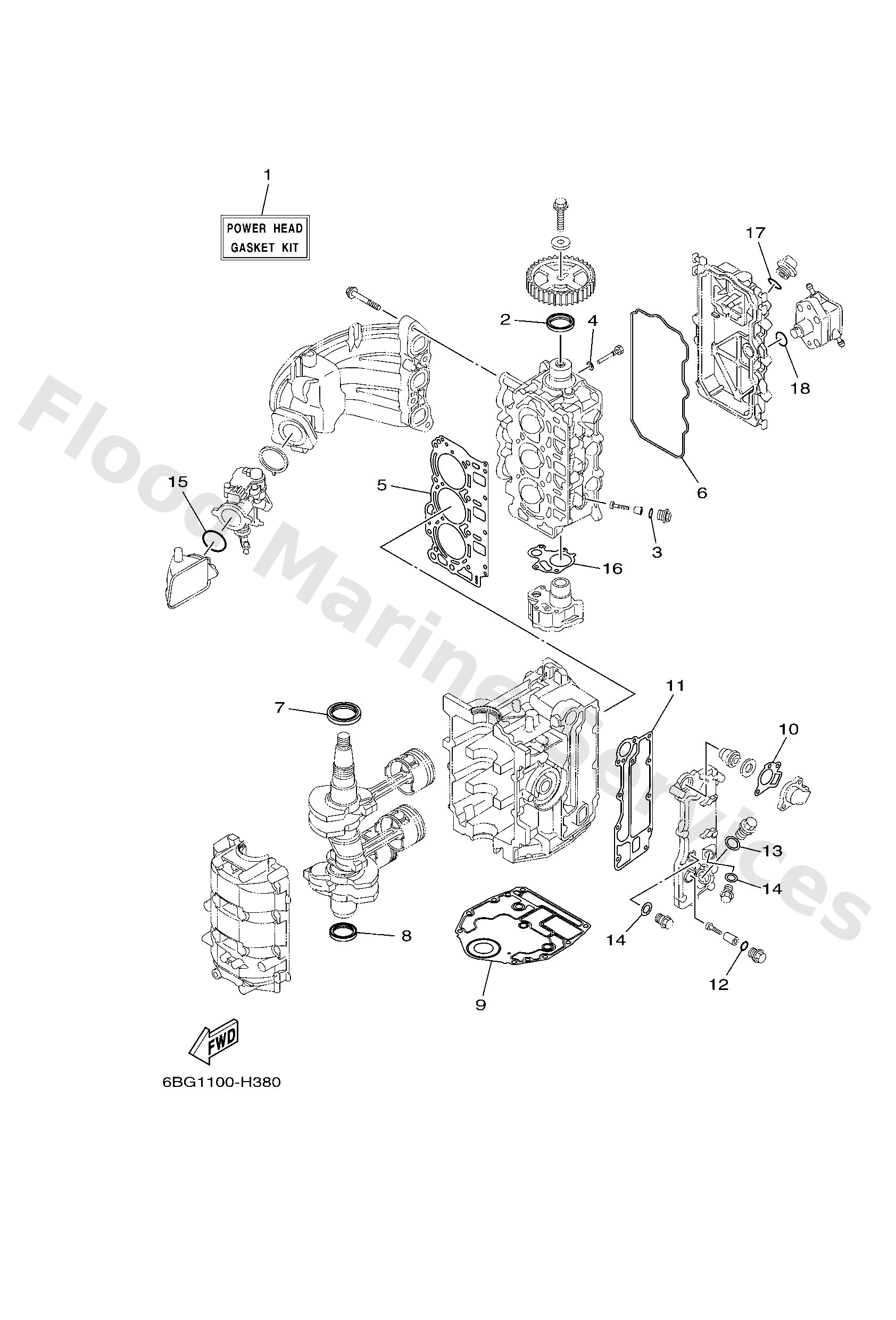

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6BGW000100
Power head gasket kit
Loading…
↗
2
9310237M40
Oil seal(62y)
Loading…
↗
3
9321013M63
O-ring (6g8)
Loading…
↗
4
9043006014
Gasket 256113960000
Loading…
↗
5
6BG1118100
Gasket, cylinder head 1
Loading…
↗
6
6BG1135600
Seal, cylinder 2
Loading…
↗
7
9310243M42
Oil seal(62y)
Loading…
↗
8
9310135002
Oil seal
Loading…
↗
9
6BG1135100
Gasket, cylinder
Loading…
↗
10
62Y1241400
Gasket, cover
Loading…
↗
11
6BG4111400
Gasket, exhaust outer cover
Loading…
↗
13
9043018130
Gasket (1j7)
Loading…
↗
14
9043014115
Gasket (663)
Loading…
↗
15
9321042159
O-ring (647)
Loading…
↗
16
6C51332900
Gasket, pump cover
Loading…
↗
17
9321024M79
O-ring
Loading…
↗
