F4AMH (2009)
REPAIR KIT 1

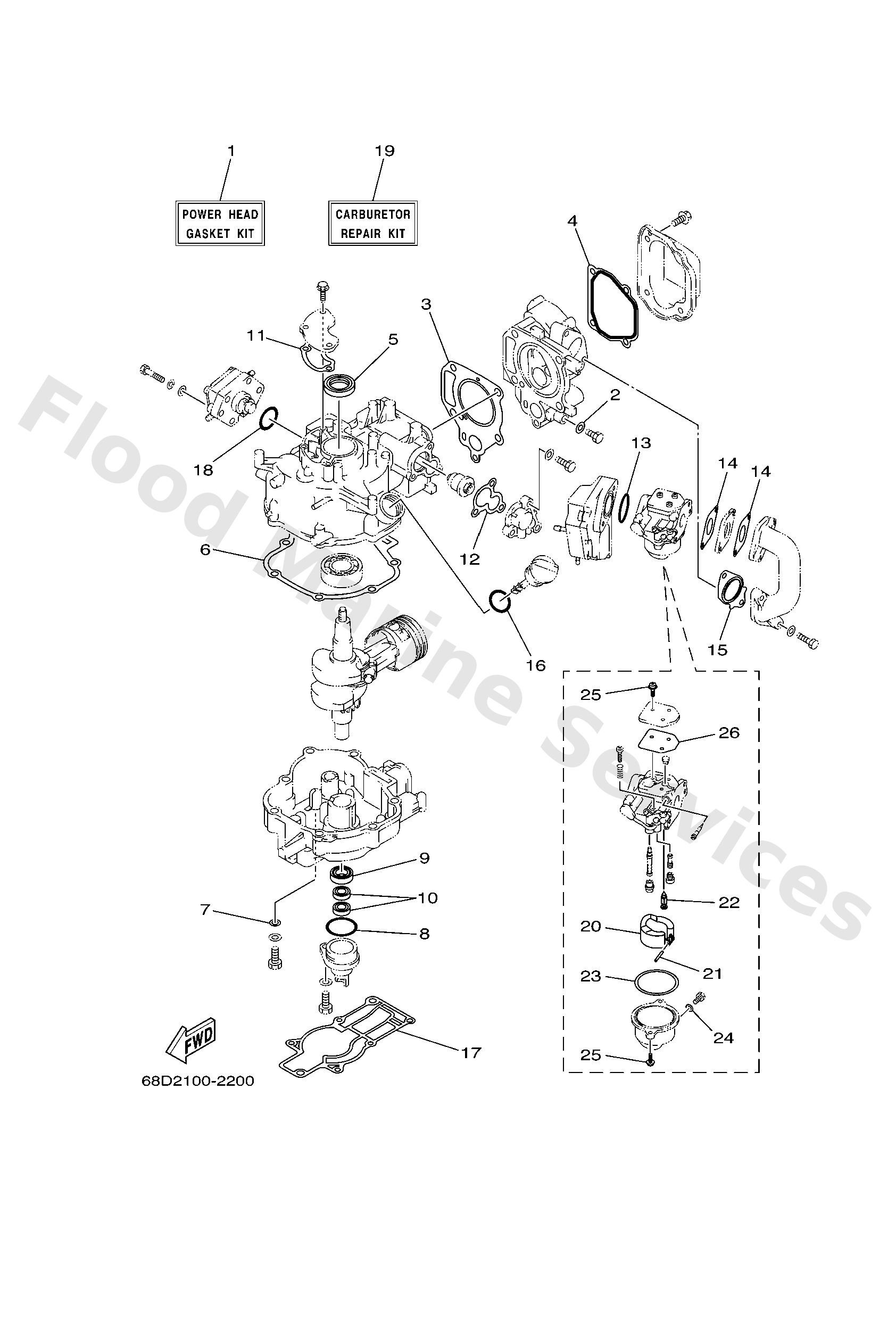

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
68DWE00101
Power head gasket kit
Loading…
↗
2
9043008800
Gasket (256-11198-00)
Loading…
↗
3
67D11181A0
Gasket, cylinder head 1
Loading…
↗
4
68DE1193A0
Gasket head cover
Loading…
↗
5
9310225090
Oil seal (25x40x5-256)
Loading…
↗
6
68D11351A0
Gasket, cylinder
Loading…
↗
7
9020108818
Washer
Loading…
↗
8
9321035537
O-ring
Loading…
↗
9
9310220108
Oil seal
Loading…
↗
10
9310210004
Oil seal
Loading…
↗
11
68DE1169A0
Gasket, Breather Cover
Loading…
↗
12
68DE2414A0
Gasket, cover
Loading…
↗
13
9321031MJ5
O-Ring
Loading…
↗
14
68DE3646A0
Gasket, Manifold 2
Loading…
↗
15
68DE3645A0
Gasket int. manifold
Loading…
↗
16
9321024M79
O-Ring
Loading…
↗
17
67D45113A0
Gasket, upper casing
Loading…
↗
18
9321027ME3
O-ring
Loading…
↗
19
67DW009301
Carburetor repair kit
Loading…
↗
20
68T1438500
Float
Loading…
↗
21
67D1438600
Pin, float
Loading…
↗
22
67D1454600
Valve, needle
Loading…
↗
23
67D1498400
Gasket, float chamber
Loading…
↗
24
6J81495900
Gasket, drin screw
Loading…
↗
25
9798004112
Screw, With Washer
Loading…
↗
26
67D1453600
Gasket
Loading…
↗
