F4MHB (2003)
REPAIR KIT 1

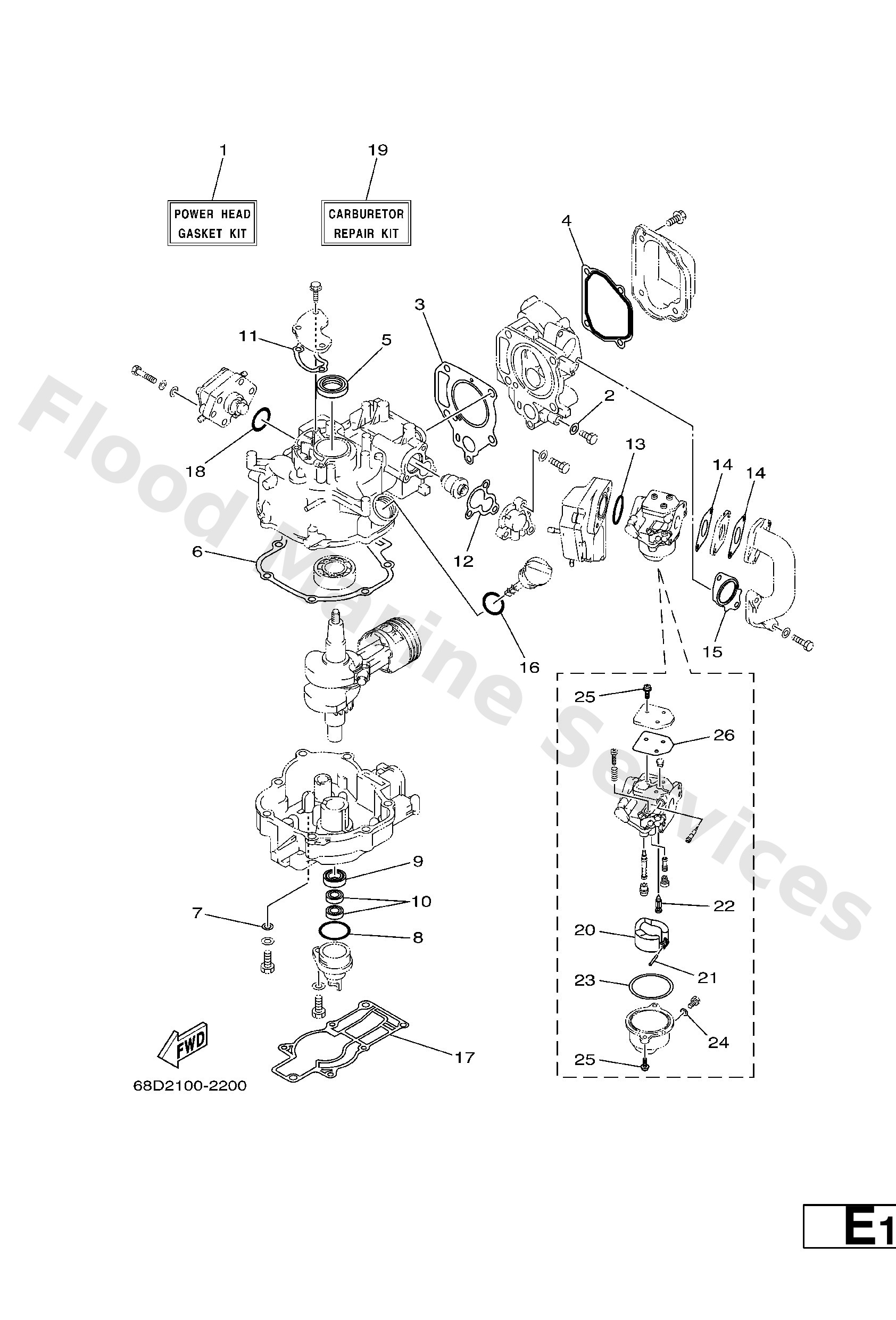

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
68D−WE001−00
Power head gasket kit
Loading…
↗
2
90430−08800
Gasket (256-11198-00)
Loading…
↗
3
67D−11181−A0
Gasket, cylinder head 1
Loading…
↗
4
68D−E1193−A0
Gasket head cover
Loading…
↗
5
93102−25090
Oil seal (25x40x5-256)
Loading…
↗
6
68D−11351−A0
Gasket, cylinder
Loading…
↗
7
90201−08818
Washer
Loading…
↗
8
93210−35537
O-ring
Loading…
↗
9
93102−20108
Oil seal
Loading…
↗
10
93102−10004
Oil seal
Loading…
↗
11
68D−E1169−A0
4−
Loading…
↗
12
68D−E2414−A0
Gasket, cover
Loading…
↗
13
93210−31MJ5
O-ring
Loading…
↗
14
68D−E3646−A0
6−
Loading…
↗
15
68D−E3645−A0
Gasket int. manifold
Loading…
↗
16
93210−24M79
O−Ring
Loading…
↗
17
68D−G5113−A0
Gasket, upper casing
Loading…
↗
18
93210−27ME3
O-ring
Loading…
↗
19
67D−W0093−01
Carburetor repair kit
Loading…
↗
20
68T−14385−00
Float
Loading…
↗
21
67D−14386−00
Pin, float
Loading…
↗
22
67D−14546−00
Valve, needle
Loading…
↗
23
67D−14984−00
Gasket, float chamber
Loading…
↗
24
6J8−14959−00
Gasket
Loading…
↗
25
97980−04112
Screw, With Washer
Loading…
↗
26
67D−14536−00
Gasket
Loading…
↗
