F5AMH (2020)
REPAIR KIT 1

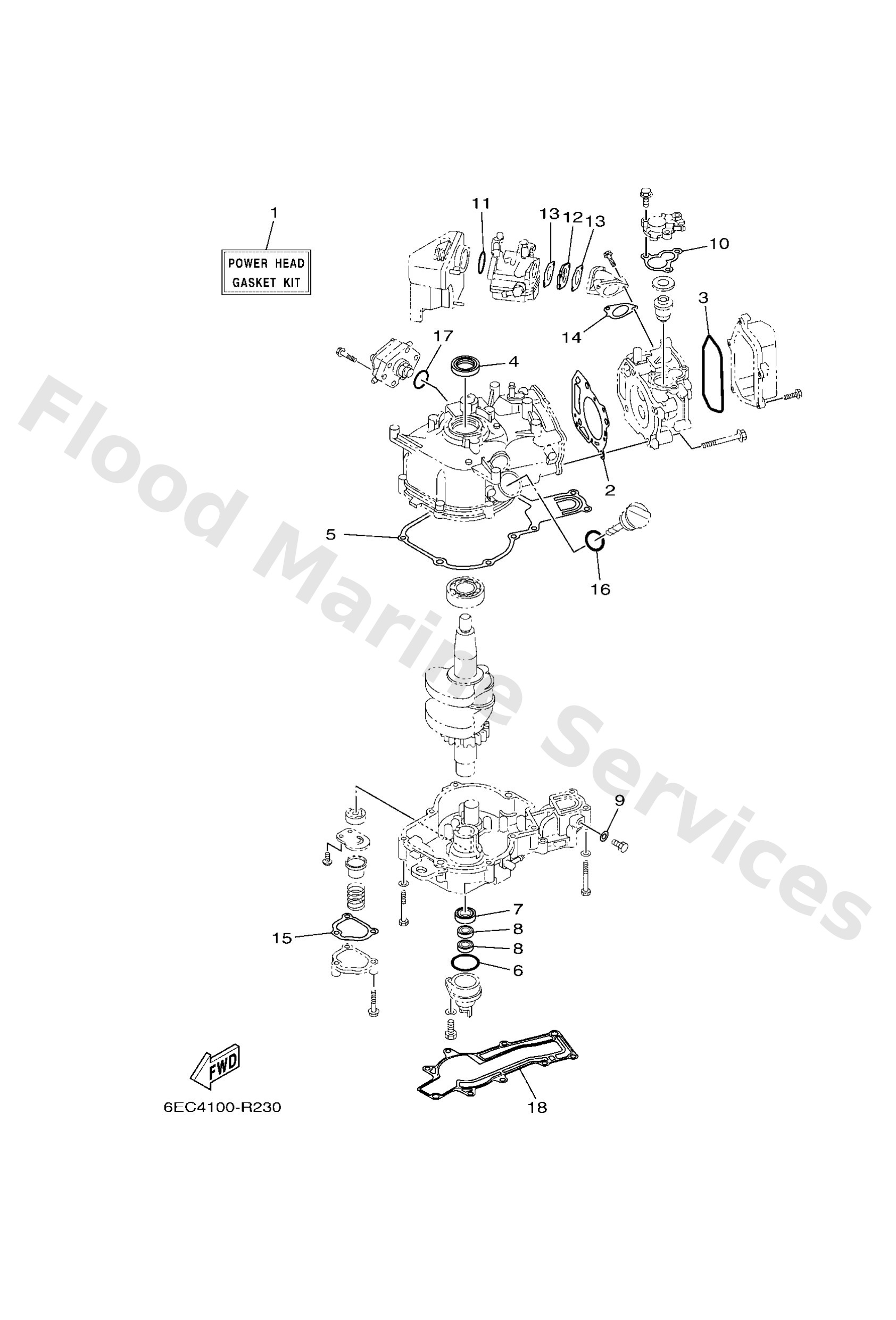

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6EEW000100
Power head gasket kit
Loading…
↗
2
6BX1118100
Gasket, cylinder head 1
Loading…
↗
3
6EEE135600
Seal, cylinder 2
Loading…
↗
4
9310225821
Oil seal
Loading…
↗
5
6BX1135100
Gasket, cylinder
Loading…
↗
6
9321035803
O-ring
Loading…
↗
7
9310220814
Oil seal
Loading…
↗
8
9310210800
Oil seal
Loading…
↗
9
9043008143
Gasket
Loading…
↗
10
67D12414A0
Gasket, cover
Loading…
↗
11
9321032817
O-ring
Loading…
↗
12
6EEE364700
Gasket, manifold 3
Loading…
↗
13
6EEE364600
Gasket, manifold 2
Loading…
↗
14
6EEE364500
Gasket, manifold 1
Loading…
↗
15
6EEE347500
Gasket
Loading…
↗
16
9321024800
O-ring
Loading…
↗
17
9321027806
O-ring
Loading…
↗
18
6EE4511300
Gasket, upper casing
Loading…
↗
