F70BET (2025)
REPAIR KIT 1

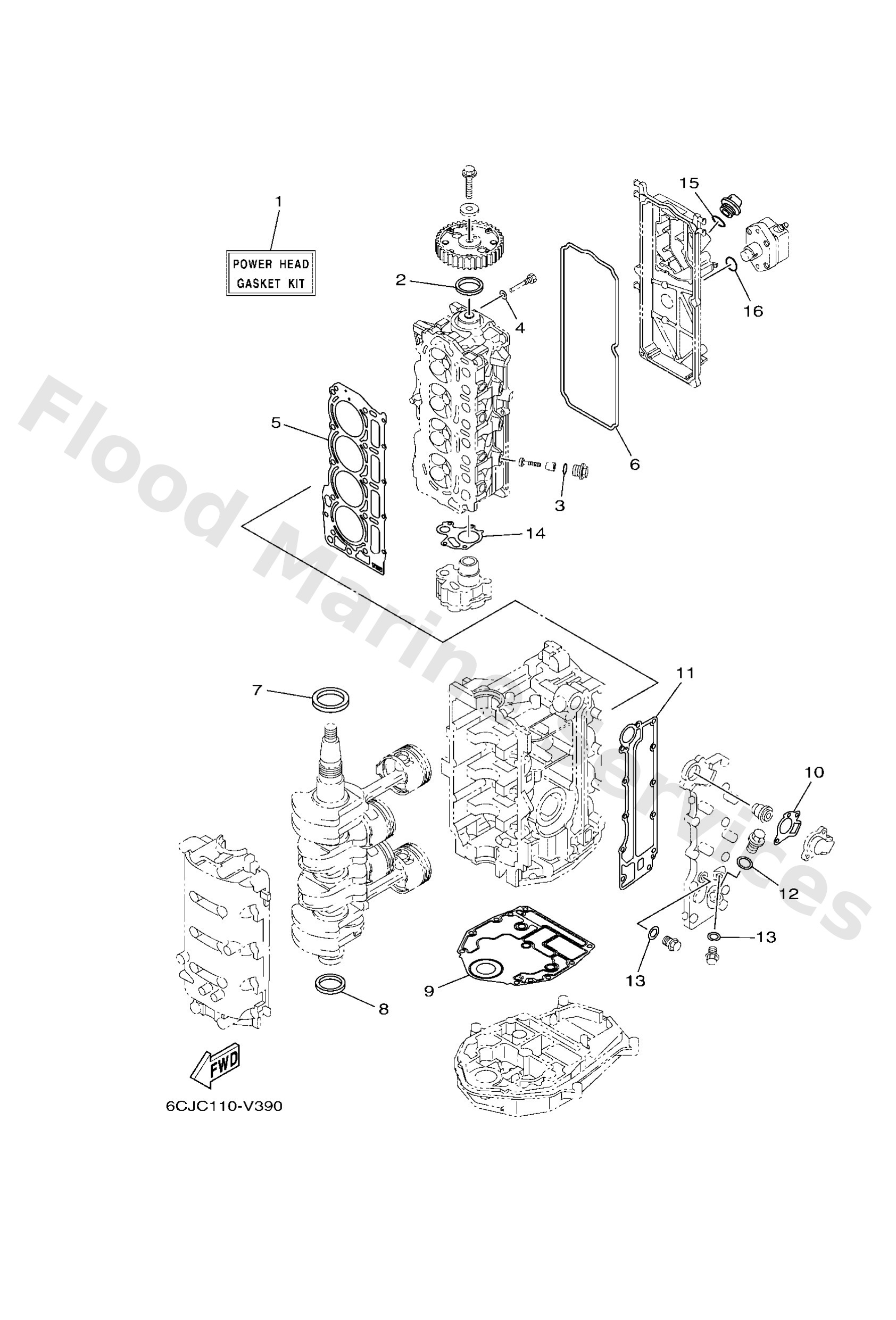

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6CJW000103
Power head gasket kit
Loading…
↗
2
9310237M40
Oil seal(62y)
Loading…
↗
3
9321013M63
O-ring (6g8)
Loading…
↗
4
9043006014
Gasket 256113960000
Loading…
↗
5
6CJ1118100
Gasket, cylinder head 1
Loading…
↗
6
6CJ1135600
Seal, cylinder 2
Loading…
↗
7
9310243004
Oil seal
Loading…
↗
8
9310135002
Oil seal
Loading…
↗
9
6BG1135102
Gasket, cylinder
Loading…
↗
10
62Y1241401
Gasket, cover
Loading…
↗
11
6C54111410
Gasket, exhaust outer cover
Loading…
↗
12
90201186F1
Washer, plate (22f)
Loading…
↗
13
9043014115
Gasket (663)
Loading…
↗
14
6C51332900
Gasket, pump cover
Loading…
↗
15
9321024M79
O-ring
Loading…
↗
