F8CMH (2003)
REPAIR KIT 1

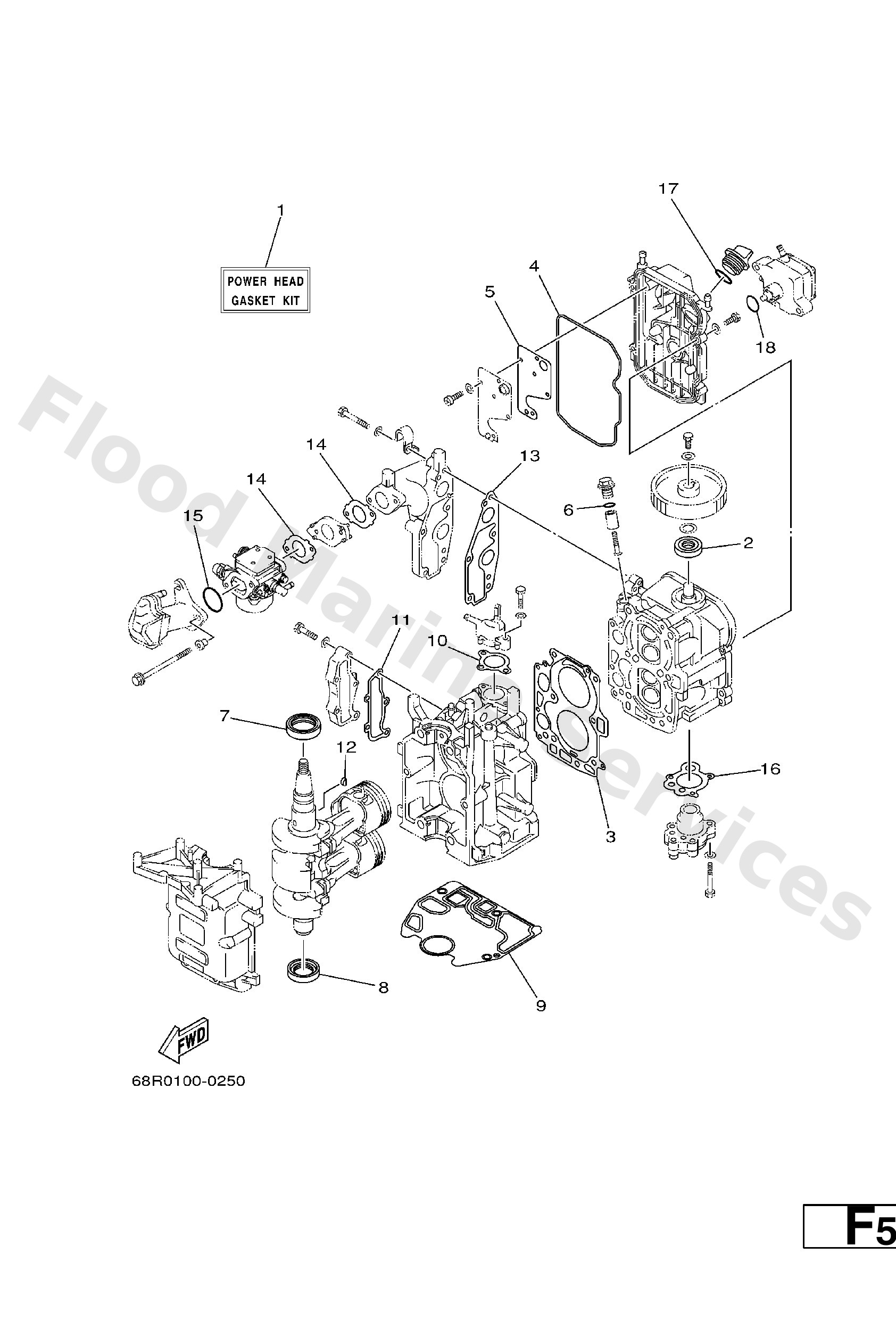

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
68T−W0001−00
Power head gasket kit
Loading…
↗
2
93102−18M21
Oil Seal
Loading…
↗
3
68T−11181−00
Gasket, cylinder head 1
Loading…
↗
4
68T−11356−00
Seal, cylinder 2
Loading…
↗
5
68T−11169−A0
Gasket, breather cover
Loading…
↗
6
93210−13M63
O-ring (6g8)
Loading…
↗
7
93102−30M22
Oil seal (6g8)
Loading…
↗
8
93101−25M69
Oil seal
Loading…
↗
9
68T−11351−00
Gasket, cylinder
Loading…
↗
10
6G8−12414−A0
Gasket, cover
Loading…
↗
11
68T−41114−A0
Gasket, exhaust outer cover
Loading…
↗
12
90280−03M01
Key, Woodruff
Loading…
↗
13
68T−13645−00
Gasket, manifold 1
Loading…
↗
14
68T−13646−A0
Gasket, manifold 2
Loading…
↗
15
93210−31MJ5
O-ring
Loading…
↗
16
68T−13329−00
Gasket, pump cover
Loading…
↗
17
93210−24M79
O−Ring
Loading…
↗
18
93210−20M65
O−Ring
Loading…
↗
