F9.9HWH1 (2023)
REPAIR KIT 1

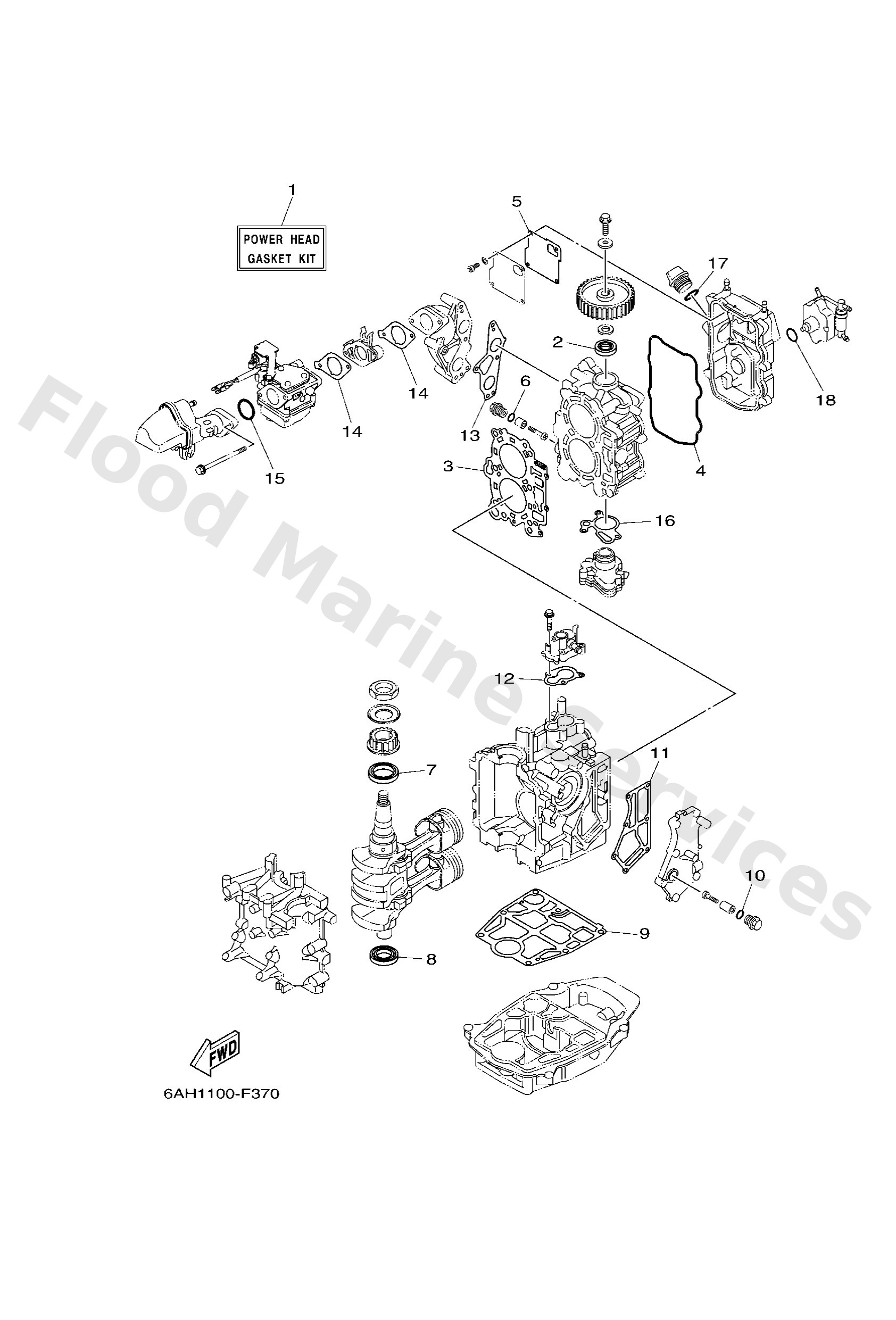

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6AGW000100
Power head gasket kit
Loading…
↗
2
9310222010
Oil seal
Loading…
↗
3
6AG1118110
Gasket, cylinder head 1
Loading…
↗
4
6AH1135600
Seal, cylinder 2
Loading…
↗
5
6AH1116900
Gasket, breather cover
Loading…
↗
6
9321013M63
O-ring (6g8)
Loading…
↗
7
9310237004
Oil seal
Loading…
↗
8
9310225014
Oil seal
Loading…
↗
9
6AH1135110
Gasket, cylinder
Loading…
↗
11
6AH4111400
Gasket, exhaust outer cover
Loading…
↗
12
6AH1241400
Gasket, cover
Loading…
↗
13
6AH1364500
Gasket, manifold 1
Loading…
↗
14
6AH1364600
Gasket, manifold 2
Loading…
↗
15
9321035M86
O-ring(6l2)
Loading…
↗
16
6AH1332910
Gasket, pump cover
Loading…
↗
17
9321024M79
O-ring
Loading…
↗
18
9321020M65
O-ring
Loading…
↗
