Yamaha Outboard Parts - REPAIR KIT 1 - F9.9JMH (2019) | Flood Marine

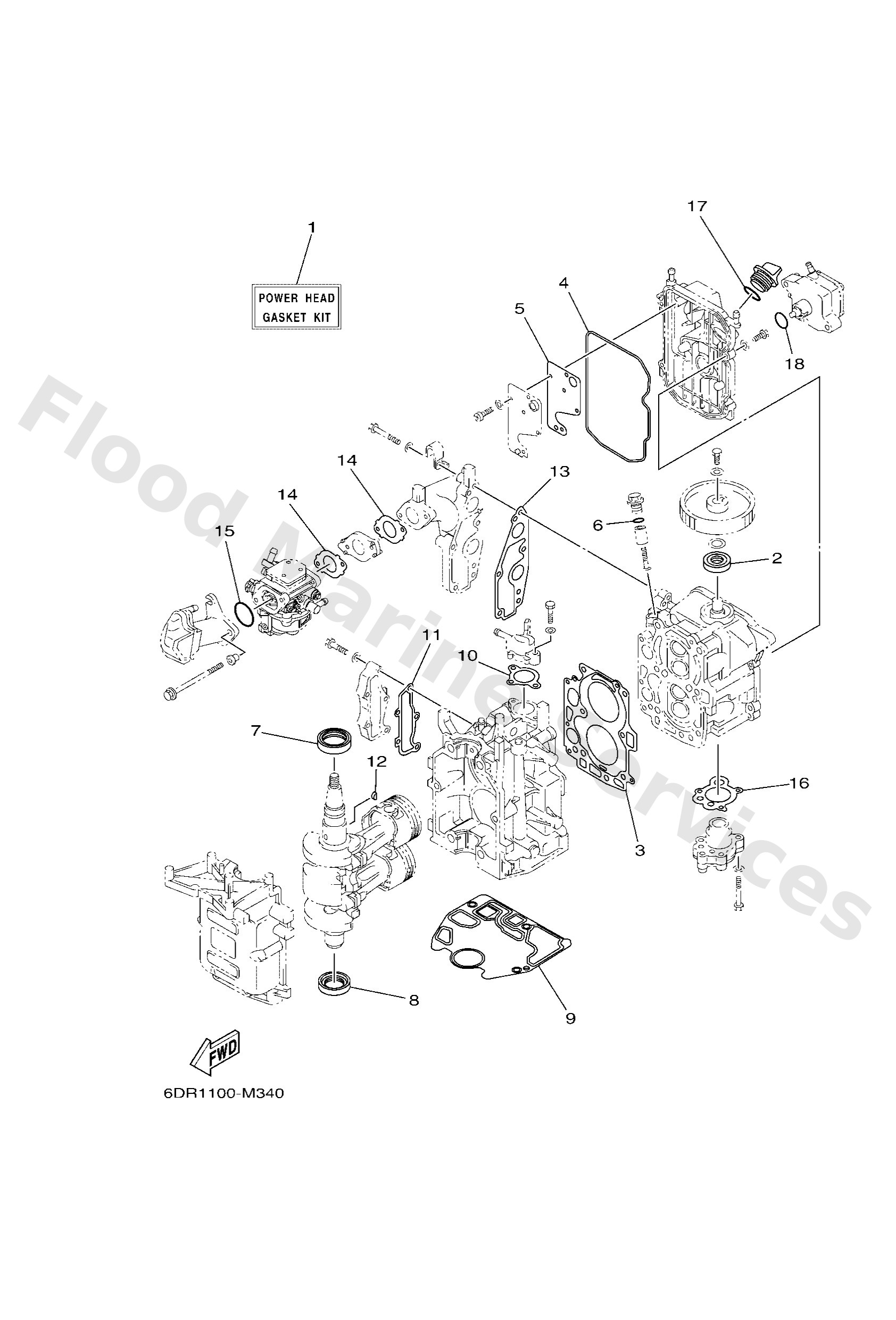

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
6AUW000100
Power head gasket kit
Loading…

↗
2
9310218M21
Oil seal (6g8)
Loading…

↗
3
68T1118100
Gasket, cylinder head 1
Loading…

↗
4
68T1135600
Seal, cylinder 2
Loading…

↗
5
68T11169A0
Gasket, breather cover
Loading…

↗
6
9321013M63
O-ring (6g8)
Loading…

↗
7
9310230M22
Oil seal (6g8)
Loading…

↗
8
9310125M69
Oil seal
Loading…

↗
9
68T1135100
Gasket, cylinder
Loading…

↗
10
6G812414A0
Gasket, cover
Loading…

↗
11
68T41114A0
Gasket, exhaust outer cover
Loading…

↗
12
9028003M01
Key woodruff 146115450000
Loading…

↗
13
68T1364500
Gasket, manifold 1
Loading…

↗
14
68T13646A0
Gasket, manifold 2
Loading…

↗
15
9321031MJ5
O-ring
Loading…

↗
16
68T1332900
Gasket, pump cover
Loading…

↗
17
9321024M79
O-ring
Loading…

↗
18
9321020M65
O-ring
Loading…

↗
