Yamaha Outboard Parts - REPAIR KIT 1 - FL115AET (2003) | Flood Marine

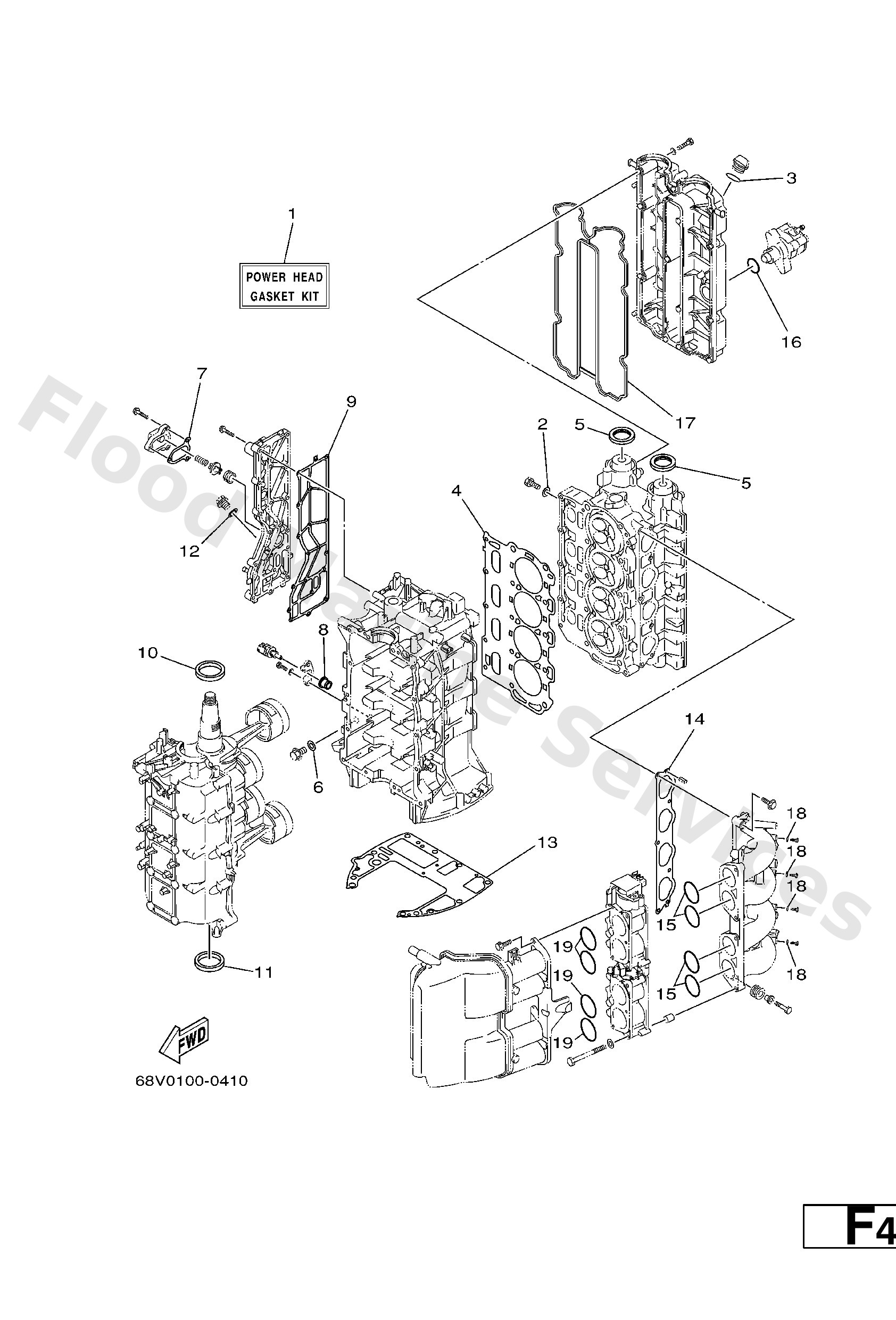

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
68V−W0001−02
Power head gasket kit
Loading…

↗
2
90430−08143
Gasket (256-11198-00)
Loading…

↗
3
93210−24M79
O-ring
Loading…

↗
4
67F−11181−01
Gasket, cylinder head 1
Loading…

↗
5
93102−38M59
Oil seal
Loading…

↗
6
90430−14115
Gasket (663)
Loading…

↗
7
67F−12435−A0
Gasket
Loading…

↗
8
68V−85753−00
Gasket, sender unit
Loading…

↗
9
67F−41114−A0
Gasket, exhaust outer cover
Loading…

↗
10
93102−48009
Oil seal
Loading…

↗
11
93101−48002
Oil seal
Loading…

↗
12
90430−18130
Gasket (1j7)
Loading…

↗
13
68V−11351−00
Gasket, cylinder
Loading…

↗
14
68V−13645−00
Gasket, manifold 1
Loading…

↗
15
93210−48MG8
O-ring
Loading…

↗
16
93210−30682
O-ring (371)
Loading…

↗
17
67F−11356−00
Seal, cylinder 2
Loading…

↗
18
90430−06014
Gasket 256113960000
Loading…

↗
19
93210−48MJ9
O-ring
Loading…

↗
