Yamaha Outboard Parts - REPAIR KIT 1 - FL225HET (2020) | Flood Marine

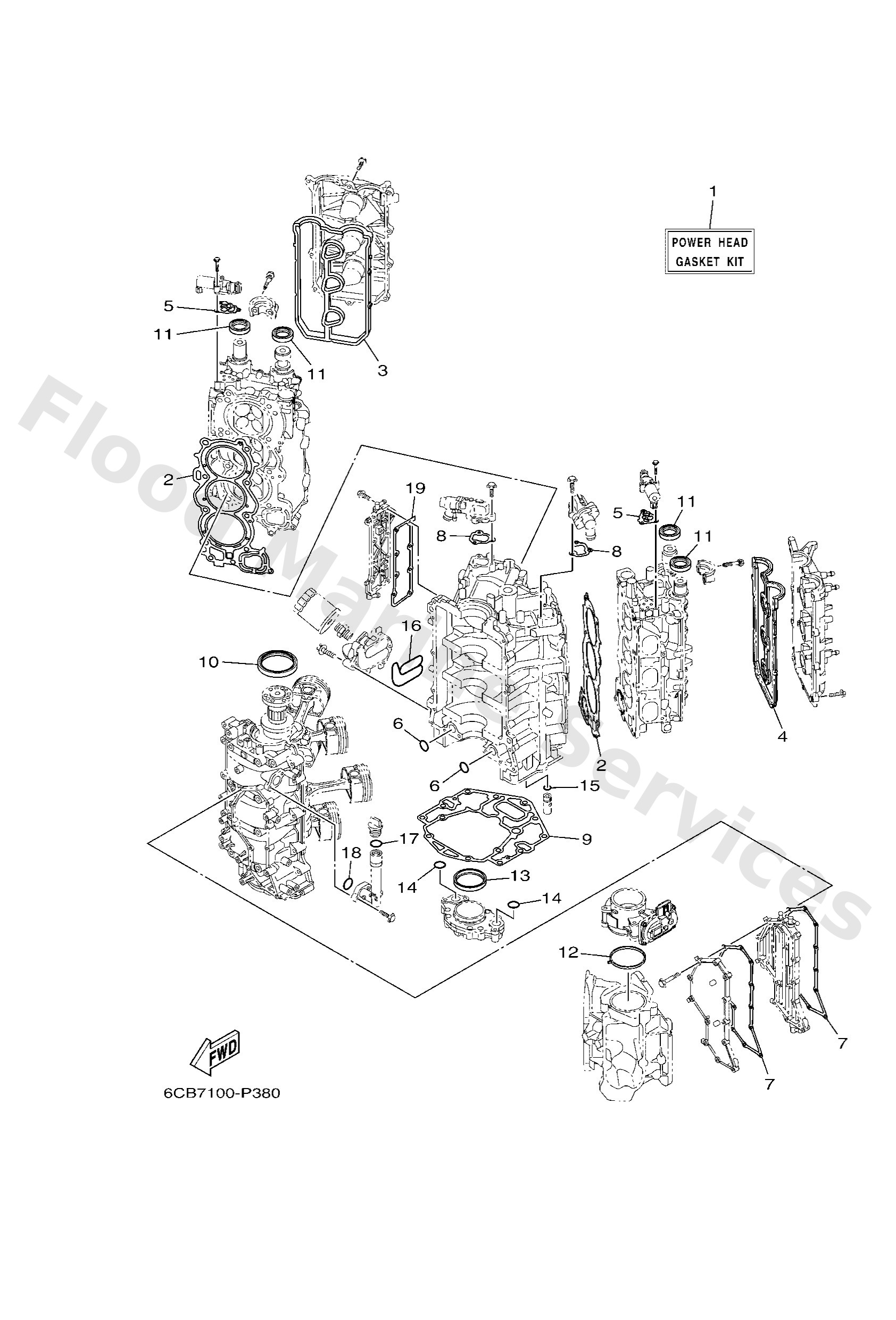

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
6CBW000103
Power head gasket kit
Loading…

↗
2
6CB1118100
Gasket, cylinder head 1
Loading…

↗
3
6CB1119300
Gasket, head cover 1
Loading…

↗
4
6CB1119400
Gasket, head cover 2
Loading…

↗
5
6CB1242F00
Gasket, Filter
Loading…

↗
6
9321026658
O-ring(36y)
Loading…

↗
7
6CB1545101
Gasket, crankcase cover 1
Loading…

↗
8
6CB1242711
Gasket, housing cover 1
Loading…

↗
9
6CB1135100
Gasket, cylinder
Loading…

↗
10
9310285008
Oil Seal
Loading…

↗
11
9310238008
Oil Seal
Loading…

↗
12
6CB1355600
Gasket, manifold
Loading…

↗
13
6CB1135500
33
Loading…

↗
15
6CB1347300
O-ring
Loading…

↗
16
6CB1347700
Gasket
Loading…

↗
17
9321024M79
O-Ring
Loading…

↗
18
9321027370
O-ring(1kt)
Loading…

↗
19
6CB1131B00
Gasket, cover
Loading…

↗
