Yamaha Outboard Parts - REPAIR KIT 1 - FT25BET (2008) | Flood Marine

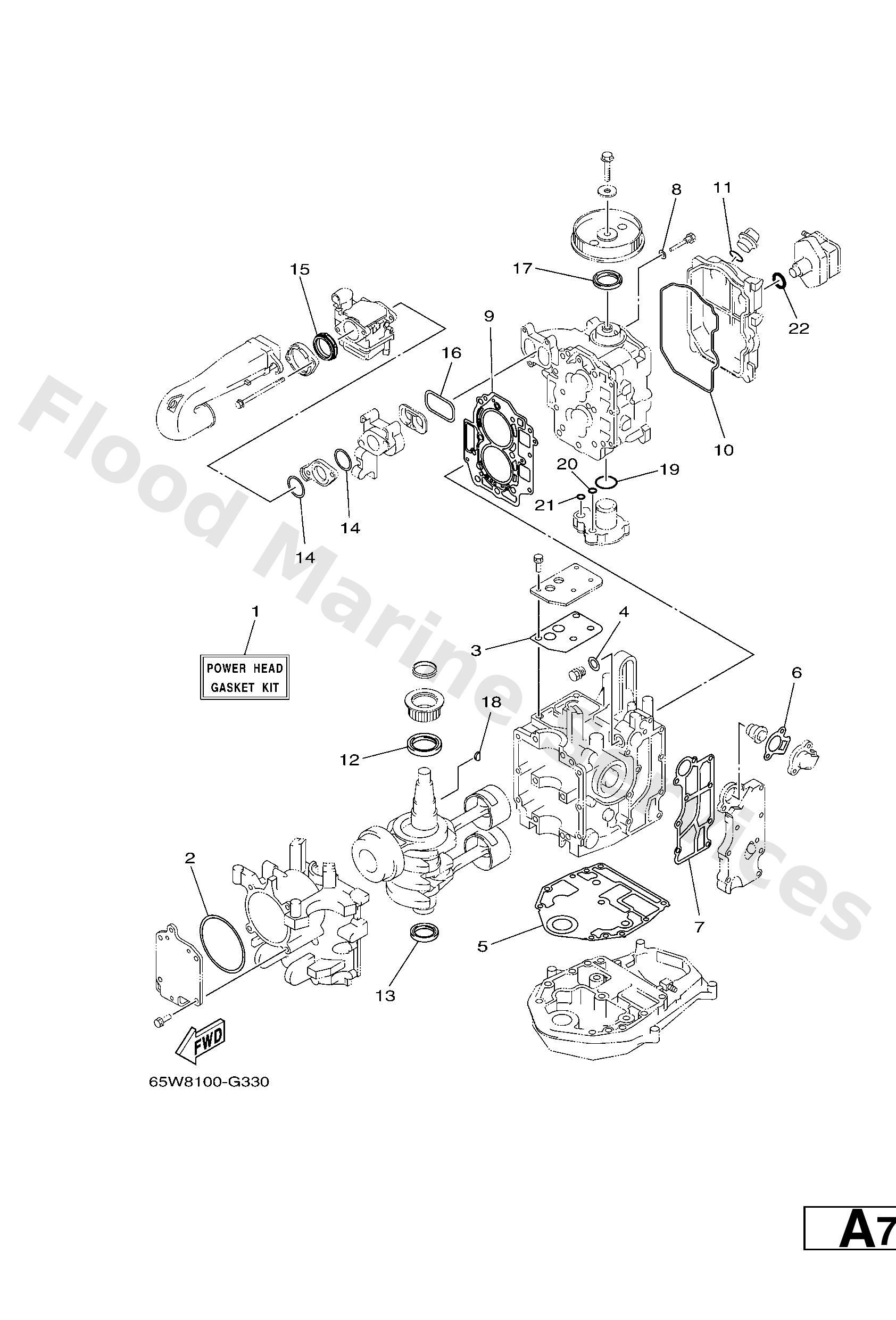

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
6D5W000100
Power head gasket kit
Loading…

↗
2
65W1566300
Seal
Loading…

↗
3
65W1116901
Gasket, breather cover
Loading…

↗
4
9043014115
Gasket (663)
Loading…

↗
5
65W1135110
Gasket, cylinder
Loading…

↗
6
62Y1241400
Gasket, cover
Loading…

↗
7
65W4111401
Gasket, exhaust outer cover
Loading…

↗
8
9043006014
Gasket 256113960000
Loading…

↗
9
65W1118130
Gasket, cylinder head 1
Loading…

↗
10
65W1135600
Seal, cylinder 2
Loading…

↗
11
9321024M79
O-ring
Loading…

↗
12
9310243004
Oil seal
Loading…

↗
13
9310135002
Oil seal
Loading…

↗
14
65W1419800
Gasket
Loading…

↗
15
65W1445710
Seal
Loading…

↗
16
65W1364500
Gasket, manifold 1
Loading…

↗
17
9310237M40
Oil seal(62y)
Loading…

↗
18
9028004M06
Key, woodruff(6a1)
Loading…

↗
19
9321033MH2
O-ring(62y)
Loading…

↗
20
9321012MG9
O-ring(62y)
Loading…

↗
21
9321014515
O-ring (11h)
Loading…

↗
