Yamaha Outboard Parts - REPAIR KIT 1 - FT50CEHD (2003) | Flood Marine

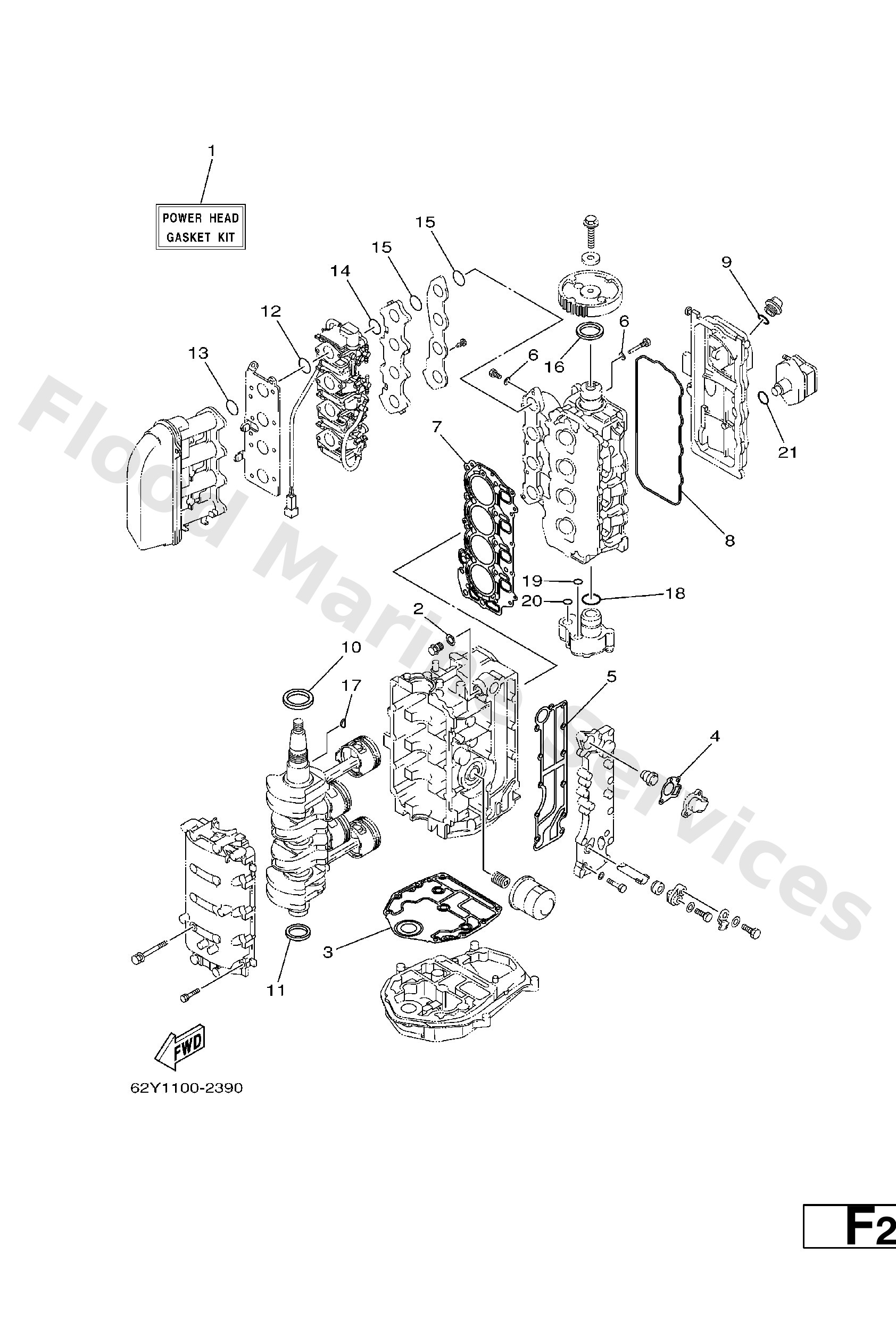

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
62Y−W0001−10
Power head gasket kit
Loading…

↗
2
90430−14115
Gasket (663)
Loading…

↗
3
67C−11351−00
Gasket, cylinder
Loading…

↗
4
62Y−12414−00
Gasket, cover
Loading…

↗
5
62Y−41114−00
Gasket, exhaust outer cover
Loading…

↗
6
90430−06014
Gasket 256113960000
Loading…

↗
7
62Y−11181−00
Gasket, cylinder head 1
Loading…

↗
8
62Y−11356−00
Seal, cylinder 2
Loading…

↗
9
93210−24M79
O-ring
Loading…

↗
10
93102−43M42
Oil seal(62y)
Loading…

↗
11
93101−35002
Oil seal
Loading…

↗
12
93210−35M86
O-ring(6l2)
Loading…

↗
13
93210−38MH3
O-ring(62y)
Loading…

↗
14
93210−30MH4
O-ring(62y)
Loading…

↗
16
93102−37M40
Oil seal(62y)
Loading…

↗
17
90280−04M06
Key, woodruff(6a1)
Loading…

↗
18
93210−33MH2
O-ring(62y)
Loading…

↗
19
93210−12MG9
O-ring(62y)
Loading…

↗
20
93210−14515
O-ring (11h)
Loading…

↗
