Yamaha Outboard Parts - REPAIR KIT 1 - FT60JET (2025) | Flood Marine

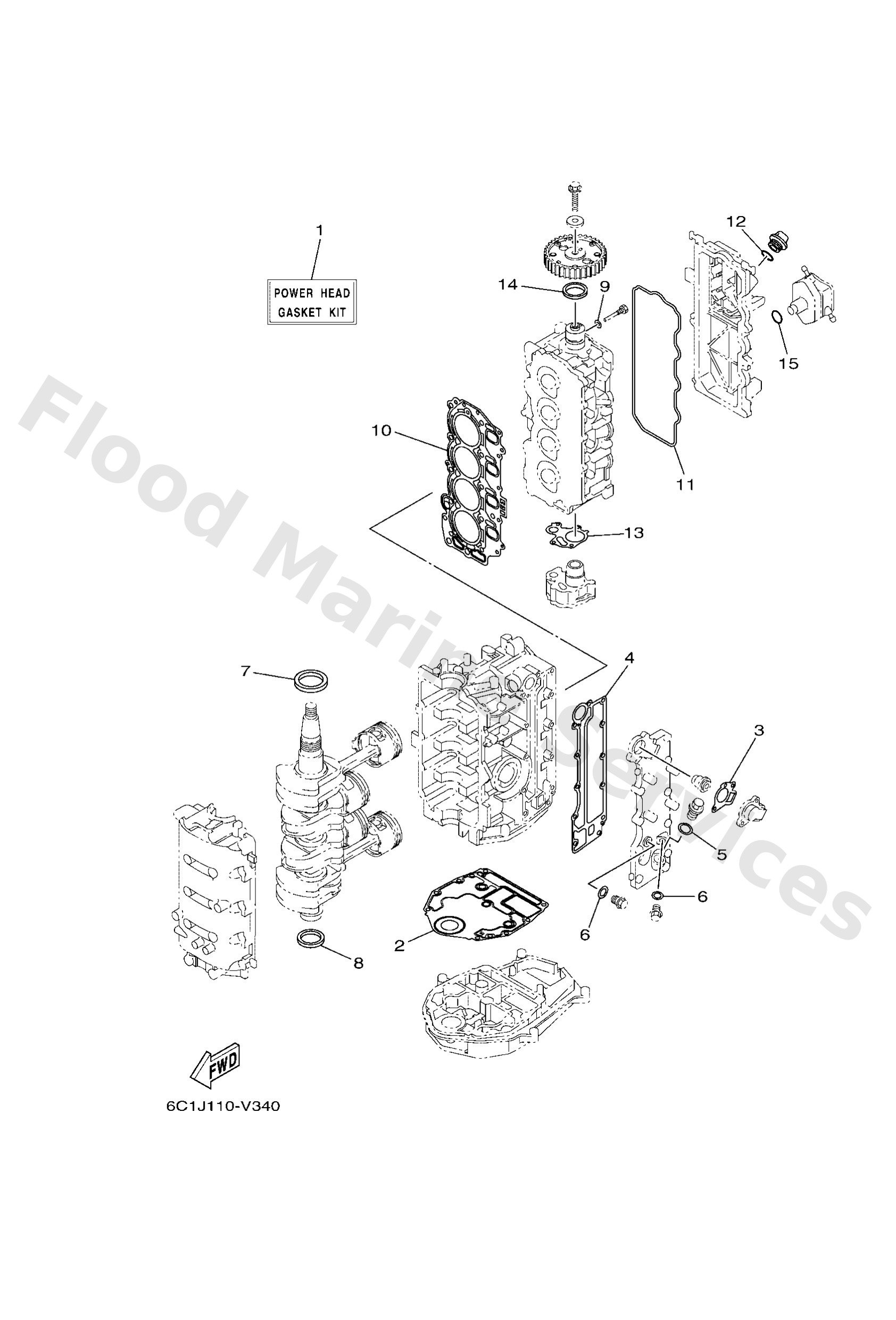

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
6C5W000105
Power head gasket kit
Loading…

↗
2
6BG1135102
Gasket, cylinder
Loading…

↗
3
62Y1241401
Gasket, cover
Loading…

↗
4
6C54111410
Gasket, exhaust outer cover
Loading…

↗
5
90201186F1
Washer, plate (22f)
Loading…

↗
6
9043014115
Gasket (663)
Loading…

↗
7
9310243M42
Oil seal(62y)
Loading…

↗
8
9310135002
Oil seal
Loading…

↗
9
9043006014
Gasket 256113960000
Loading…

↗
10
6C51118101
Gasket, cylinder head 1
Loading…

↗
11
62Y1135600
Seal, cylinder 2
Loading…

↗
12
9321024M79
O-ring
Loading…

↗
13
6C51332900
Gasket, pump cover
Loading…

↗
14
9310237M40
Oil seal(62y)
Loading…

↗
