FT9.9DE (2002)
REPAIR KIT 1

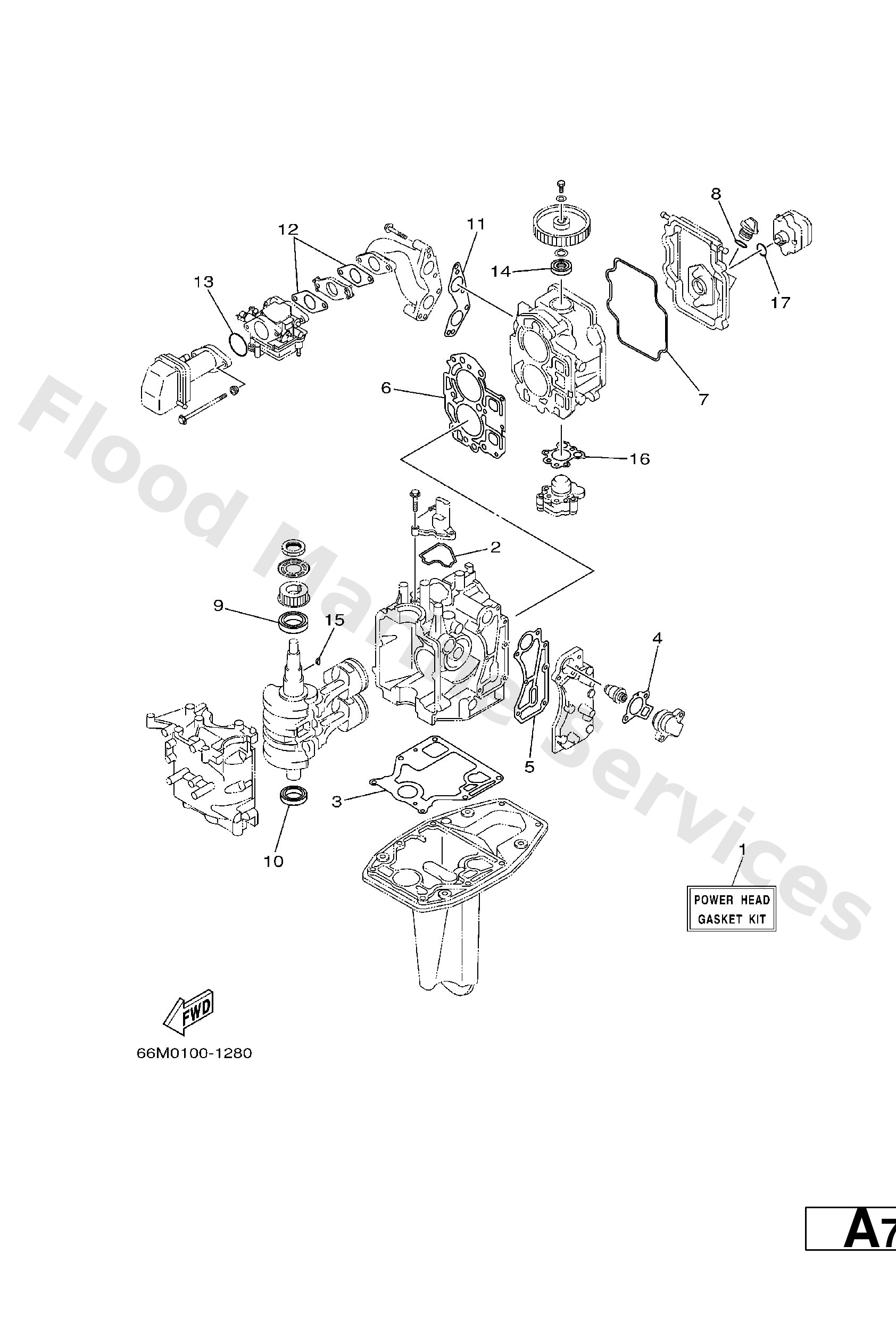

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
66M−W0001−01
Power head gasket kit
Loading…
↗
2
66M−11357−00
Seal, cylinder 3
Loading…
↗
3
66M−11351−00
Gasket, cylinder
Loading…
↗
4
62Y−12414−00
Gasket, cover
Loading…
↗
5
66M−41114−00
Gasket, exhaust outer cover
Loading…
↗
6
66M−11181−00
Gasket, cylinder head 1
Loading…
↗
7
66M−11356−00
Seal, cylinder 2
Loading…
↗
8
93210−24M79
O-ring
Loading…
↗
9
93102−35M51
Oil seal
Loading…
↗
10
93102−25M52
Oil seal
Loading…
↗
11
66M−13645−00
Gasket, manifold 1
Loading…
↗
12
66M−13646−00
Gasket, manifold 2
Loading…
↗
13
93210−35M86
O-ring(6l2)
Loading…
↗
14
93102−18M21
Oil seal (6g8)
Loading…
↗
15
90280−03M01
Key woodruff 146115450000
Loading…
↗
16
66M−13329−10
Gasket, pump cover
Loading…
↗
17
93210−20M65
O-ring
Loading…
↗
