LF200B (2023)
REPAIR KIT 1

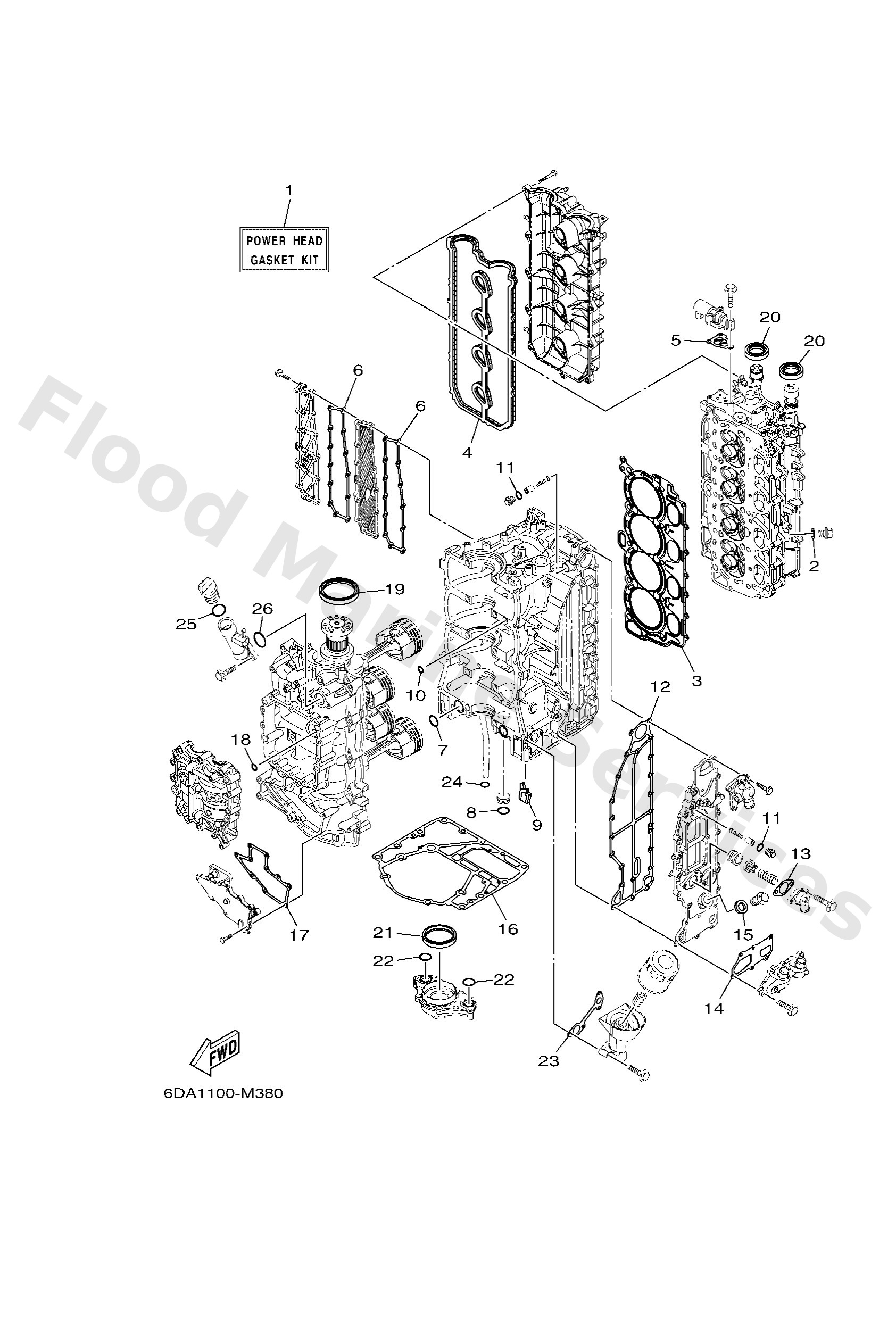

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6DAW000101
Power head gasket kit
Loading…
↗
2
9043014115
Gasket (663)
Loading…
↗
3
6DA1118100
Gasket, cylinder head 1
Loading…
↗
4
6DA1119300
Gasket, head cover 1
Loading…
↗
5
6CB1242F00
Gasket, filter
Loading…
↗
6
6DA1535301
Gasket, drain
Loading…
↗
7
9321025552
O-ring (22f)
Loading…
↗
8
9321025647
O-ring (7or)
Loading…
↗
9
6DA1466400
Grommet, water shut
Loading…
↗
10
9321012648
O-ring (7or)
Loading…
↗
11
9321013M63
O-ring (6g8)
Loading…
↗
12
6DA4111401
Gasket, exhaust outer cover
Loading…
↗
13
60V11382A0
Gasket 2
Loading…
↗
14
6DA1138101
Gasket 1
Loading…
↗
15
90201186F1
Washer, plate (22f)
Loading…
↗
16
63P1135103
Gasket, cylinder
Loading…
↗
17
6DA1545101
Gasket, crankcase cover 1
Loading…
↗
18
9321008001
O-ring
Loading…
↗
19
9310285008
Oil seal
Loading…
↗
20
9310238008
Oil seal
Loading…
↗
21
6CB1135500
Seal, cylinder 1
Loading…
↗
23
6DA1347500
Gasket
Loading…
↗
24
9321019MJ3
O-ring
Loading…
↗
25
9321024M79
O-ring
Loading…
↗
26
93210357A3
O-ring
Loading…
↗
