Yamaha Outboard Parts - REPAIR KIT 1 - LZ250DETO (2003) | Flood Marine

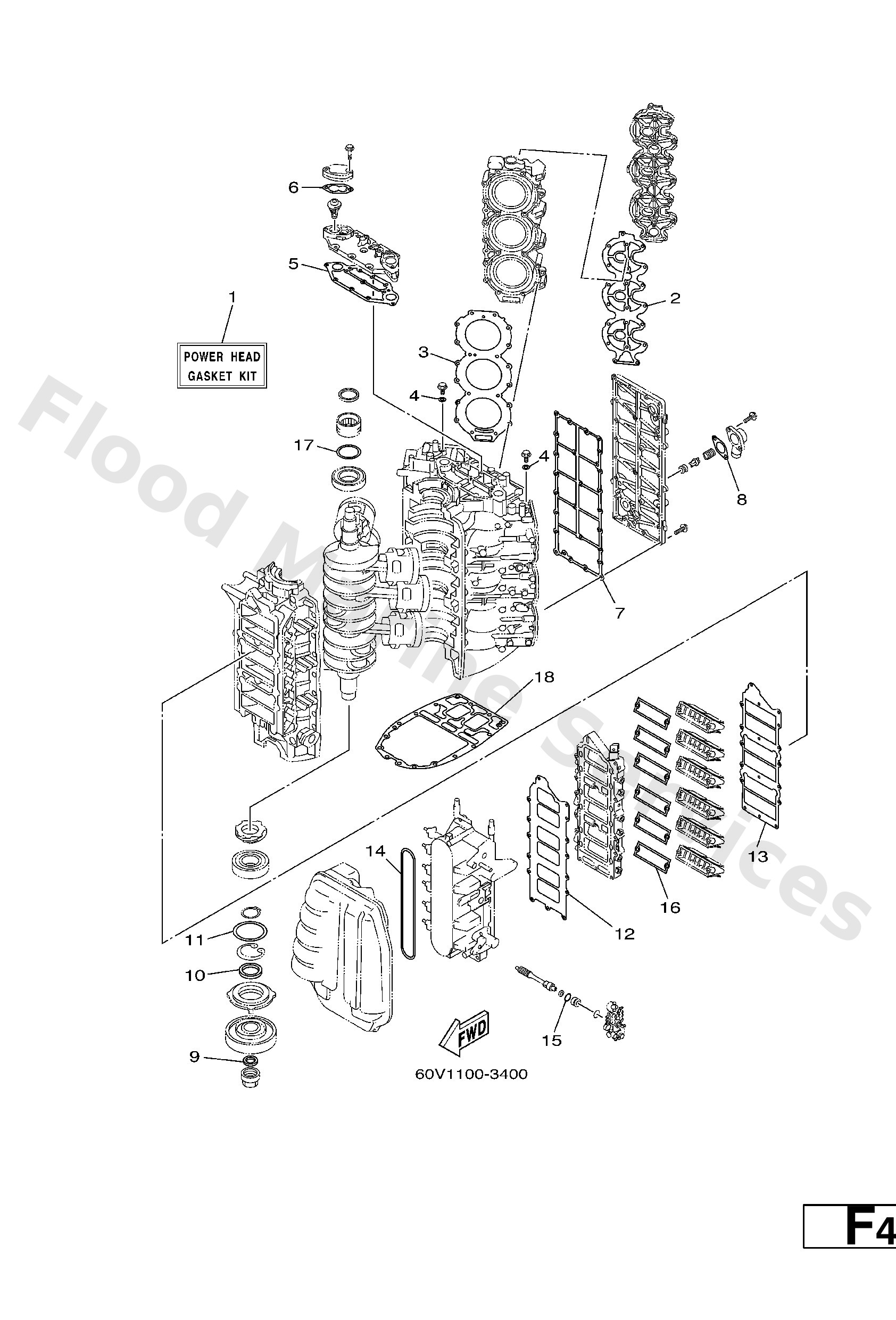

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
60V−W0001−00
Power head gasket kit
Loading…

↗
2
60V−11193−00
Gasket, head cover 1
Loading…

↗
3
60V−11181−00
Gasket, cylinder head 1
Loading…

↗
4
90430−14115
Gasket (663)
Loading…

↗
5
60V−11381−00
Gasket 1
Loading…

↗
6
60V−12414−A0
Gasket, cover
Loading…

↗
7
60V−41112−00
Gasket, exhaust inner cover
Loading…

↗
8
60V−11382−A0
Gasket 2
Loading…

↗
9
93104−22M07
Oil seal(61a)
Loading…

↗
10
93102−40010
Oil seal
Loading…

↗
11
60V−15353−00
Gasket, drain
Loading…

↗
12
60V−13646−00
Gasket, manifold 2
Loading…

↗
13
60V−13645−00
Gasket, manifold 1
Loading…

↗
14
60V−14476−00
Seal
Loading…

↗
15
93210−18MA9
O-ring(61a)
Loading…

↗
16
60V−13621−A0
Gasket, Valve Seat
Loading…

↗
17
60V−11479−00
O-ring
Loading…

↗
18
60V−45113−00
Gasket, upper casing
Loading…

↗
