XF425NSA7 (2019)
REPAIR KIT 1

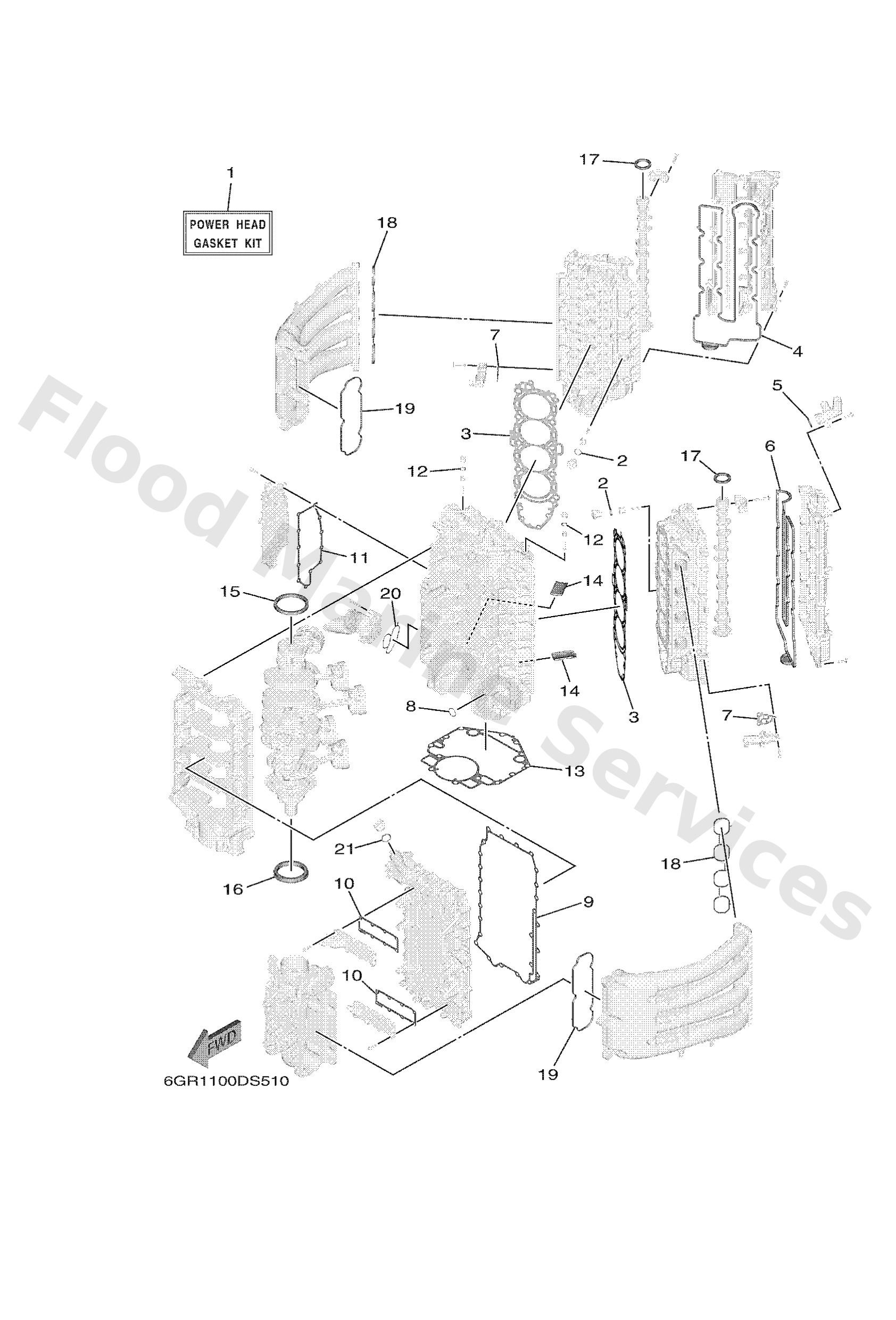

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6GRW000100
Power head gasket kit
Loading…
↗
2
9321019216
O-ring
Loading…
↗
3
6GR1118100
Gasket, cylinder head 1
Loading…
↗
4
6GR1119300
Gasket, head cover 1
Loading…
↗
5
9321028646
O-ring (7or)
Loading…
↗
6
6GR1119400
Gasket, head cover 2
Loading…
↗
7
6CB1242F00
Gasket, filter
Loading…
↗
8
9321026658
O-ring(36y)
Loading…
↗
9
6GR1545100
Gasket, crankcase cover 1
Loading…
↗
10
6GR1131B00
Gasket, cover
Loading…
↗
11
6GR1535300
Gasket, drain
Loading…
↗
12
9321013M63
O-ring (6g8)
Loading…
↗
13
6GR1135100
Gasket, cylinder
Loading…
↗
14
6GR1466400
Grommet, water shut
Loading…
↗
15
9310290004
Oil seal
Loading…
↗
16
9310285010
Oil seal
Loading…
↗
17
9310238008
Oil seal
Loading…
↗
18
6GR1364500
Gasket, manifold 1
Loading…
↗
19
6GR1364600
Gasket, manifold 2
Loading…
↗
20
6GR1347700
Gasket
Loading…
↗
21
9321024M79
O-ring
Loading…
↗
