Z200NETO (2002)
REPAIR KIT 1

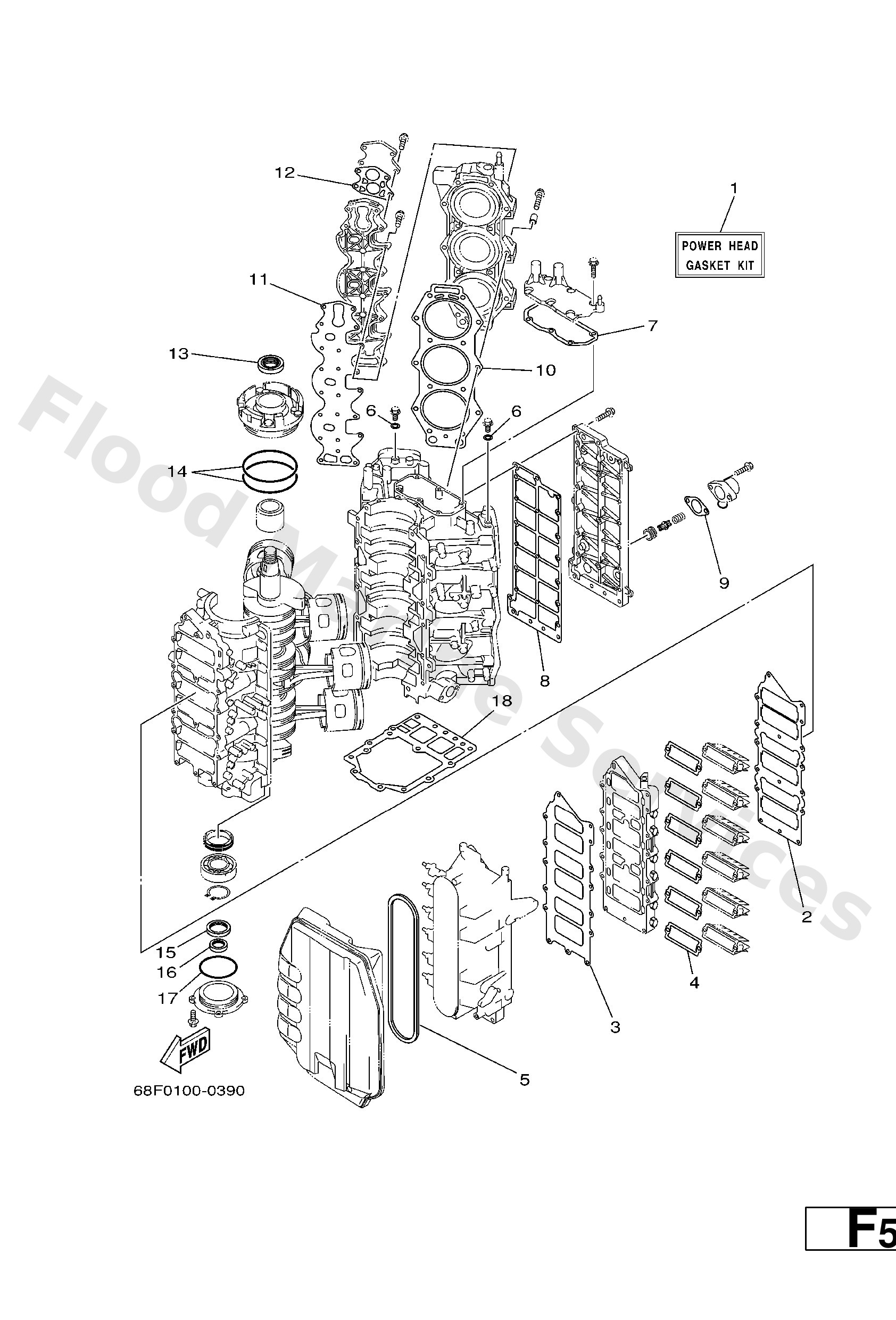

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
68FW000100
Power head gasket kit
Loading…
↗
2
65L--13645--00
Gasket, manifold 1
Loading…
↗
3
65L--13646--00
Gasket, manifold 2
Loading…
↗
4
61A--13621--A0
Gasket, valve seat
Loading…
↗
5
65L--14483--00
Gasket
Loading…
↗
6
90430--14115
Gasket (663)
Loading…
↗
7
68F1138100
Gasket 1
Loading…
↗
8
68F4111400
Gasket, exhaust outer cover
Loading…
↗
9
6G5--11382--A1
Gasket 2
Loading…
↗
10
68F1118100
Gasket, cylinder head 1
Loading…
↗
11
68F1119301
Gasket, head cover 1
Loading…
↗
12
688--12414--A1
Gasket, cover
Loading…
↗
13
93102--40M14
Oil seal(61a)
Loading…
↗
14
93211--04001
O-ring
Loading…
↗
15
9310235M61
Oil seal
Loading…
↗
16
93101--22M15
Oil seal (6e5)
Loading…
↗
17
93210--74M35
O-ring (6e5)
Loading…
↗
18
68F4511300
Gasket, upper casing
Loading…
↗
