Z250FETO (2003)
REPAIR KIT 1

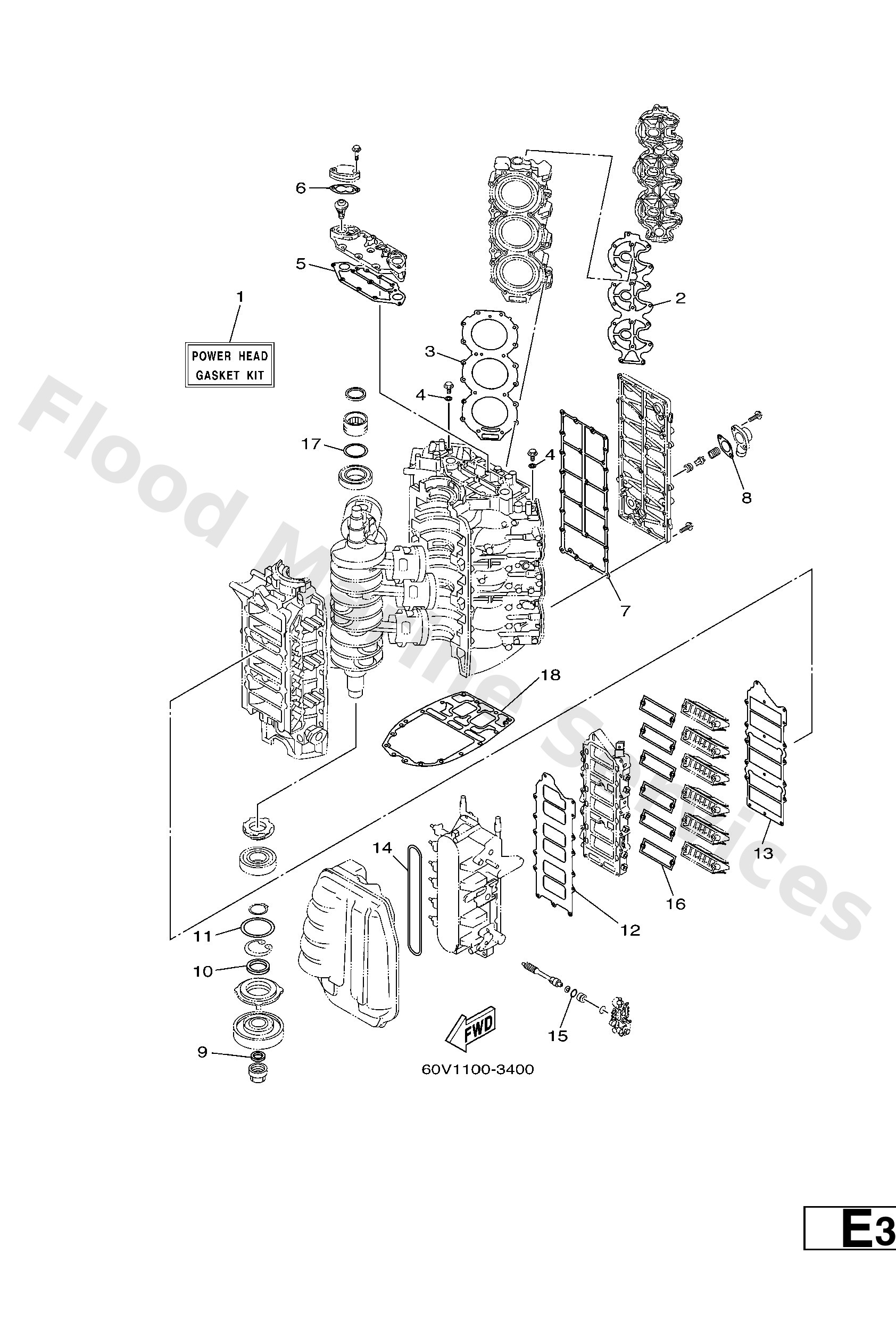

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
60VW000100
Power head gasket kit
Loading…
↗
2
60V1119300
Gasket, head cover 1
Loading…
↗
3
60V1118100
Gasket, cylinder head 1
Loading…
↗
4
9043014115
Gasket (663)
Loading…
↗
5
60V1138100
Gasket 1
Loading…
↗
6
60V12414A0
Gasket, cover
Loading…
↗
7
60V4111200
Gasket, exhaust inner cover
Loading…
↗
8
60V11382A0
Gasket 2
Loading…
↗
9
9310422M07
Oil seal(61a)
Loading…
↗
10
9310240010
Oil seal
Loading…
↗
11
60V1535300
Gasket, drain
Loading…
↗
12
60V1364600
Gasket, manifold 2
Loading…
↗
13
60V1364500
Gasket, manifold 1
Loading…
↗
14
60V1447600
Seal
Loading…
↗
15
9321018MA9
O-ring(61a)
Loading…
↗
16
60V13621A0
Gasket, Valve Seat
Loading…
↗
17
60V1147900
O-ring
Loading…
↗
18
60V4511300
Gasket, upper casing
Loading…
↗
