115CETO (2003)
REPAIR KIT 2

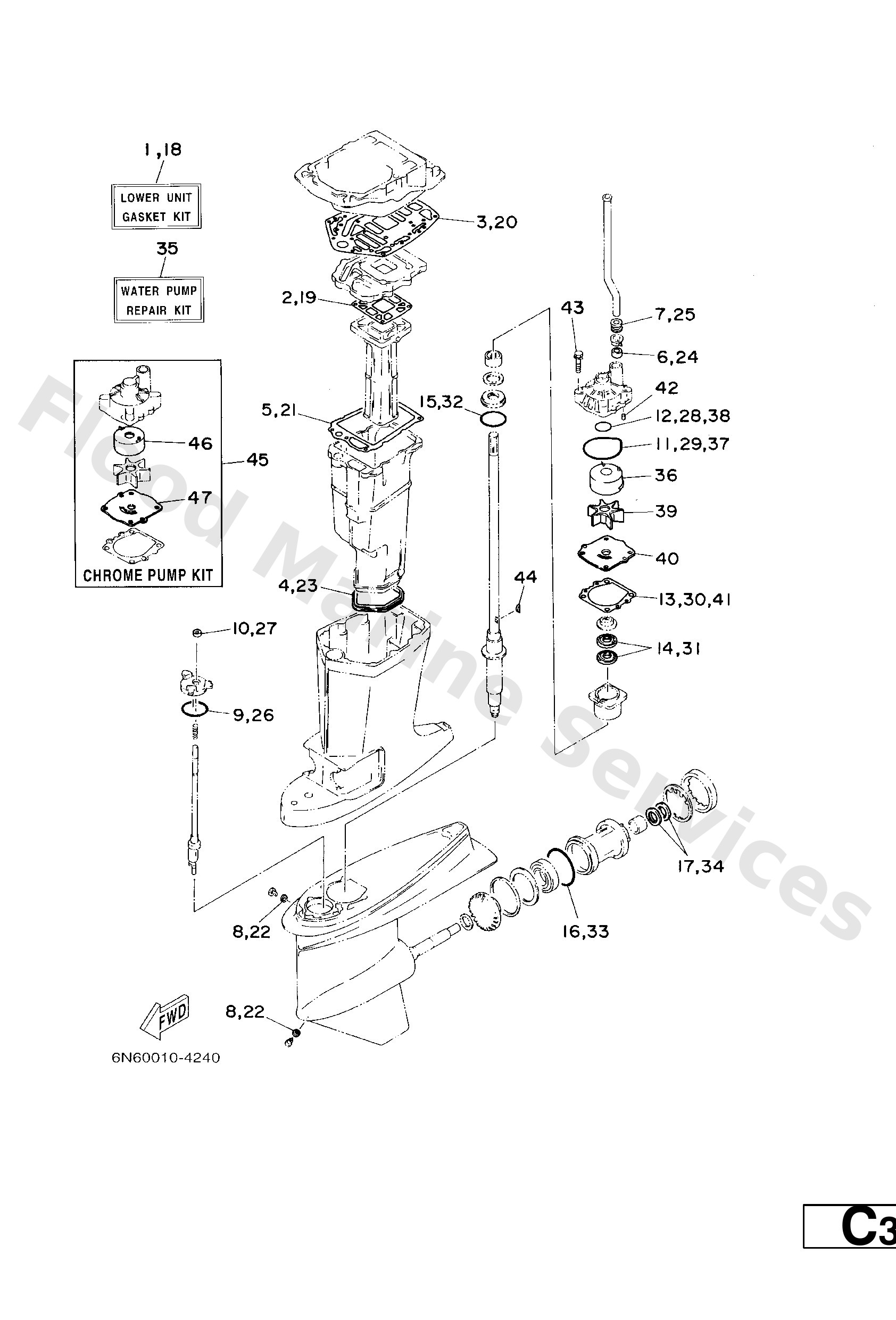

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6E5−W0001−F1
Gasket kit, lower unit
Loading…
↗
2
6E5−41134−A0
Gasket, exhaust manifold
Loading…
↗
3
6G5−45114−A1
Gasket, upper casing
Loading…
↗
4
6E5−45123−00
Gasket, muffler
Loading…
↗
5
6E5−41135−A0
Gasket, exhaust manifold
Loading…
↗
6
6E5−44365−00
Damper, water seal 1
Loading…
↗
7
6E5−44366−00
Damper, water seal 2
Loading…
↗
8
90430−08020
Gasket
Loading…
↗
9
93210−58144
O-ring(47x)
Loading…
↗
10
93106−09014
Oil seal
Loading…
↗
11
93210−86M38
O-ring (6e5)
Loading…
↗
12
93210−37160
O-ring (6g8)
Loading…
↗
13
6E5−44315−A0
Gasket,water pump
Loading…
↗
14
93101−28M16
Oil seal (6e5)
Loading…
↗
15
93210−55M14
O-ring (70e)
Loading…
↗
16
93210−86M39
O-ring (6e5)
Loading…
↗
17
93101−30M17
Oil seal (6e5)
Loading…
↗
18
6F3−W0001−C1
Gasket kit, lower unit
Loading…
↗
19
6G5−41134−A1
Gasket, exhaust manifold
Loading…
↗
35
6N6−W0078−02
Water pump repair kit
Loading…
↗
36
61A−44322−02
Insert, cartridge
Loading…
↗
39
6E5−44352−01
Impeller
Loading…
↗
40
6E5−44323−00
Outer plate, cartridge
Loading…
↗
42
93606−12019
Pin, dowel (614)
Loading…
↗
43
90119−08M14
Bolt, with washer
Loading…
↗
44
90280−04M05
Key, woodruff (6e5)
Loading…
↗
45
6E5−W0078−3A
Chrome pump kit
Loading…
↗
46
6R3−44322−42
Insert, cartridge
Loading…
↗
47
6E5−44323−40
Outer plate, cartridge
