200GETO (2003)
REPAIR KIT 2

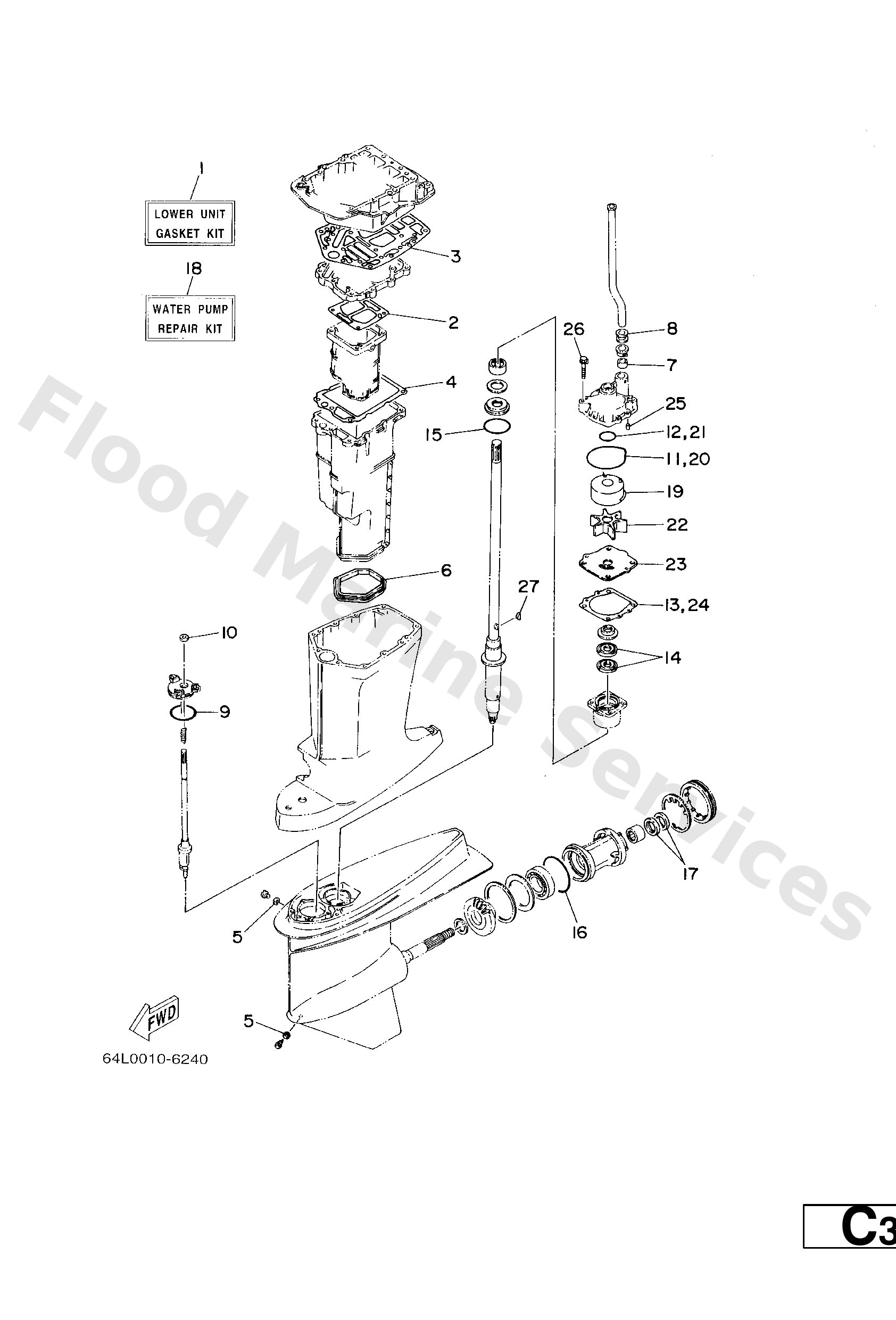

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6G5−W0001−C1
Lower unit gasket kit
Loading…
↗
2
6G5−41134−A1
Gasket, exhaust manifold
Loading…
↗
3
6G5−45114−A1
Gasket, upper casing
Loading…
↗
4
6E5−41135−A0
Gasket, exhaust manifold
Loading…
↗
5
90430−08020
Gasket
Loading…
↗
6
6E5−45123−00
Gasket, muffler
Loading…
↗
7
6E5−44365−00
Damper, water seal 1
Loading…
↗
8
6E5−44366−00
Damper, water seal 2
Loading…
↗
9
93210−58144
O-ring(47x)
Loading…
↗
10
93106−09014
Oil seal
Loading…
↗
11
93210−86M38
O-ring (6e5)
Loading…
↗
12
93210−37160
O-ring (6g8)
Loading…
↗
13
6E5−44315−A0
Gasket,water pump
Loading…
↗
14
93101−28M16
Oil seal (6e5)
Loading…
↗
15
93210−55M14
O-ring (70e)
Loading…
↗
16
93210−97M55
O-ring (6g5)
Loading…
↗
17
93101−30M17
Oil seal (6e5)
Loading…
↗
18
64L−W0078−00
Water pump repair kit
Loading…
↗
19
61A−44322−02
Insert, cartridge
Loading…
↗
22
6E5−44352−01
Impeller
Loading…
↗
23
6G5−44323−00
Outer plate, cartridge
Loading…
↗
25
93606−12019
Pin, dowel (614)
Loading…
↗
26
90119−08M14
Bolt, with washer
Loading…
↗
27
90280−04M05
Key, woodruff (6e5)
Loading…
↗
