250AETO (2002)
REPAIR KIT 2

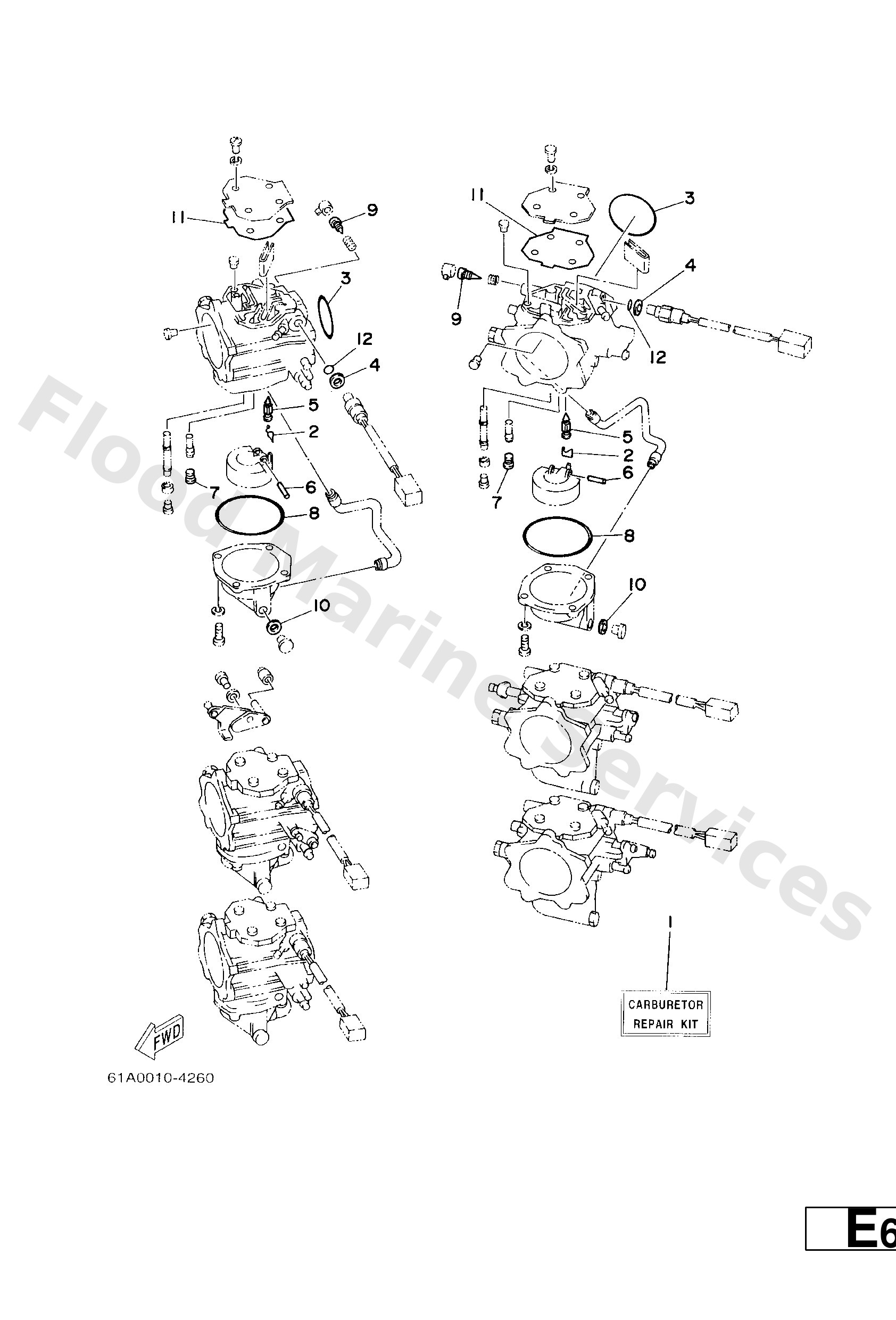

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
61A−W0093−01
Carburetor repair kit
Loading…
↗
2
6E5−14159−00
Clip
Loading…
↗
3
93210−50MA8
O-ring(61a)
Loading…
↗
4
61A−14198−00
Gasket
Loading…
↗
5
6E5−14546−00
Valve, needle
Loading…
↗
6
61A−14386−00
Pin, Float
Loading…
↗
7
61A−14394−00
Valve, Drain
Loading…
↗
8
61A−14384−00
Gasket, float chamber
Loading…
↗
9
6E5−14323−03
Screw, air adjusting
Loading…
↗
10
61A−14995−00
Gasket
Loading…
↗
11
61A−14959−00
Gasket
Loading…
↗
12
61A−14561−00
O-ring
Loading…
↗
