30DMHO (2003)
REPAIR KIT 2

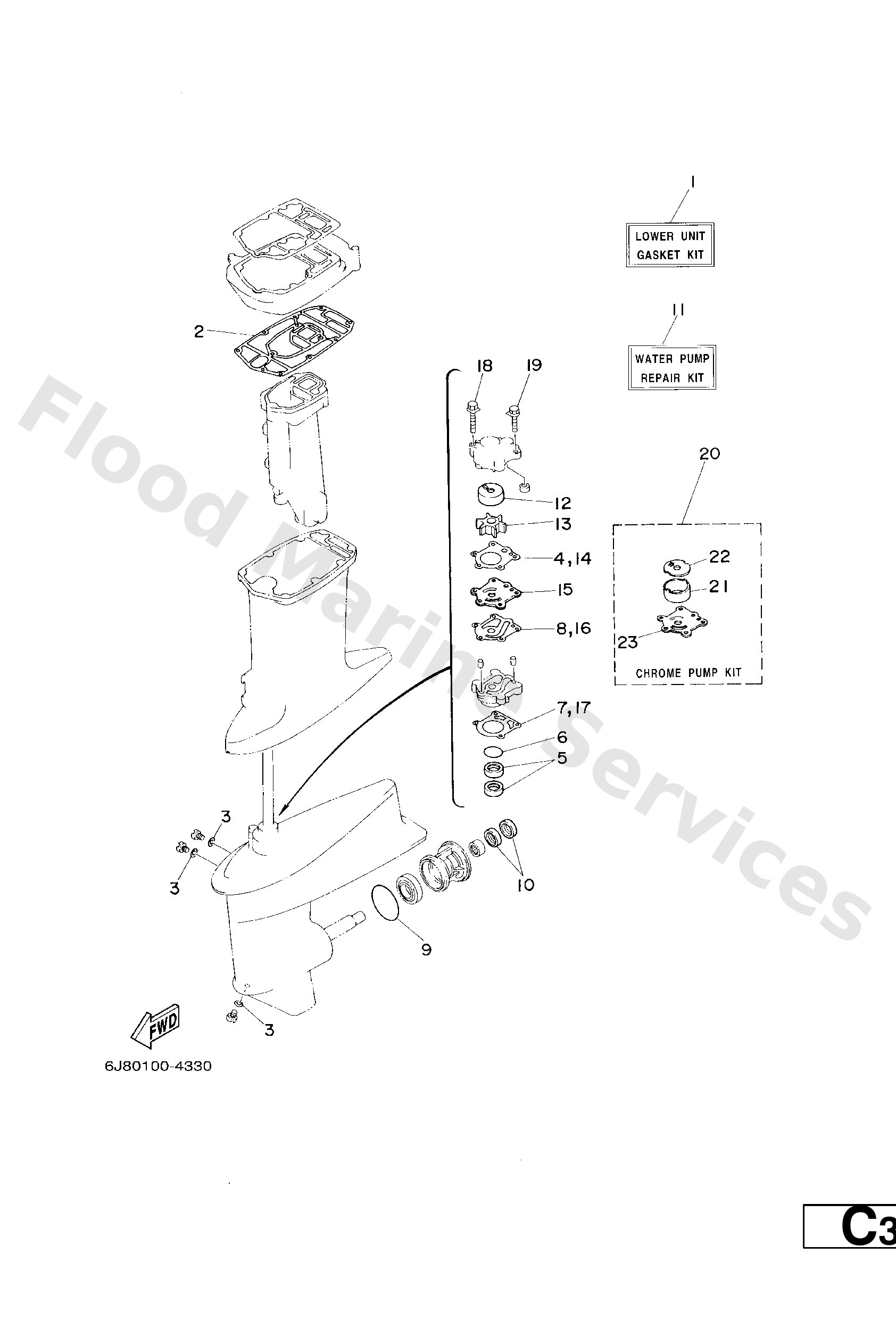

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6J8−W0001−C2
Gasket kit
Loading…
↗
2
6J8−45114−A1
Gasket, upper casing
Loading…
↗
3
90430−08020
Gasket
Loading…
↗
4
663−44315−A0
Gasket,water pump 1
Loading…
↗
5
93101−23070
Oil seal (663)
Loading…
↗
6
93210−41042
O-ring (132)
Loading…
↗
7
663−44316−A0
Gasket,water pump 2
Loading…
↗
8
663−44324−A0
Gasket,cartridge outer plate
Loading…
↗
9
93210−60MA3
O-ring(6j8)
Loading…
↗
10
93101−20M07
Oil seal
Loading…
↗
11
6J8−W0078−A2
Water pump repair kit
Loading…
↗
12
663−44322−00
Insert, cartridge
Loading…
↗
13
6H4−44352−02
Impeller
Loading…
↗
15
663−44323−00
Outer plate, cartridge
Loading…
↗
18
90119−08M13
Bolt, with washer(6h0)
Loading…
↗
19
90119−08M34
Bolt, with washer(6j8)
Loading…
↗
20
6H4−W0078−0A
Chrome pump kit
Loading…
↗
21
670−44322−01
Insert, cartridge
Loading…
↗
22
670−44321−00
Inner plate, cartridge
Loading…
↗
23
670−44323−00
Outer plate, cartridge
Loading…
↗
