40XMH (2016)
REPAIR KIT 2

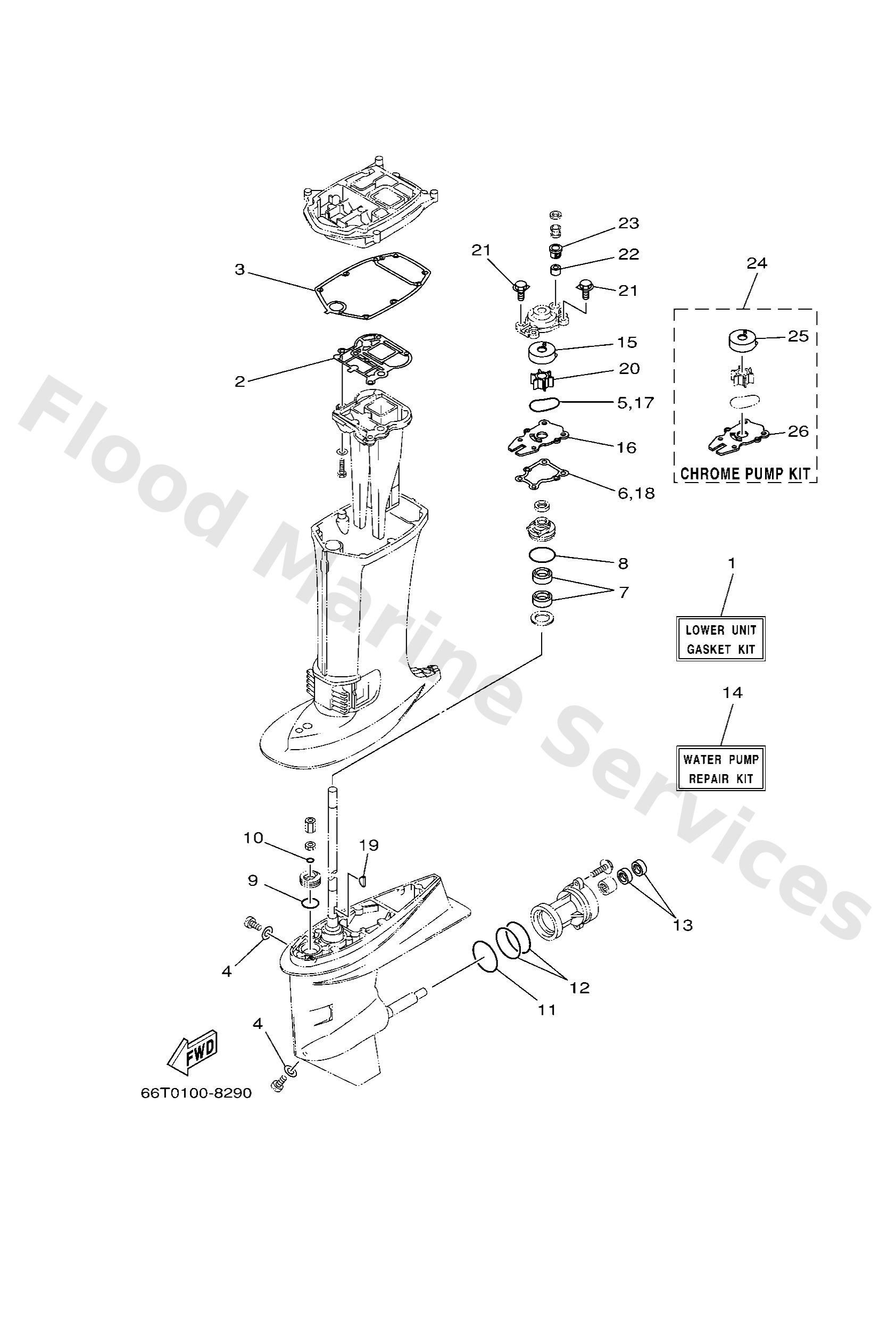

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
66TW000121
Lower unit gasket kit
Loading…
↗
2
66T41133A0
Gasket, exhaust manifold 1
Loading…
↗
3
66T45114A0
Gasket, upper casing
Loading…
↗
4
9043008003
Gasket
Loading…
↗
5
9321059MG7
O-ring
Loading…
↗
6
63D4431600
Gasket, water pump
Loading…
↗
7
9310122M60
Oil seal
Loading…
↗
8
9321048001
O-ring
Loading…
↗
9
9321033MG4
O-ring
Loading…
↗
10
9321006ME6
O-ring
Loading…
↗
11
9321069MG6
O-ring
Loading…
↗
12
9321074MG5
O-ring (xea)
Loading…
↗
13
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
14
66TW007800
Water pump repair kit
Loading…
↗
15
63D4432200
Insert, cartridge
Loading…
↗
16
66T4432300
Outer plate, cartridge
Loading…
↗
19
9028003M03
Key, woodruff (697)
Loading…
↗
20
6H44435202
Impeller
Loading…
↗
21
9011908M15
Bolt, with washer(62w)
Loading…
↗
22
6634436600
Damper, water seal 2
Loading…
↗
23
63D4431200
Cover, water pump housing
Loading…
↗
24
66TW00780A
Chrome pump kit
Loading…
↗
25
63D4432240
Insert, cartridge
Loading…
↗
26
66T4432340
Outer plate, cartridge
Loading…
↗
