50HEDO (2002)
REPAIR KIT 2

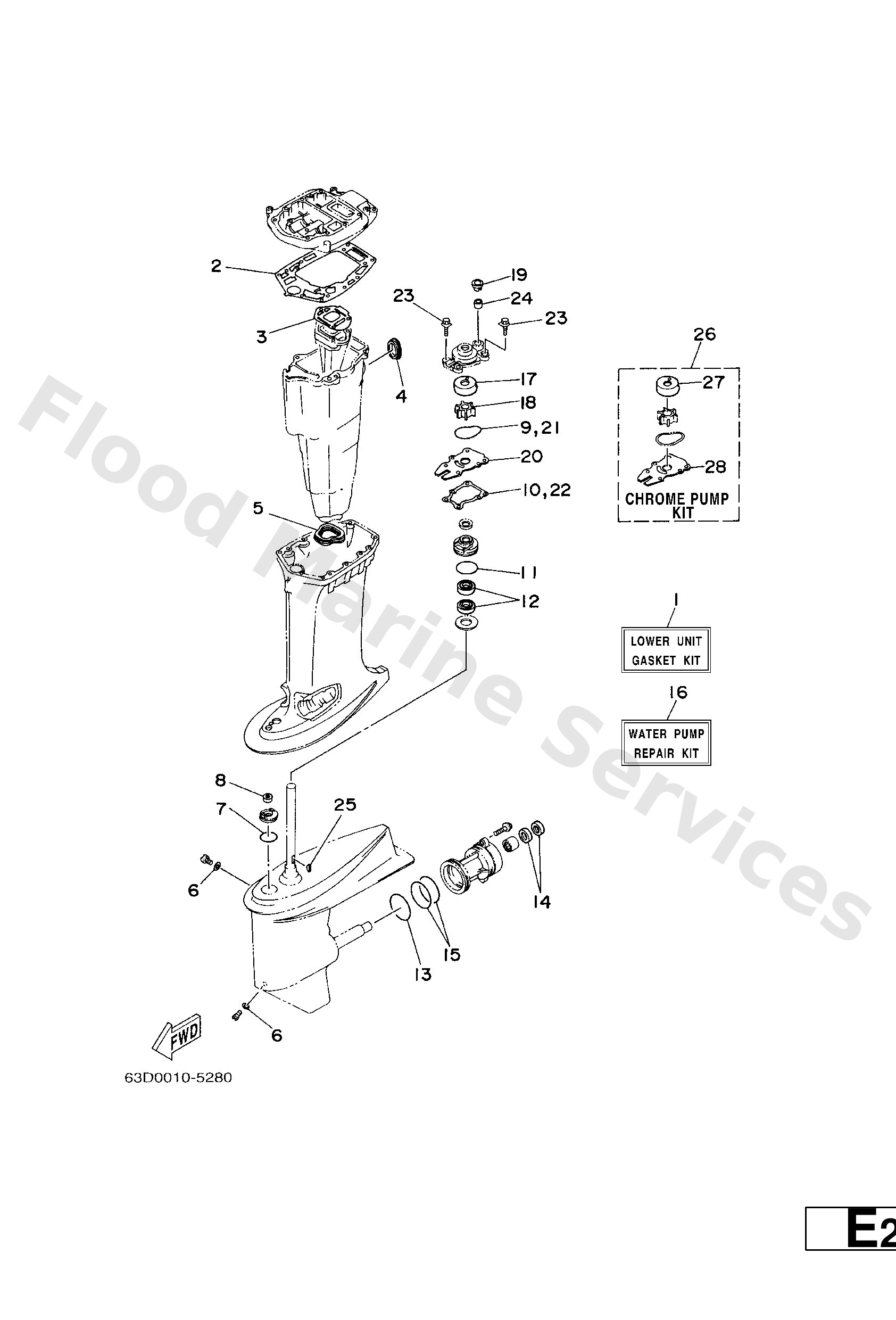

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
63DW000120
Lower unit gasket kit
Loading…
↗
2
63D45114A0
Gasket, upper casing
Loading…
↗
3
6H441134A0
Gasket, exhaust manifold
Loading…
↗
4
6H34512700
Seal 1
Loading…
↗
5
63D4512300
Gasket, muffler
Loading…
↗
6
9043008020
Gasket
Loading…
↗
7
9321033MG4
O-ring
Loading…
↗
8
9310609014
Oil seal
Loading…
↗
9
9321059MG7
O-ring
Loading…
↗
10
63D4431600
Gasket, water pump
Loading…
↗
11
9321048MG8
O-ring
Loading…
↗
12
9310125M57
Oil seal
Loading…
↗
13
9321069MG6
O-ring
Loading…
↗
14
9310122M00
Oil seal (22x36x6-663)
Loading…
↗
15
9321074MG5
O-ring (xea)
Loading…
↗
16
63DW007801
Water pump repair kit
Loading…
↗
17
63D4432200
Insert, cartridge
Loading…
↗
18
6H34435200
Impellar
Loading…
↗
19
63D4431200
Cover, water pump housing
Loading…
↗
20
63D4432300
Outer plate, cartridge
Loading…
↗
23
9011908M15
Bolt, with washer(62w)
Loading…
↗
24
6634436600
Damper, water seal 2
Loading…
↗
25
9028003024
Key, woodruff(662)
Loading…
↗
26
63DW00780A
Chrome pump kit
Loading…
↗
27
63D4432240
Insert, cartridge
Loading…
↗
28
63D4432340
Outer plate, cartridge
Loading…
↗
