70BETO (2010)
REPAIR KIT 2

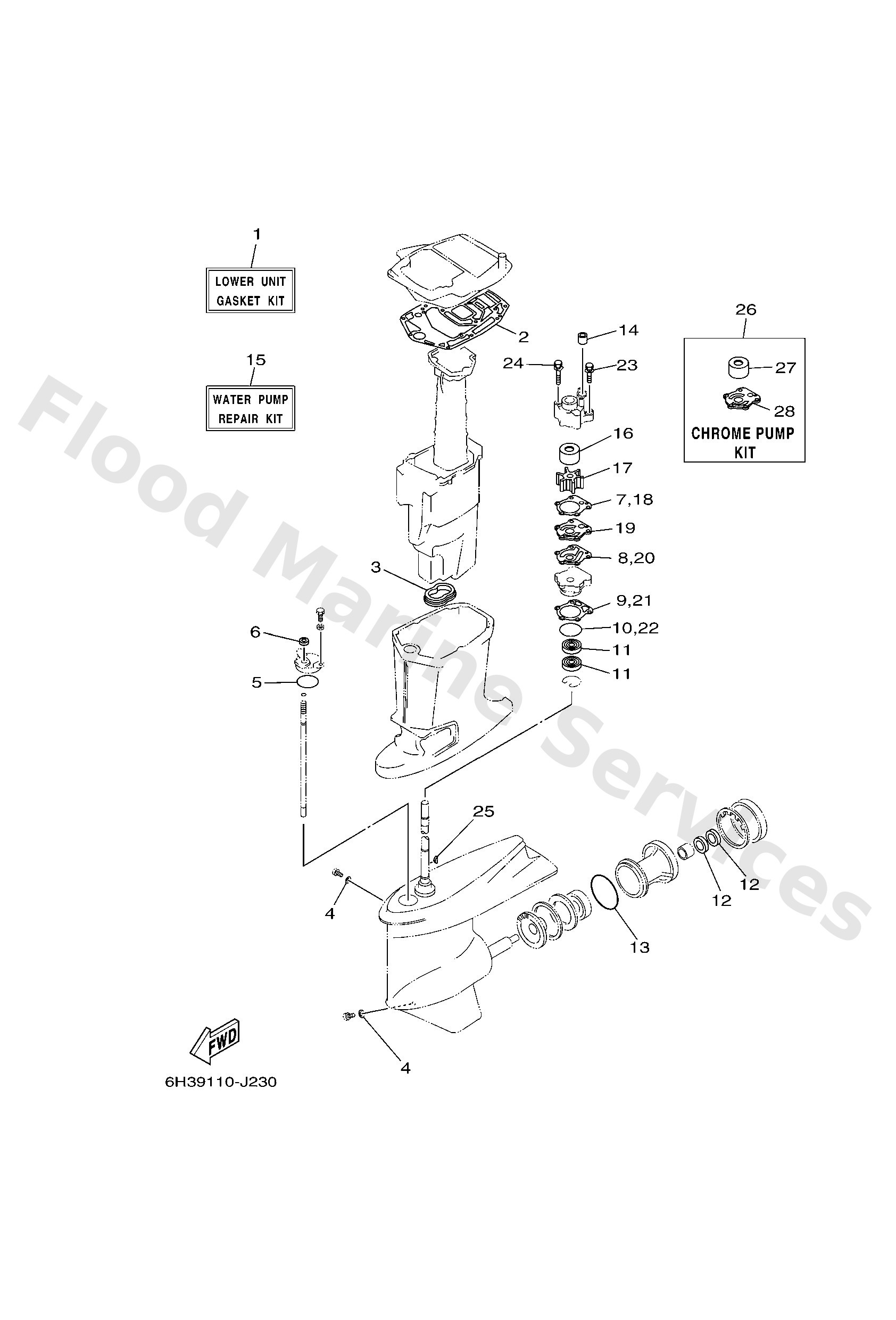

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
6H2W000120
Lower unit gasket kit
Loading…
↗
2
6H345114A1
Gasket, upper casing
Loading…
↗
3
6H34512300
Gasket, muffler
Loading…
↗
4
9043008020
Gasket
Loading…
↗
5
9321049046
O-ring (620)
Loading…
↗
6
9310609014
Oil seal
Loading…
↗
7
68844315A0
Gasket,water pump 1
Loading…
↗
8
68844324A0
Gasket,cartridge 0uter plate
Loading…
↗
9
68844316A0
Gasket,water pump 2
Loading…
↗
10
9321046044
O-ring
Loading…
↗
11
9310125M03
Oil seal
Loading…
↗
13
9321085M97
O-ring(6h1)
Loading…
↗
14
6634436600
Damper, water seal 2
Loading…
↗
15
692W007802
Water pump repair kit
Loading…
↗
16
6884432200
Insert, cartridge
Loading…
↗
17
6884435203
Impeller
Loading…
↗
19
6884432300
Outer plate, cartridge
Loading…
↗
23
9011908M13
Bolt, with washer(6h0)
Loading…
↗
24
9011908M16
Bolt, with washer(6h0)
Loading…
↗
25
9028004M04
Key, woodruff (688)
Loading…
↗
26
6H3W00781B
Chrome pump kit
Loading…
↗
27
69D4432200
Insert, cartridge
Loading…
↗
28
6884432340
Outer plate, cartridge
Loading…
↗
