9.9FMH (2023)
REPAIR KIT 2

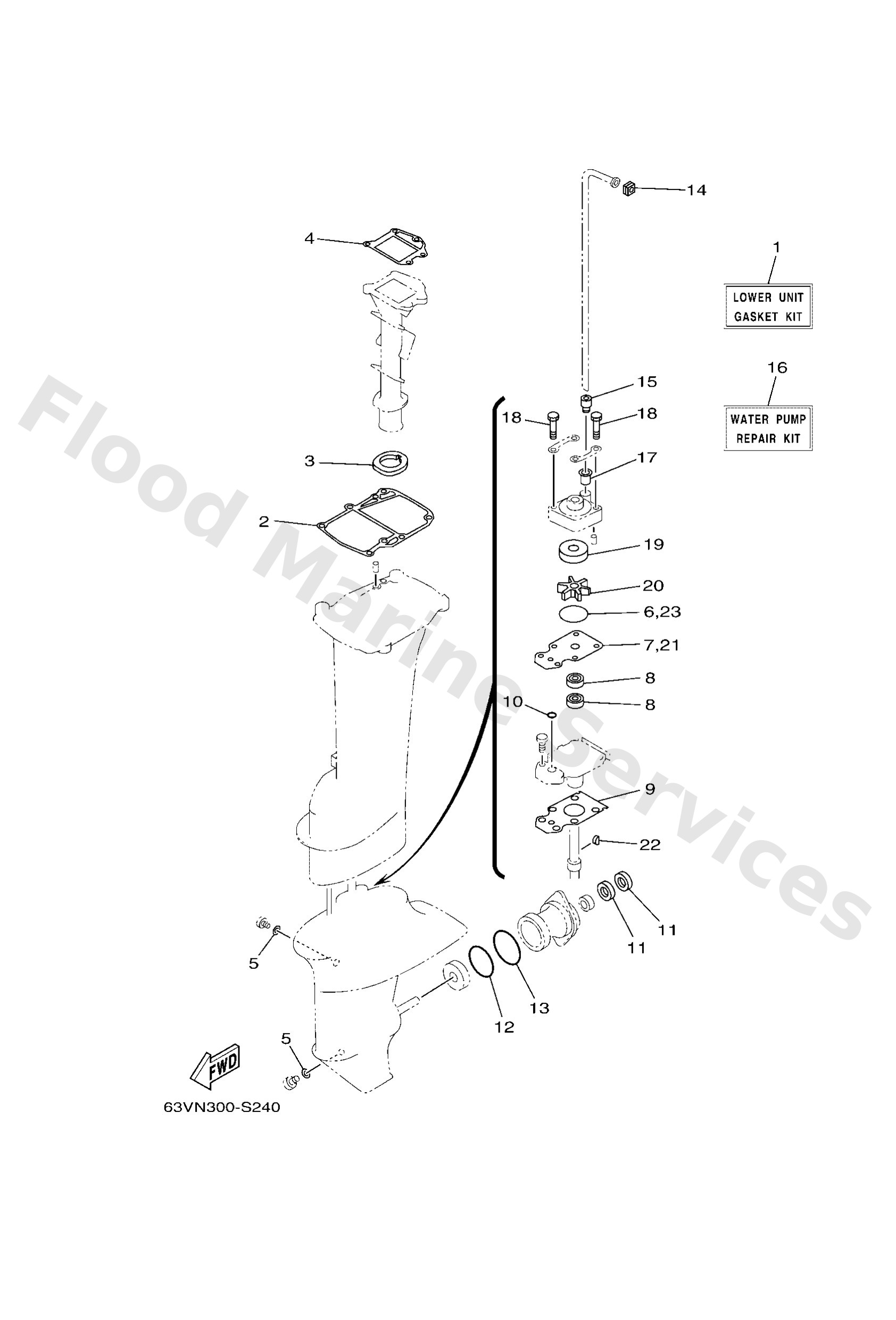

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
63VW000123
Lower unit gasket kit
Loading…
↗
2
63V45113A1
Gasket, upper casing
Loading…
↗
3
63V4113501
Gasket, exhaust manifold
Loading…
↗
4
63V41133A1
Gasket, exhaust manifold 1
Loading…
↗
5
9043008003
Gasket
Loading…
↗
6
9321044398
O-ring(55x)
Loading…
↗
7
63V4432300
Outer plate, cartridge
Loading…
↗
8
9310120048
Oil seal (20x30x6-648)
Loading…
↗
9
63V45315A0
Packing, lower casing
Loading…
↗
10
9321006ME6
O-ring
Loading…
↗
11
9310117054
Oil seal (17x30x6-650)
Loading…
↗
12
9321057M09
O-ring (683)
Loading…
↗
13
9321056M80
O-ring(6j8)
Loading…
↗
14
63V4436511
Damper, water seal 1
Loading…
↗
15
63V4436801
Rubber, water seal 4
Loading…
↗
16
63VW007804
Water pump repair kit
Loading…
↗
17
6474436601
Damper, water seal 2
Loading…
↗
18
97D9508045
Bolt, hexagon deep recess
Loading…
↗
19
63V4432200
Insert, cartridge
Loading…
↗
20
63V4435201
Impeller
Loading…
↗
22
63V4433800
Key, woodruff
Loading…
↗
