E40XMH (2003)
REPAIR KIT 2

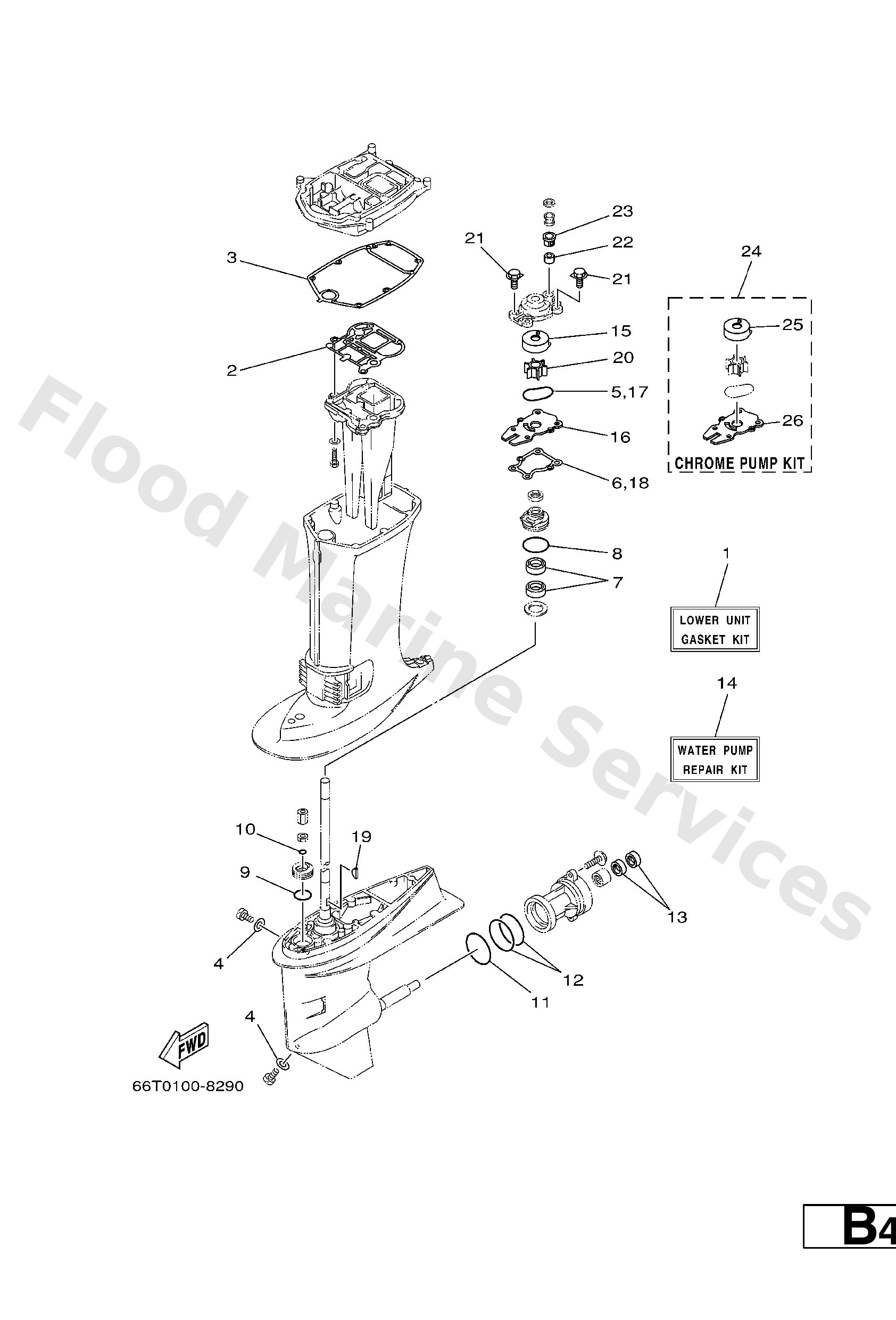

Diagram: REPAIR KIT 2
Parts List
Reference
Description
Price
1
66T−W0001−20
Lower unit gasket kit
Loading…
↗
2
66T−41133−A0
Gasket, exhaust manifold 1
Loading…
↗
3
66T−45114−A0
Gasket, upper casing
Loading…
↗
4
90430−08020
Gasket
Loading…
↗
5
93210−59MG7
O-ring
Loading…
↗
6
63D−44316−00
Gasket, water pump
Loading…
↗
7
93101−22M60
Oil seal
Loading…
↗
8
93210−48MG8
O-ring
Loading…
↗
9
93210−33MG4
O-ring
Loading…
↗
10
93210−06ME6
O-ring
Loading…
↗
11
93210−69MG6
O-ring
Loading…
↗
12
93210−74MG5
O-ring (xea)
Loading…
↗
13
93101−22M00
Oil seal (22x36x6-663)
Loading…
↗
14
66T−W0078−00
Water pump repair kit
Loading…
↗
15
63D−44322−00
Insert, cartridge
Loading…
↗
16
66T−44323−00
Outer plate, cartridge
Loading…
↗
19
90280−03M03
Key, woodruff (697)
Loading…
↗
20
6H4−44352−02
Impeller
Loading…
↗
21
90119−08M15
Bolt, with washer(62w)
Loading…
↗
22
663−44366−00
Damper, water seal 2
Loading…
↗
23
63D−44312−00
Cover, water pump housing
Loading…
↗
24
66T−W0078−0A
Chrome pump kit
Loading…
↗
25
63D−44322−40
Insert, cartridge
Loading…
↗
26
66T−44323−40
Outer plate, cartridge
Loading…
↗
